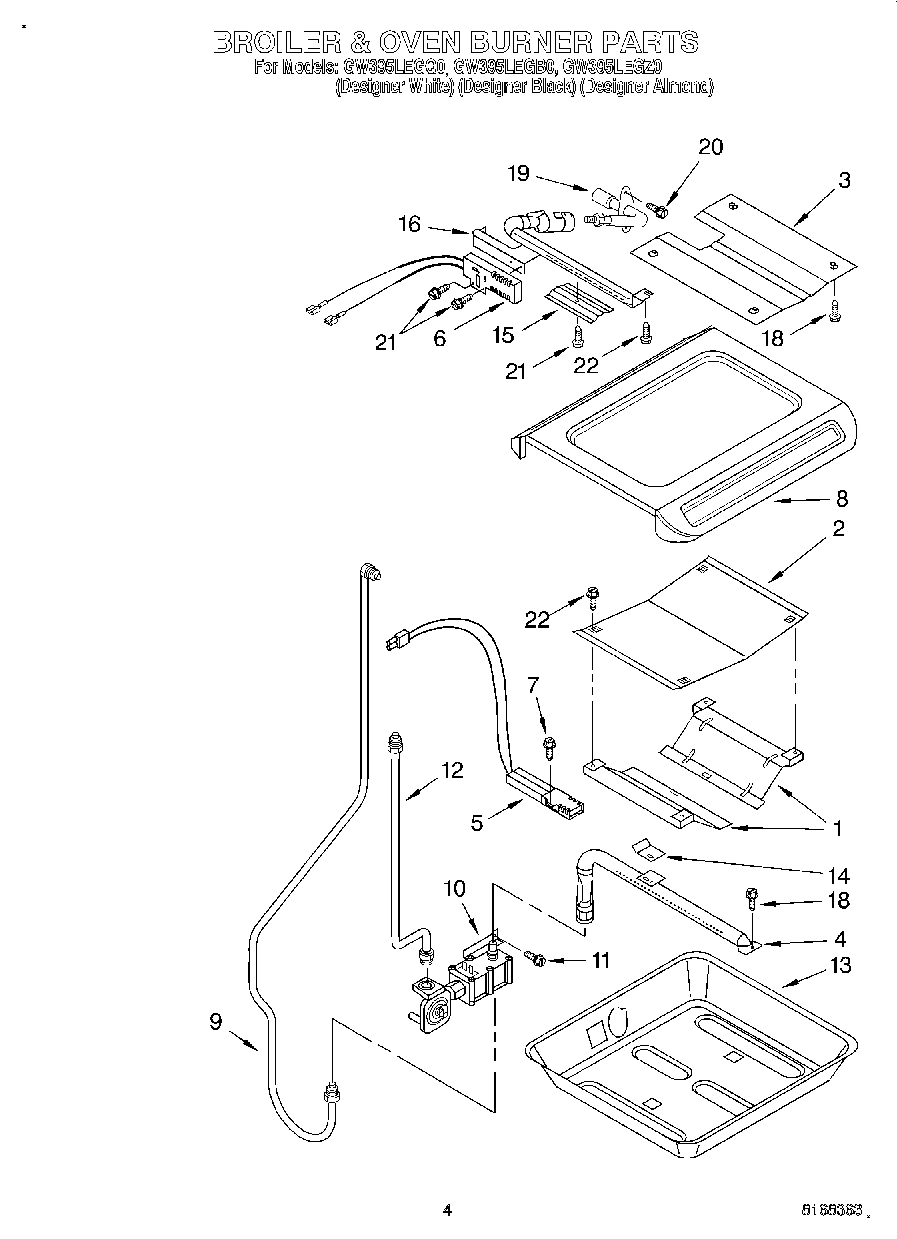

GW395LEGQ0 04 – BROILER AND OVEN BURNER

Products

PositionProduct
1Shield, Oven (2)
2Flame Shield, Bake
3Trim, Side (2)
4Burner, Bake
6WP9782065 Whirlpool Oven Igniter
8Pan, Oven Bottom
9Tubing, Broil
10WP9755424 Whirlpool Gas Valve
11Screw. 1/4-20 x 1/2 (4)
12Tubing, Valve
13Pan Support, Bake
14Bracket, Bake
15Deflector, Broil
16Burner, Broil
18Screw, 10-24 x 1/2
19Fitting, Broiler
20WP4159387 Whirlpool Compactor Screw
21Screw
22Screw, 10 x 3/8
