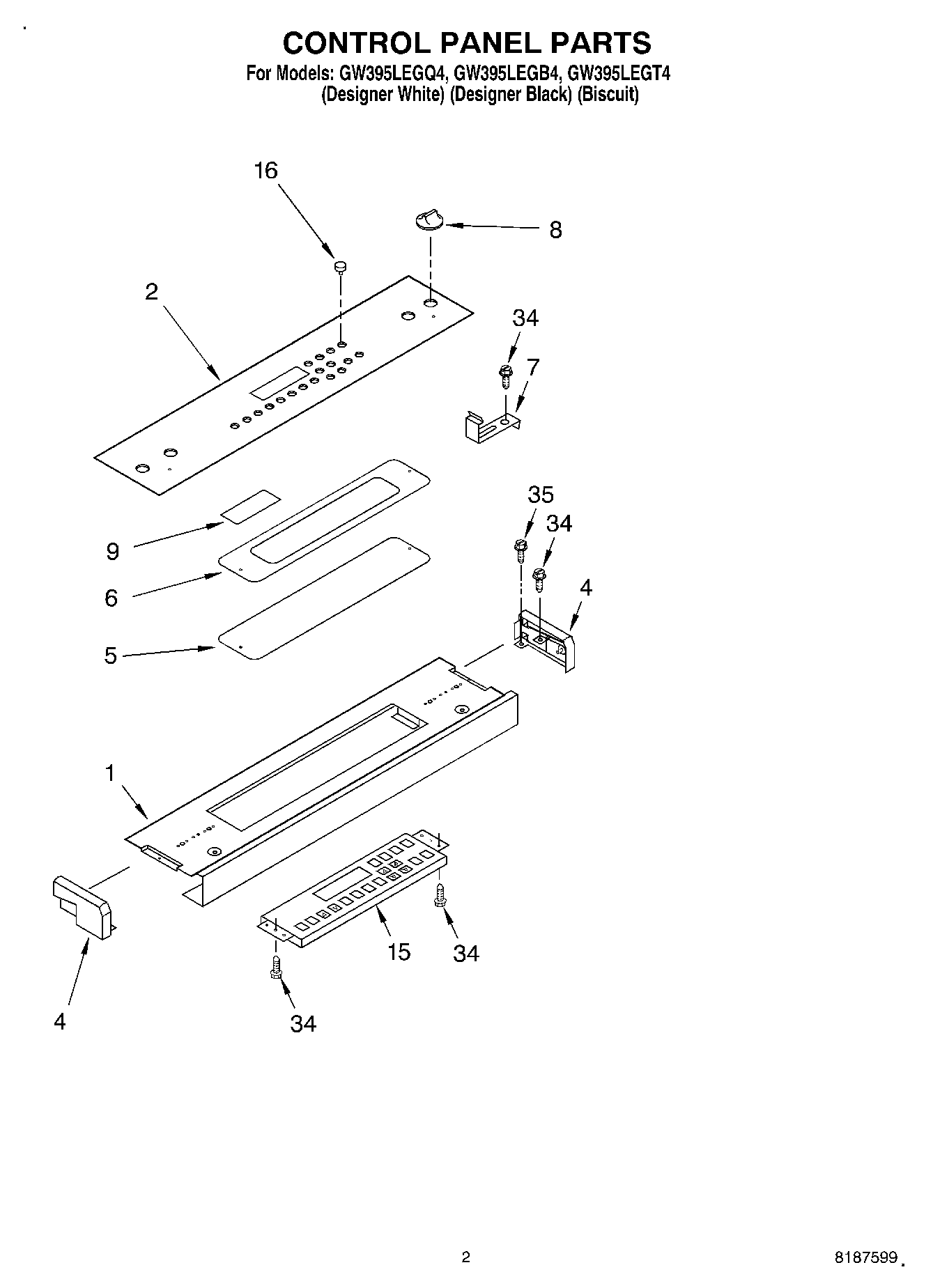

GW395LEGT4 02 – CONTROL PANEL

GW395LEGT4 02 – CONTROL PANEL

Written by

in

GW395LEGT4 02 – CONTROL PANEL

Products

PositionProduct
1Panel, Control (Black)
1Panel, Control (Biscuit)
1Panel, Control
2Glass-Console (White)
2Glass-Console (Black)
2Glass-Console (Biscuit)
4End Cap Left (Black)
4(End Cap Right) (Black)
4814562 Whirlpool Oven Endcap Panel (Left & Right)
4(End Cap Right) (Biscuit)
4End Cap Left (Biscuit)
5Gasket, Cover
6Cover, Control
7Clip, Glass (2)
8W10861812 Whirlpool Knob Assembly
8WP3187767 Whirlpool Knob
8Knobs, Control (4) (Biscuit)
9Label-WPSI Control
15Control, Range
16Knob, Timer (17) (White)
16Knob, Timer (17) (Biscuit)
16Knob, Timer (17) (Black)
34Screw
34WP4159387 Whirlpool Compactor Screw
35WP3387230 Whirlpool Screw
