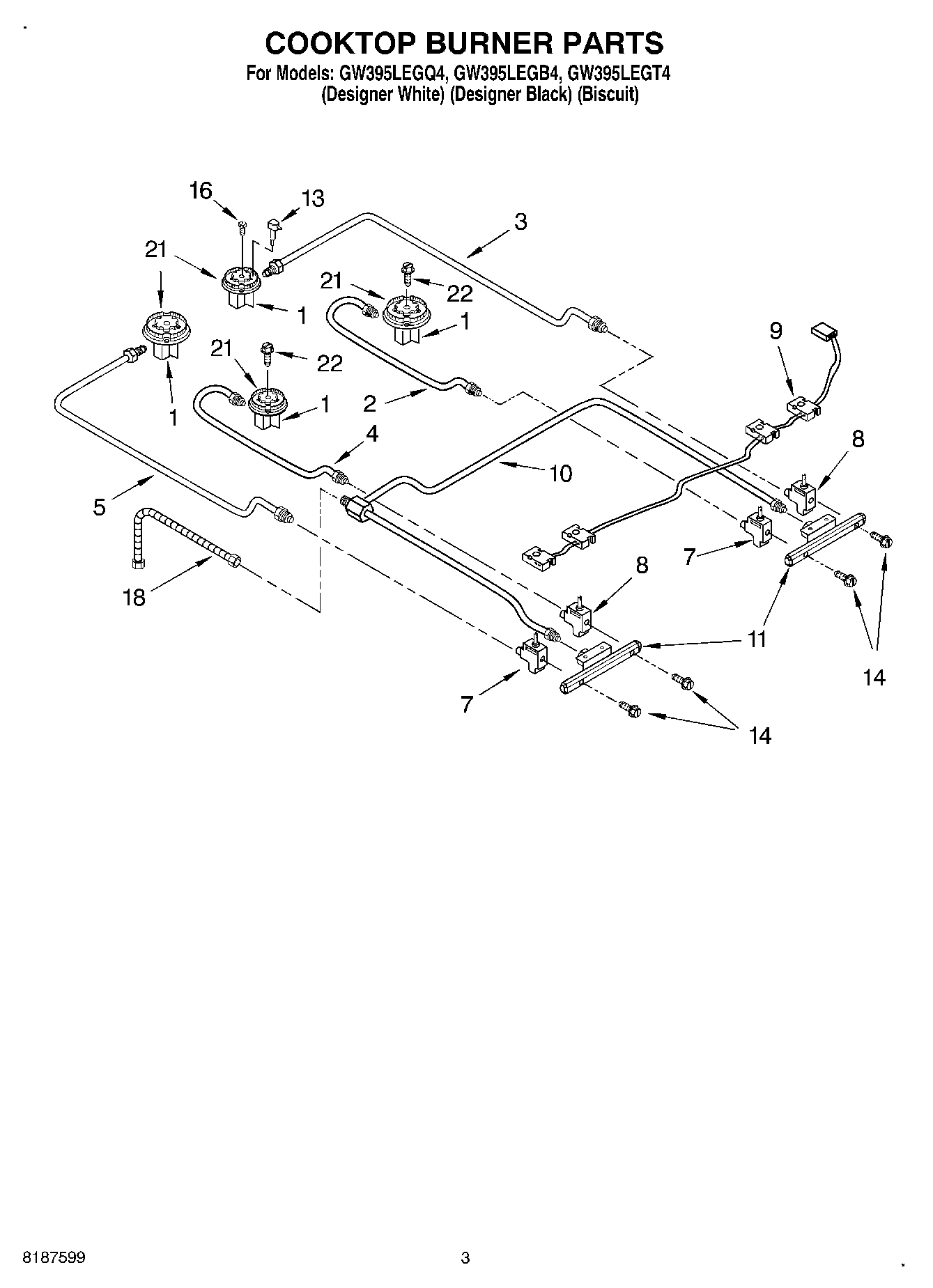

GW395LEGT4 03 – COOKTOP BURNER

Products

Position	Product
1	Burner Base w/Orifice (Large (2))
1	Orifice Holder (Includes Orific & Ignitor) (Auxi)
2	Tubing, Burner (RF)
3	Tubing, Burner (RR)
4	Tubing, Burner (LF)
5	Tubing, Burner (LR)
7	Valve, Burner Small (2)
8	Valve, Burner Large (2)
9	Spark Switch & Harness Assembly
10	Tube, Manifold
11	Manifold (Right Hand)
11	Manifold (Left Hand)
13	WP9754215 Whirlpool Surface Igniter
14	Bolt (Gas Valve)
16	WP9753928 Whirlpool Orifice Assembly
16	WP9753929 Whirlpool Orifice
18	Tubing, Flex
21	WP4455979 Whirlpool Range Small Burner Head
21	WP4455981 Whirlpool Burner Head
22	WPW10067840 Whirlpool Screw
