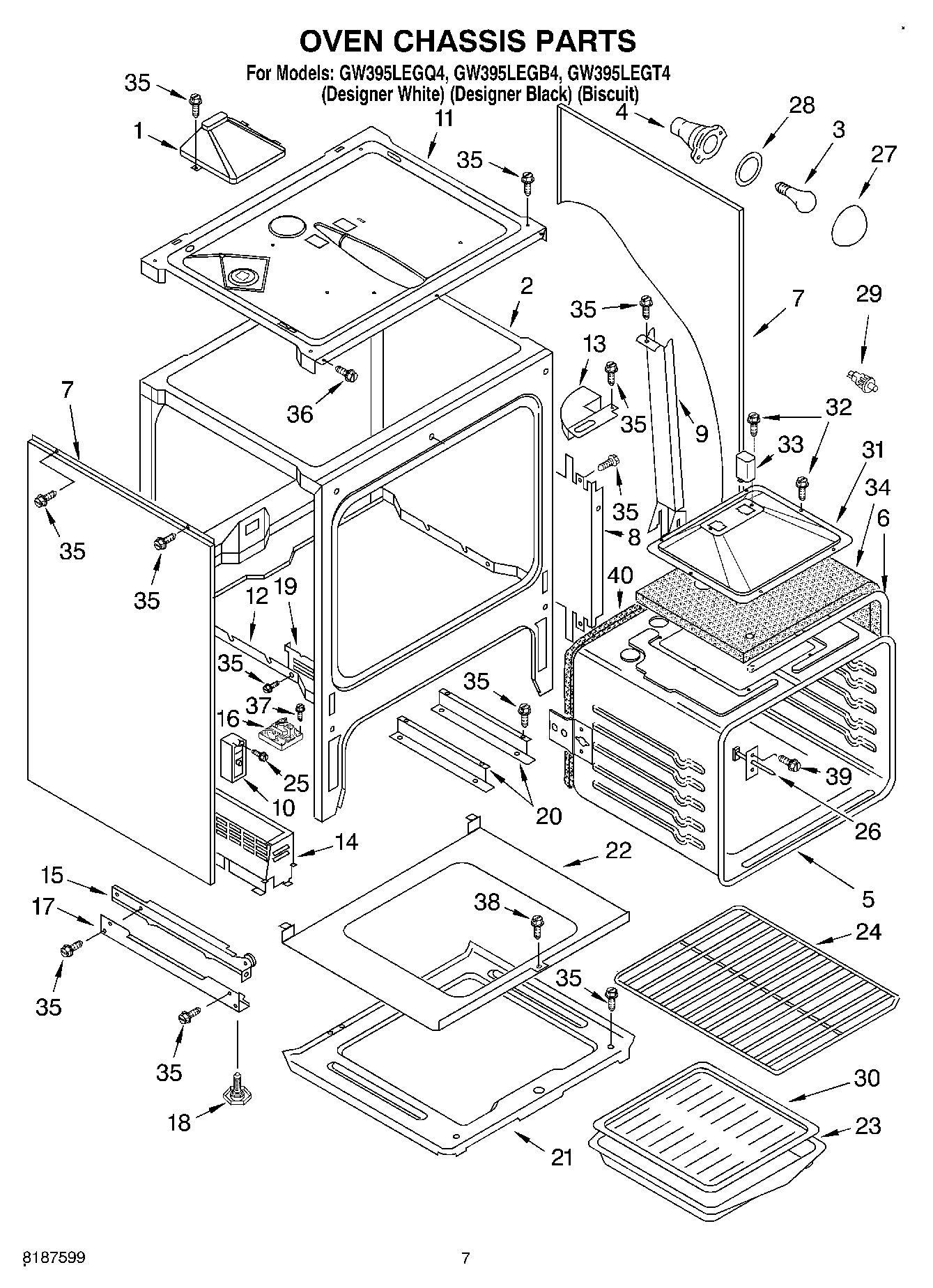

GW395LEGT4 06 – OVEN CHASSIS

Products

Position	Product
1	Vent, Burner Box
2	Chassis, Front
3	RANGE ONLY 40W 120V APPL BULB
4	W11594027 Whirlpool Range Oven Light Socket
5	Oven Liner
6	Gasket, Oven
7	Body, Side (Black)
7	Body, Side (White)
7	Body, Side (Biscuit)
8	Shield, Insulation
9	Duct, Side Fan
10	WP8053421 Whirlpool Oven Spark Module
11	Burner Box
12	Retainer, Insulation
13	Duct, Top
14	Support, Fan
15	Rail, Drawer (Right)
15	Drawer Rail, Left
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
20	Support Rail
21	Shield
22	Plate, Reflector
23	4396923 Whirlpool Broil Pan Set Gray Porcelain
24	Rack, Standard
25	Screw
26	Sensor
27	WP9781049 Whirlpool Light Lens
28	WP3184533 Whirlpool Range Light Lens Gasket
29	Door Switch (Oven Light)
31	Vent, Burner Box
32	Screw, 10-24 x 1/2
33	Extension, Vent Box
34	Insulation, Wrap
35	WP4159387 Whirlpool Compactor Screw
36	Screw, (2)
37	Screw, (3) No.8 x 1“
38	Screw, 10-16 x 1
39	Screw
40	Insulation, Rear
