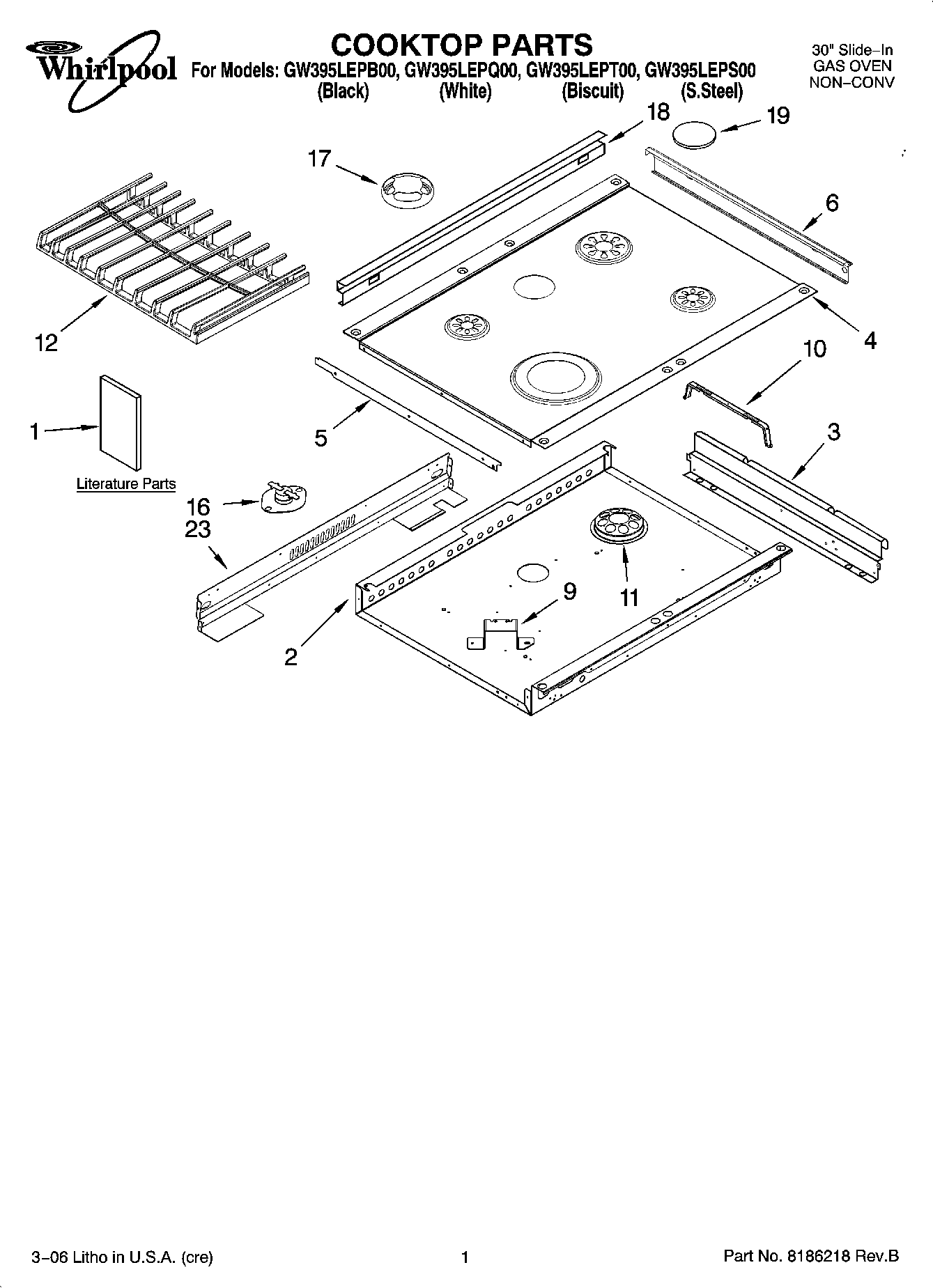

GW395LEPS00 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions
1Tech Sheet
1Anti-Tip Instruct.
1Safe Cooking Tips
1Use & Care Guide
2Burner Box
3Bracket, Mounting
4Cooktop (White)
4Cooktop (Biscuit)
4Cooktop (Black)
5Wall, Side Cktp (White)
5Wall, Side Cktp (Biscuit)
5Wall, Side Cktp (Black)
6Trim-CkTop, SI (White LH)
6TRIM, COOKTOP (LEFT) (BISCUIT)
6TRIM, COOKTOP (RIGHT) (BISCUIT)
6Trim-CkTop, SI (S.Steel LH)
6Trim-CkTop, SI (Black LH)
6Trim-CkTop, SI (White RH)
6Trim-CkTop, SI (S.Steel RH)
6Trim-CkTop, SI (Black RH)
9WP12990527 Whirlpool Microwave Screw
9Bracket, Burner
10WP9756821 Whirlpool Support
10WP4449809 Whirlpool Screw
11Dome Cap, Vent
12Grate, Burner (Black (LH))
12Grate, Burner (Espresso (LH))
12Grate, Burner (Mouse Grey (LH))
12Grate, Burner (Black (RH))
12Grate, Burner (Espresso (RH))
12Grate, Burner (Mouse Grey (RH))
16WP9759944 Whirlpool Thermostat
17Vent, Center (White)
17Vent, Center (Black)
17Vent, Center (Biscuit)
18Trim, Cooktop Rear (S.Steel)
18W10491985 Whirlpool Screw
18Trim, Cooktop Rear (Black)
18Trim, Cooktop Rear (White)
18Trim. Cooktop Rear (Biscuit)
19WPL 9753939EP
19WP3191905 Whirlpool Burner Cap
19Cap, Burner 6K (1) (Gray)
19WP3191898 Whirlpool Surface Burner Cap Black
19WPL 9753939GS
19WPL 9753939GB
19WP8273345 Whirlpool Burner Cap
19WP8273343 Whirlpool Burner Cap
19WP3191904 Whirlpool Burner Cap
23Screw (4)
23WPL 9759629
