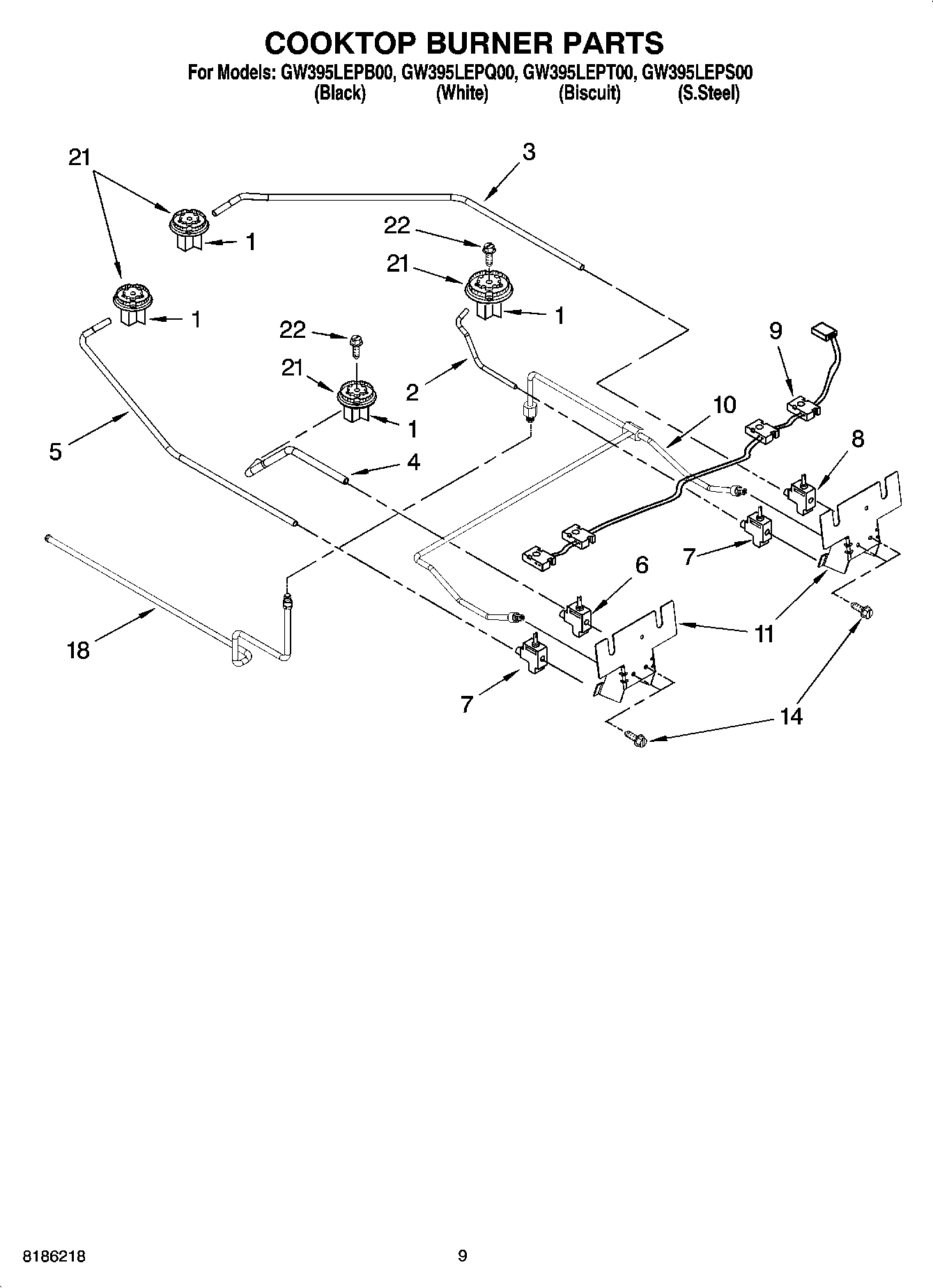

GW395LEPS00 07 – COOKTOP BURNER PARTS, OPTIONAL PARTS

GW395LEPS00 07 – COOKTOP BURNER PARTS, OPTIONAL PARTS

Written by

in

GW395LEPS00 07 – COOKTOP BURNER PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI74591A1
W10624584 Whirlpool Power Cord
261900 Whirlpool Microwave Spray
WPL 591014
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
W10851603 Whirlpool Orifice
Filler, Counter Top (Black)
WPL ARI74590A3
WPL ARI74588A5
WPL ARI74587A5
WPL 9759900
WPL 9757727
9756892 Whirlpool Oven Wire Harness
WPL 9756920
WPL ARI74589A2
Filler, Counter Top (White)
Filler, Counter Top (Biscuit)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
4450800 Whirlpool Oven Screw
WP4449809 Whirlpool Screw
WP112432 Whirlpool Nut Assembly
WP3400015 Whirlpool Screw
4448664 Whirlpool Oven Mounting Bracket
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
72017 Whirlpool Appliance Touch-Up Paint White
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
242831 Whirlpool Oven Wire
Spacer, Harness
Clip, Ground Wire
350930 Whirlpool White Spray Paint
WP4448950 Whirlpool Screw
W11447673 Whirlpool Range Tip Anchor
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
1WPW10128456 Whirlpool Orifice Holder
1Burner Base w/Orifice (Small (2))
1WPW10244714 Whirlpool Orifice Holder
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Valve, Burner (Bronze)
7WP4456816 Whirlpool Burner Valve
8WP4456817 Whirlpool Burner Valve
99756822 Whirlpool Wire Harness
10Tube, Manifold
11Screw (4)
11Manifold
14WP3186217 Whirlpool Screw
184453754 Whirlpool Oven Burner Tube
21WP4455981 Whirlpool Burner Head
21Burner Head (Turbi)
21Head, Burner (Small)
22WP3368921 Whirlpool Screw
