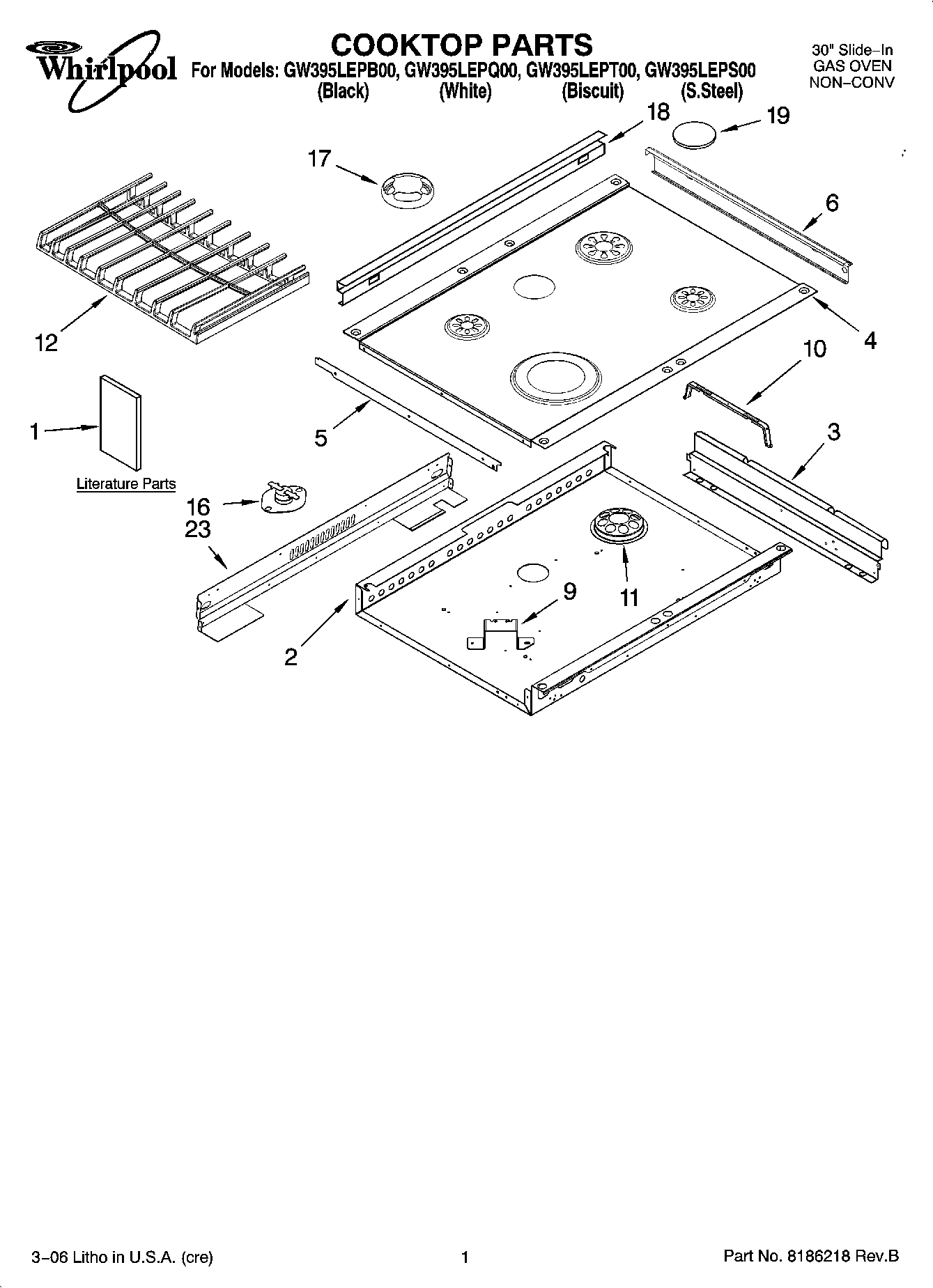

GW395LEPT00 01 – COOKTOP PARTS

Products

Position	Product
1	Installation Instructions
1	Tech Sheet
1	Anti-Tip Instruct.
1	Safe Cooking Tips
1	Use & Care Guide
2	Burner Box
3	Bracket, Mounting
4	Cooktop (White)
4	Cooktop (Biscuit)
4	Cooktop (Black)
5	Wall, Side Cktp (White)
5	Wall, Side Cktp (Biscuit)
5	Wall, Side Cktp (Black)
6	Trim-CkTop, SI (White LH)
6	TRIM, COOKTOP (LEFT) (BISCUIT)
6	TRIM, COOKTOP (RIGHT) (BISCUIT)
6	Trim-CkTop, SI (S.Steel LH)
6	Trim-CkTop, SI (Black LH)
6	Trim-CkTop, SI (White RH)
6	Trim-CkTop, SI (S.Steel RH)
6	Trim-CkTop, SI (Black RH)
9	WP12990527 Whirlpool Microwave Screw
9	Bracket, Burner
10	WP9756821 Whirlpool Support
10	WP4449809 Whirlpool Screw
11	Dome Cap, Vent
12	Grate, Burner (Black (LH))
12	Grate, Burner (Espresso (LH))
12	Grate, Burner (Mouse Grey (LH))
12	Grate, Burner (Black (RH))
12	Grate, Burner (Espresso (RH))
12	Grate, Burner (Mouse Grey (RH))
16	WP9759944 Whirlpool Thermostat
17	Vent, Center (White)
17	Vent, Center (Black)
17	Vent, Center (Biscuit)
18	Trim, Cooktop Rear (S.Steel)
18	W10491985 Whirlpool Screw
18	Trim, Cooktop Rear (Black)
18	Trim, Cooktop Rear (White)
18	Trim. Cooktop Rear (Biscuit)
19	WPL 9753939EP
19	WP3191905 Whirlpool Burner Cap
19	Cap, Burner 6K (1) (Gray)
19	WP3191898 Whirlpool Surface Burner Cap Black
19	WPL 9753939GS
19	WPL 9753939GB
19	WP8273345 Whirlpool Burner Cap
19	WP8273343 Whirlpool Burner Cap
19	WP3191904 Whirlpool Burner Cap
23	Screw (4)
23	WPL 9759629
