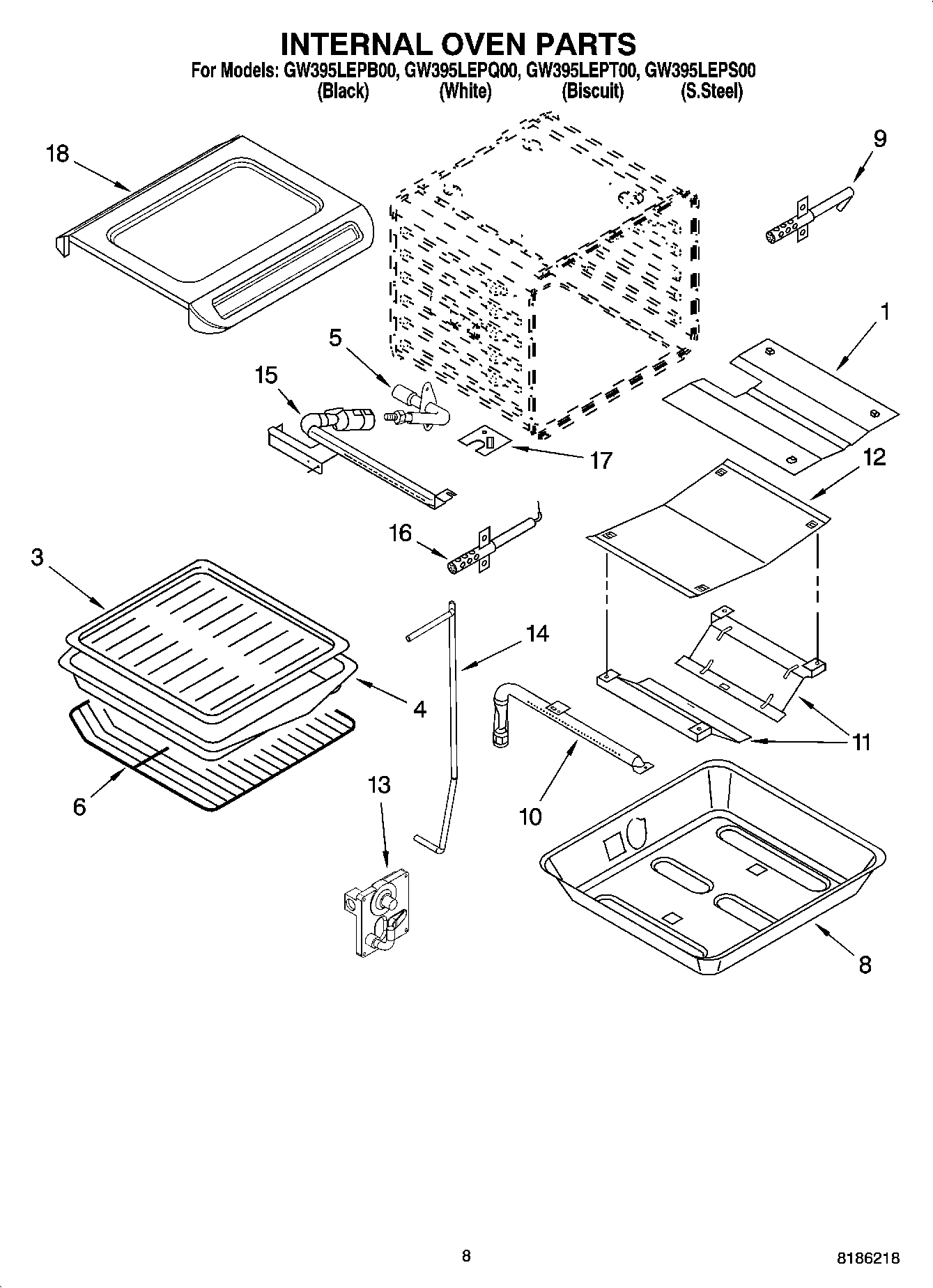

GW395LEPT00 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	Shield, Flame
3	WP3195996 Whirlpool Pan Grid
4	W10737569 Whirlpool Broil Pan
5	9757779 Whirlpool Oven Fitting
6	WPW10179152 Whirlpool Rack Oven
8	WPW10145744 Whirlpool Support
10	8191123 Whirlpool Oven Burner Assembly with Igniter
11	Shield, Oven (2)
12	Shield, Bake Flame
13	WP9763716 Whirlpool Gas Valve
13	Screw
14	Tube, Broil
15	Burner, Broil
16	W11684507 Whirlpool Screw
16	WP8054129 Whirlpool Oven Igniter
17	SCREW
17	Cover, Ignitor
18	WPW10272546 Whirlpool Broiler Pan
