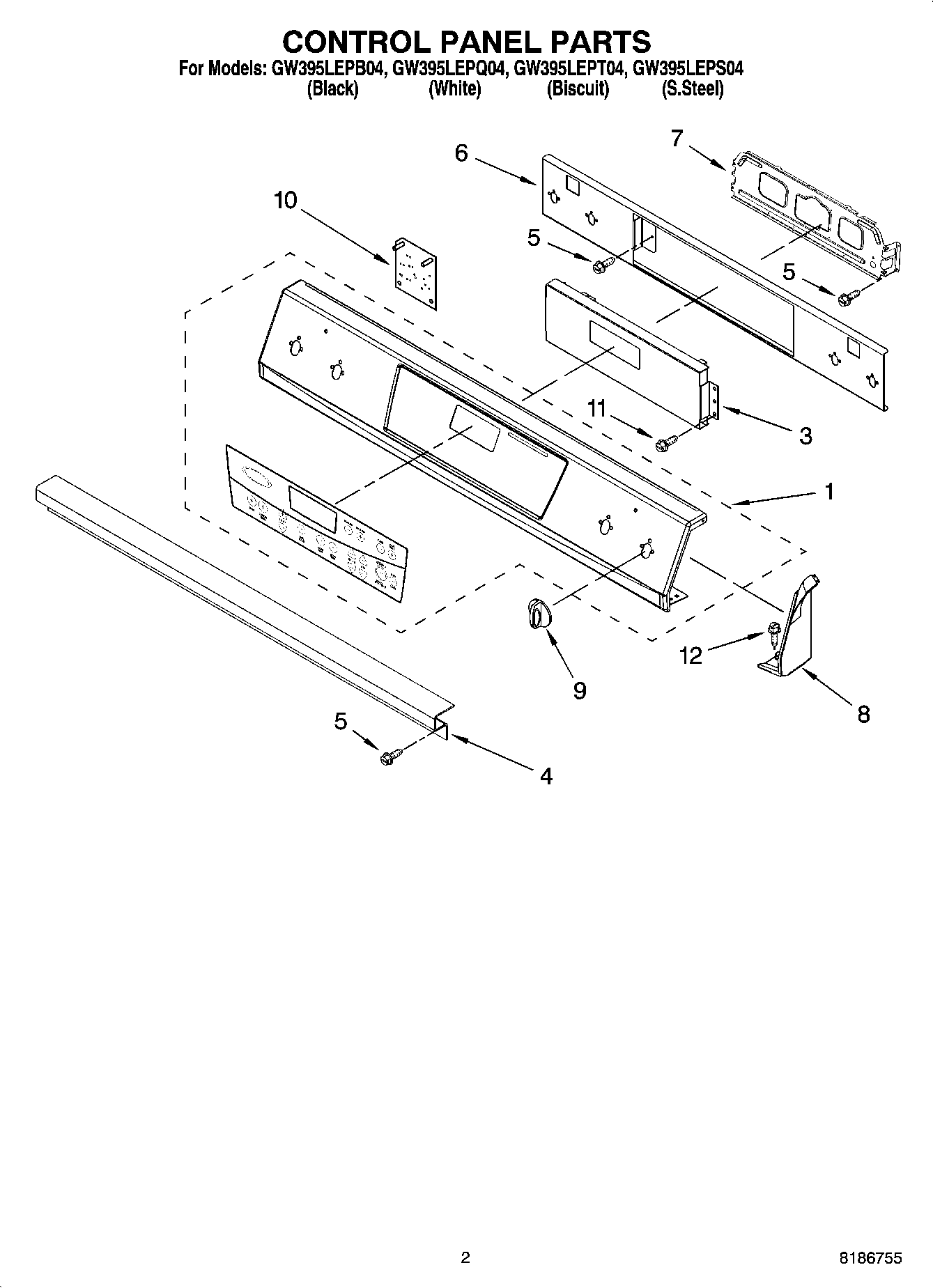

GW395LEPT04 02 – CONTROL PANEL PARTS

GW395LEPT04 02 – CONTROL PANEL PARTS

Written by

in

GW395LEPT04 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (White)
1Control Panel (S.Steel)
1Control Panel (Biscuit)
1Control Panel (Black)
3Control, Migration
4Bracket, Console
5WP3196557 Whirlpool Screw
6WPW10036100 Whirlpool Control Bracket
7Support, Gas Valve
8Endcap Left (White)
8Endcap Right (White)
8Endcap (Biscuit RH)
8Endcap (Biscuit LH)
8Endcap Right (Black)
8Endcap Left (Black)
9Knob (Black)
9Knob (Biscuit)
9Knob (White)
10WPW10331686 Whirlpool Oven Spark Module
11Screw
123196172 Whirlpool Oven Screw
