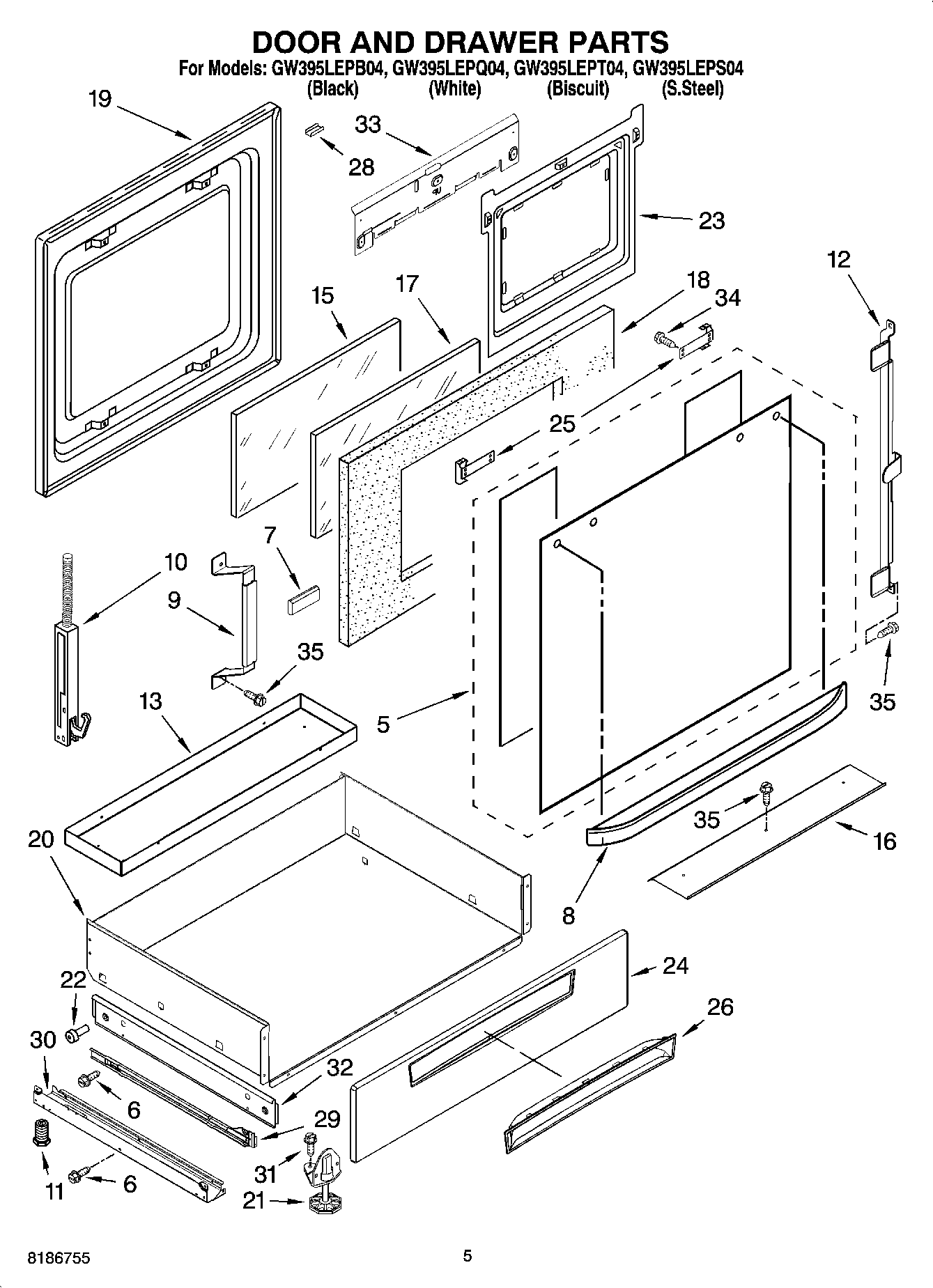

GW395LEPT04 04 – DOOR AND DRAWER PARTS

Products

Position	Product
5	Assembly, Door Kit (White)
5	WP9759074 Whirlpool Outer Door Glass
5	Glass, Door Front (Biscuit)
5	WP9759641 Whirlpool Outer Door Glass
6	WP3196557 Whirlpool Screw
7	Spacer, Glass
8	Door Handle (White Model)
8	Door Handle (Black Model)
8	Door Handle (Almond Model)
9	Bracket (3rd Glsss)
10	WP9760572 Whirlpool Door Hinge
10	WP9760571 Whirlpool Door Hinge
11	WPW10058460 Whirlpool Appliance Levelling Leg
12	WP9759229 Whirlpool Mounting Bracket
13	Panel, Drawer
15	WP9757706 Whirlpool Door Inner Glass
16	4457114 Whirlpool Oven Heat Shield
17	WP9759225 Whirlpool Inner Door Glass
18	WP4451722 Whirlpool Door Insulation Assembly
19	WP9759413 Whirlpool Door Liner
20	Drawer
21	WP3196037 Whirlpool Leveling Foot
22	814229 Whirlpool Primary Roller
23	WP4457132 Whirlpool Retainer
24	Front, Drawer (Black)
24	Front, Drawer (Stainless)
24	Front, Drawer (Biscuit)
24	Front, Drawer (White)
25	Bracket, Handle (Left)
25	Bracket, Handle (Right)
26	Handle, Drawer (White)
26	Handle, Drawer (Black)
26	Handle, Drawer (Biscuit)
28	Clip, Retainer (Black Model)
29	Track, Drawer (L.Side)
29	Track, Drawer (R.Side)
30	Side, Base (L.Side)
30	Side, Base (R.Side)
31	WP4449743 Whirlpool Screw
32	Guide, Roller
33	Shield, Heat
34	Screw
35	WP4449809 Whirlpool Screw
