GW395LEPT04 05 – TOP VENTING PARTS

GW395LEPT04 05 – TOP VENTING PARTS

Written by

in

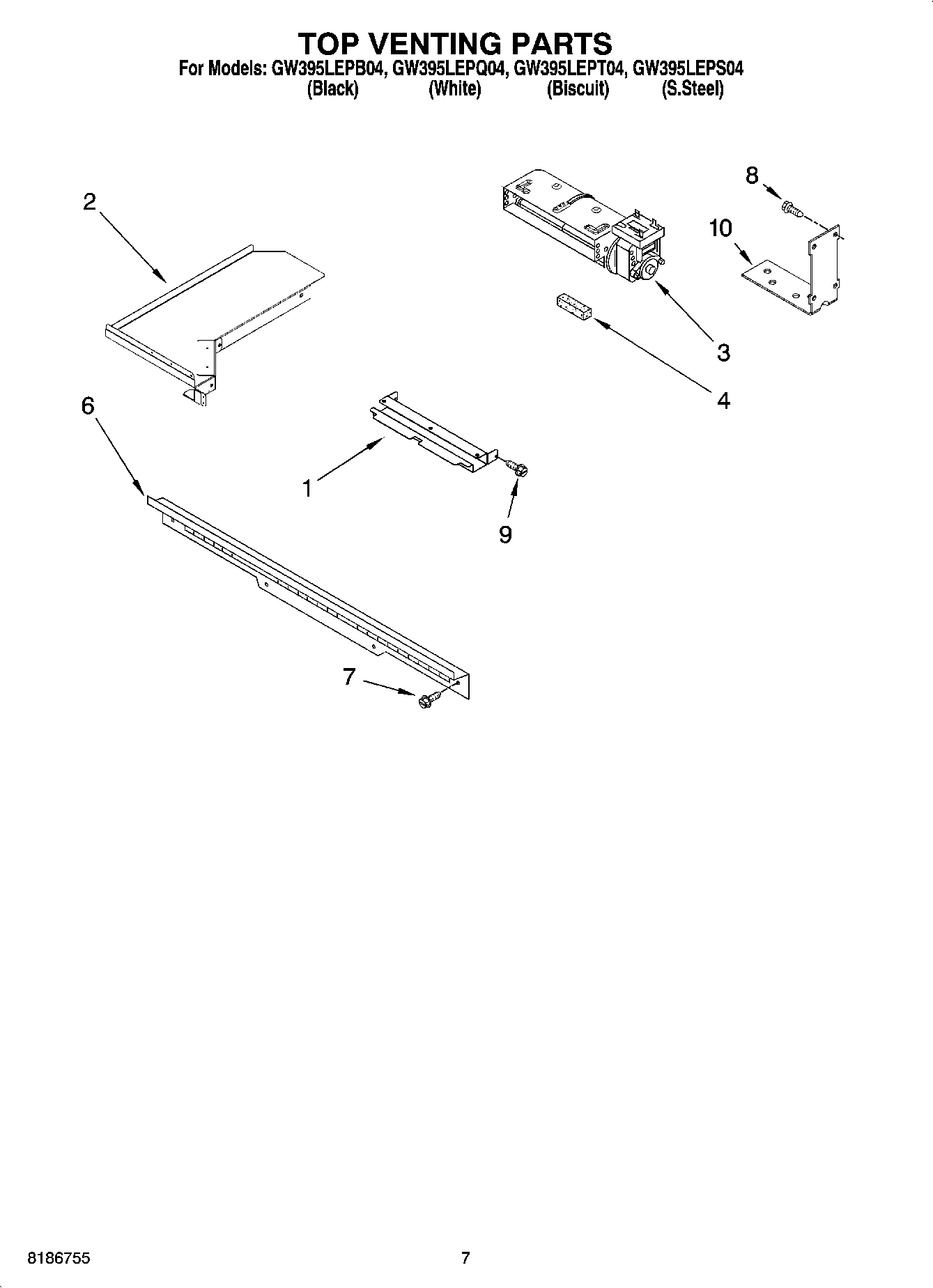

GW395LEPT04 05 – TOP VENTING PARTS

Products

PositionProduct
1Front, Air Duct
2Top, Air Duct (Left)
2Top, Air Duct (Right)
3W10810687 Whirlpool Blower Assembly
4W10491987 Whirlpool Foam Seal
6Vent, (Control Panel)
7WP4450038 Whirlpool Screw
8WP4449809 Whirlpool Screw
9Screw
10WP4455352 Whirlpool Mounting Bracket
