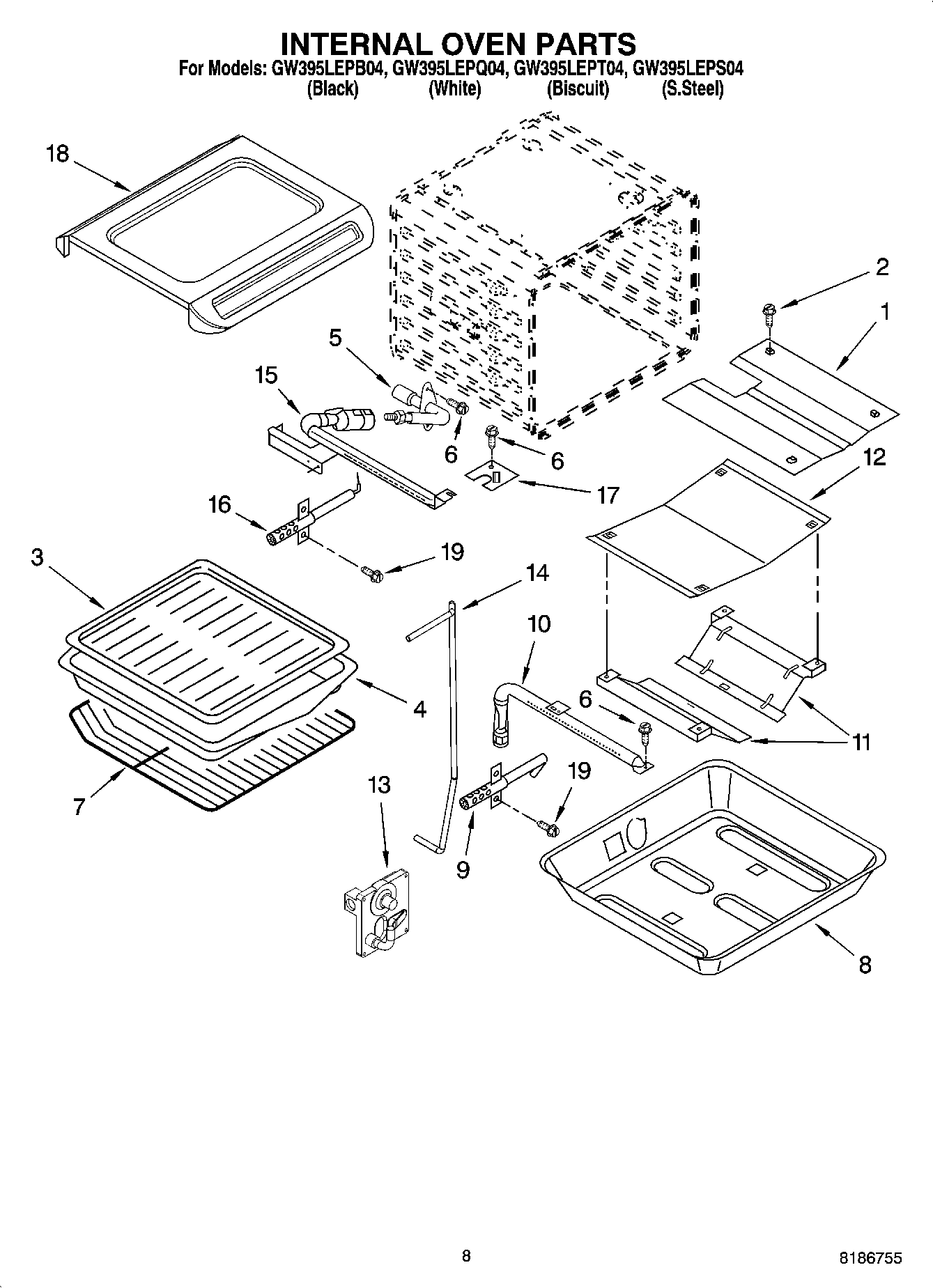

GW395LEPT04 06 – INTERNAL OVEN PARTS

GW395LEPT04 06 – INTERNAL OVEN PARTS

Written by

in

GW395LEPT04 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	Shield, Flame
3	WP3195996 Whirlpool Pan Grid
4	W10737569 Whirlpool Broil Pan
5	9757779 Whirlpool Oven Fitting
6	SCREW
7	WPW10179152 Whirlpool Rack Oven
8	WPW10145744 Whirlpool Support
9	WP9760229 Whirlpool Oven Igniter
10	WP9760228 Whirlpool Oven Burner
11	Shield, Oven (2)
12	Shield, Bake Flame
13	WP9763716 Whirlpool Gas Valve
14	Tube, Broil
15	Burner, Broil
16	WP8054129 Whirlpool Oven Igniter
17	Cover, Ignitor
18	WPW10272546 Whirlpool Broiler Pan
19	W11684507 Whirlpool Screw
