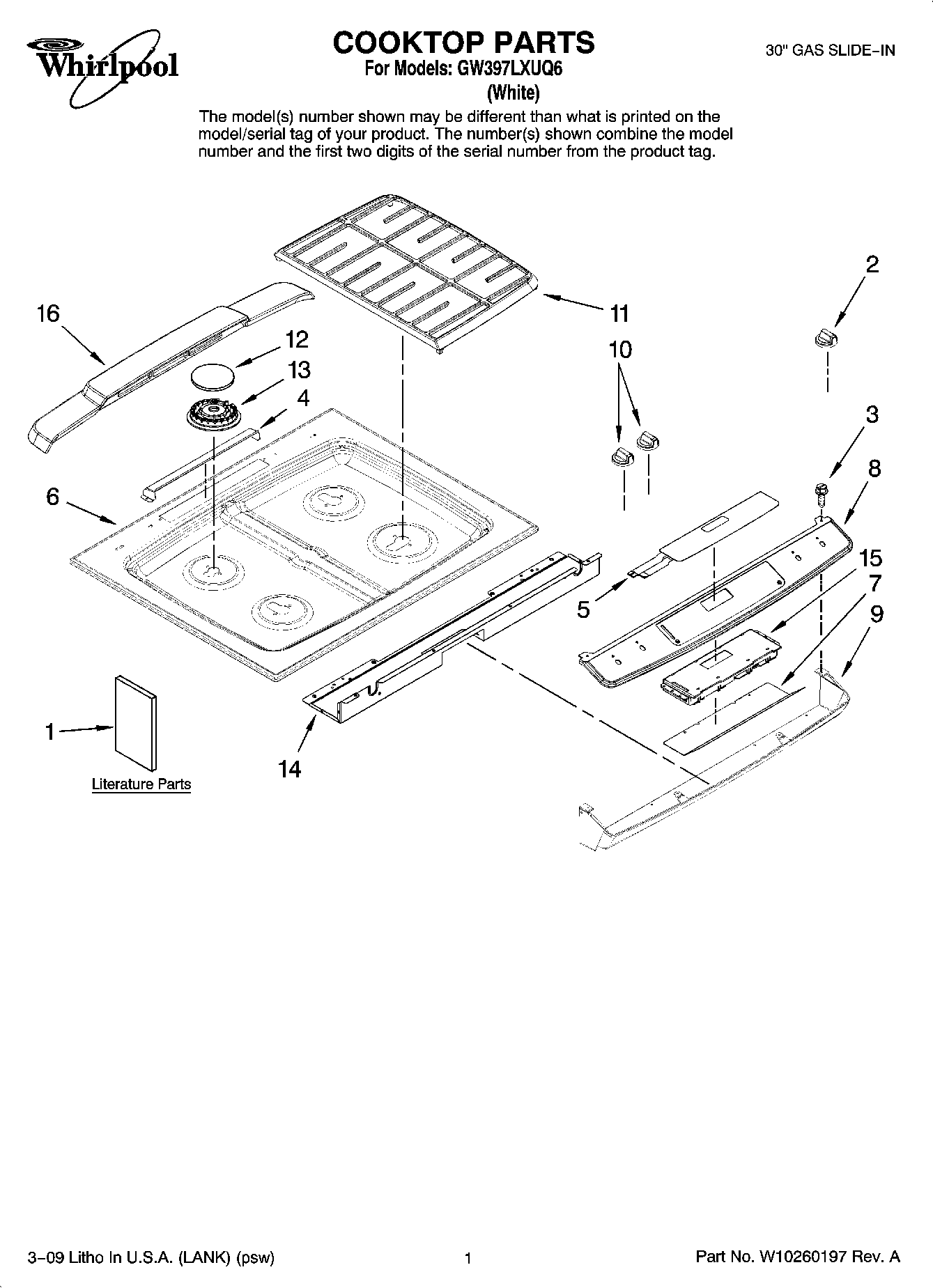

GW397LXUQ6 01 – COOKTOP PARTS

Products

PositionProduct
1Owners Manual
1Installation Instructions
2KNOB, (ACCUSIMMER)
3Screw
4Baffle, Vent Cover
5WPW10207930 Whirlpool Membrane Switch
6Cooktop
7Shield, Control
8Panel, Cntl Shield
9PANEL,CONTROL(LWR) (WHITE)
10Knob, Valve (3)
11Grate, Burner (2)
12Cap, Burner (RF) (Gray)
12WPW10183368 Whirlpool Burner Cap
12WPW10173832 Whirlpool Burner Cap
13Base, Burner (5K LR) (1)
13WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
13WPW10406878 Whirlpool Burner Base (16K)
14SUPPORT, CONTROL PANEL
15Control, (ERC)
16Cover, Vent
