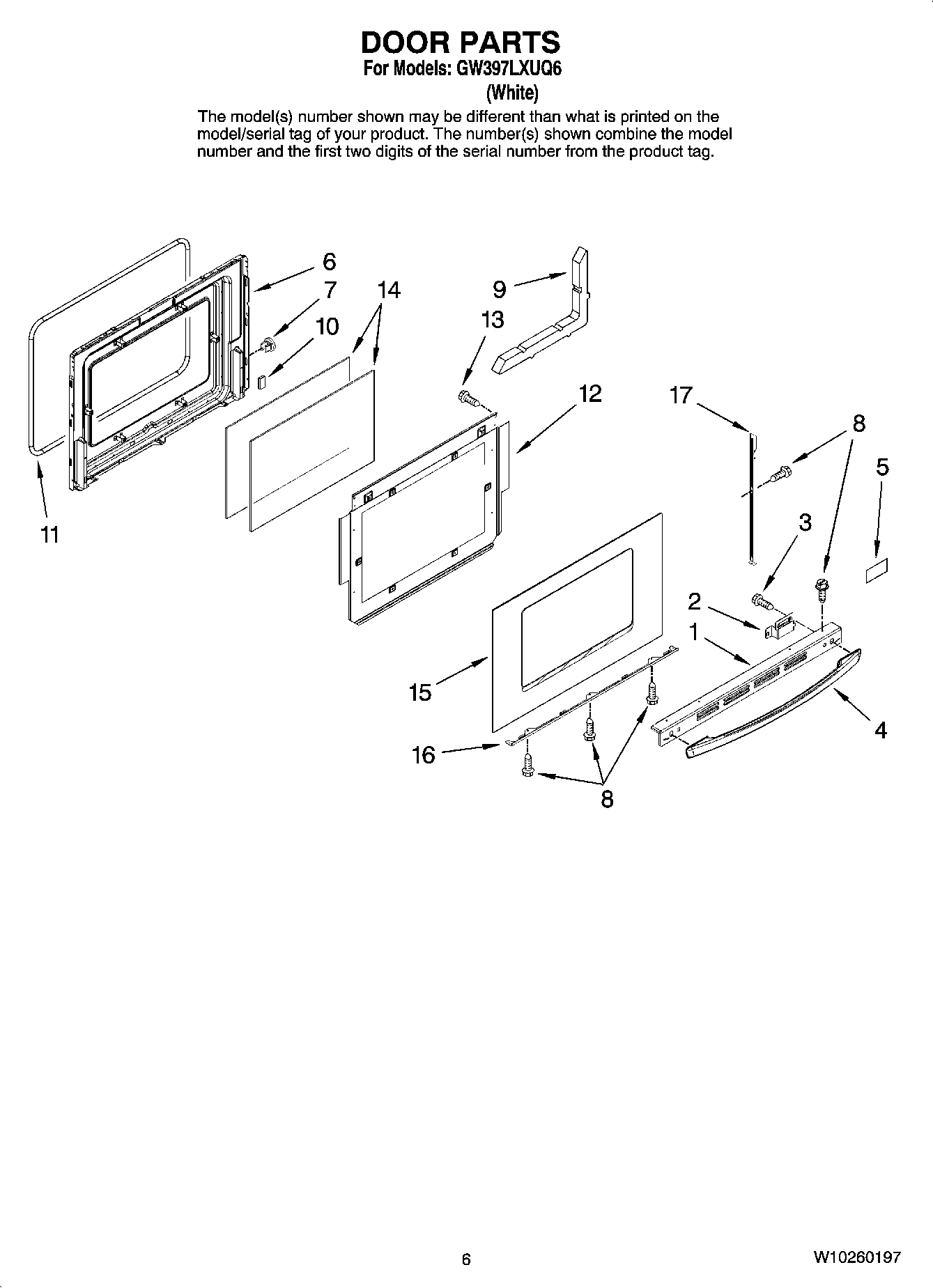

GW397LXUQ6 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
2	Bracket, Handle (Left)
2	Bracket, Handle (Right)
3	Screw
4	WPW10118430 Whirlpool Door Handle
5	Name Plate
6	Lining, Door
7	NUT, SNAP
8	SCREW (WHITE)
9	Insulation, Door
10	Spacer, Rubber
11	GASKT-DOOR OVEN
12	Baffel, Retainer
13	Screw
14	GLASS, INNER
14	GLASS, DOOR (S.STEEL MDL ONLY)
15	Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (White)
16	Trim, Door Bottom
17	TRIM, DOOR SIDE (BLACK, RIGHT)
17	TRIM, DOOR SIDE (BLACK, LEFT)
