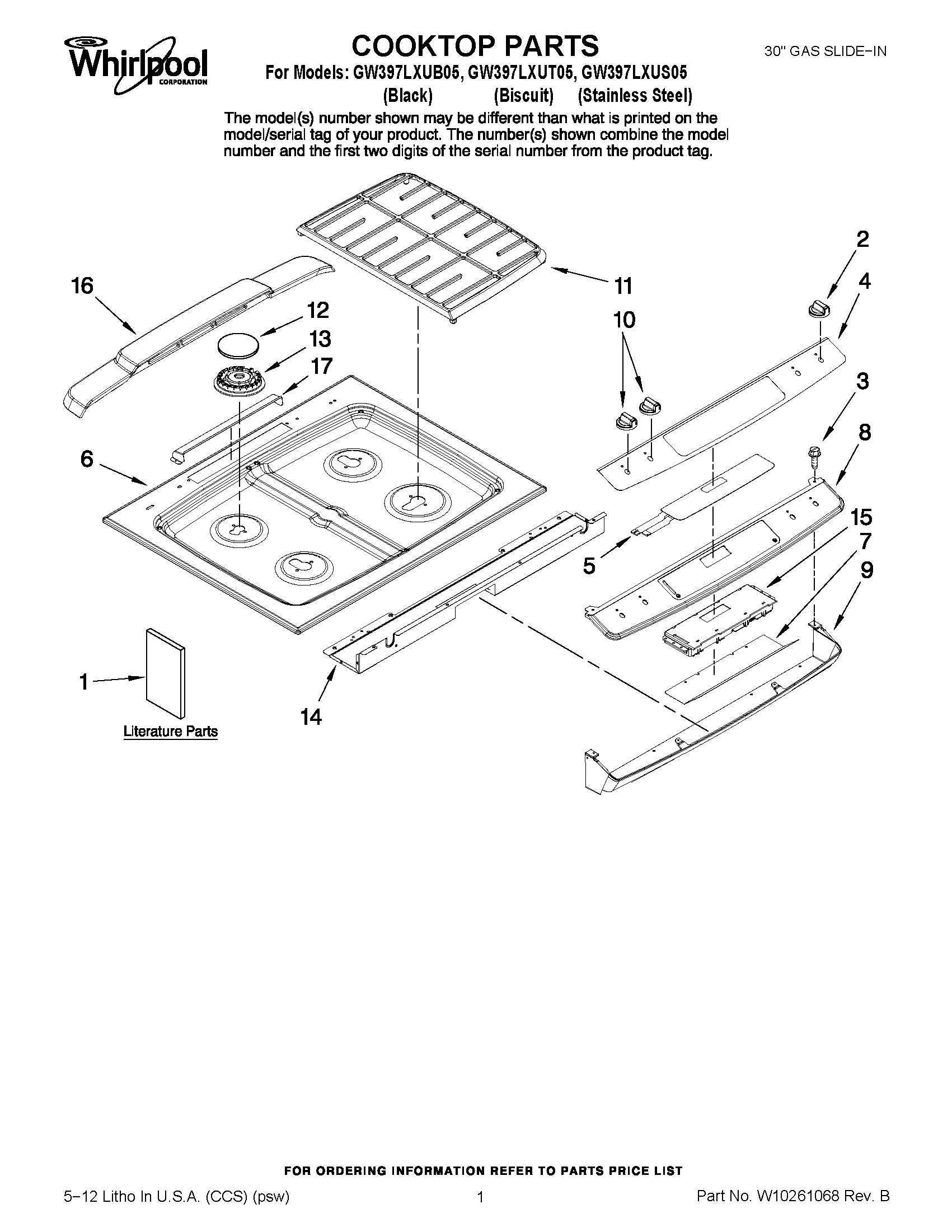

GW397LXUS05 01 – COOKTOP PARTSadmin2025-04-26T11:39:01+00:00GW397LXUS05 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | Owners Manual |
| 1 | Installation Instructions |
| 2 | Knob, AccuSimmer (Black) |
| 2 | Knob, AccuSimmer (Biscuit) |
| 3 | Screw |
| 4 | OVERLAY (SS ONLY) |
| 5 | WPW10207928 Whirlpool Membrane Switch |
| 5 | WPW10207932 Whirlpool Membrane Switch |
| 6 | Cooktop (Black) |
| 6 | Cooktop (Biscuit) |
| 7 | Shield, Control |
| 8 | Panel, Control (S.Steel) |
| 8 | Panel, Cntl Shield (Biscuit) |
| 8 | Panel, Cntl Shield (Black) |
| 9 | PANEL,CONTROL(LWR) (BLACK) |
| 9 | PANEL,CONTROL(LWR) (BISCUIT) |
| 10 | KNOB, VALVE (BISCUIT) |
| 10 | KNOB, VALVE (BLACK) |
| 11 | GRATE, BURNER (BLACK) |
| 11 | Grate, Burner (2) |
| 12 | WPW10169975 Whirlpool Burner Cap |
| 12 | WPW10173832 Whirlpool Burner Cap |
| 12 | WPW10183368 Whirlpool Burner Cap |
| 12 | WPW10183370 Whirlpool Burner Cap |
| 12 | WP7504P298-60 Whirlpool Range Burner Cap |
| 12 | WPW10183371 Whirlpool Burner Cap |
| 13 | WPW10406243 Whirlpool Burner Head Auxiliary 6K |
| 13 | WPW10406878 Whirlpool Burner Base (16K) |
| 13 | WPW10406797 Whirlpool Range Burner Base (12K & 9.2K) |
| 14 | SUPPORT, CONTROL PANEL |
| 15 | Control, (ERC) |
| 16 | Cover, Vent |
| 16 | Cover, Vent (Black) |
| 17 | Baffle, Vent Cover |
