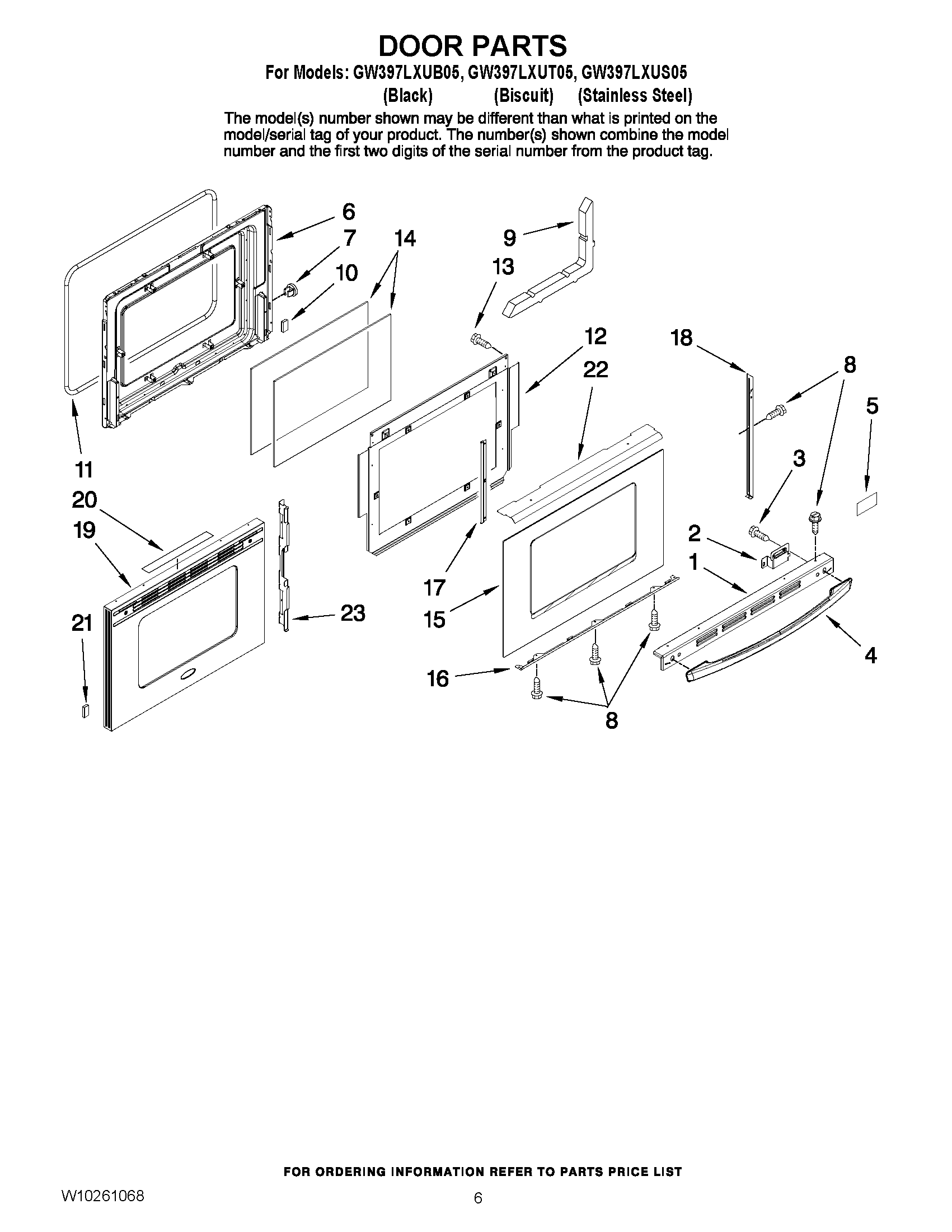

GW397LXUS05 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
1	Trim, Door Top (Biscuit)
2	Bracket, Handle (Left)
2	Bracket, Handle (Right)
3	Screw
4	WPW10144883 Whirlpool Door Handle
4	W10118431 Whirlpool Door Handle
4	WPL W10118432
5	NAMEPLATE
6	Lining, Door
7	NUT, SNAP
8	SCREW, PANEL (STAINLESS)
8	SCREW (BLACK)
8	Screw, Trim (Biscuit)
9	Insulation, Door
10	Spacer, Rubber
11	GASKT-DOOR OVEN
12	Baffel, Retainer
13	Screw
14	GLASS, INNER
14	GLASS, DOOR (S.STEEL MDL ONLY)
15	Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (Biscuit)
15	Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (Black)
16	Trim, Door Bottom (Biscuit)
16	Trim, Door Bottom
17	Bracket, Glass
18	Trim, Door Side (Left)
18	Trim, Door Side (Biscuit, Right)
18	Trim, Door Side (Biscuit, Left)
18	Trim, Door Side (Right)
19	PANEL, OUTER DOOR (STAINLESS (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS))
20	Insulation, Foil
21	Clip, Glass (2)
22	Shield, Door
23	Retainer, Glass
