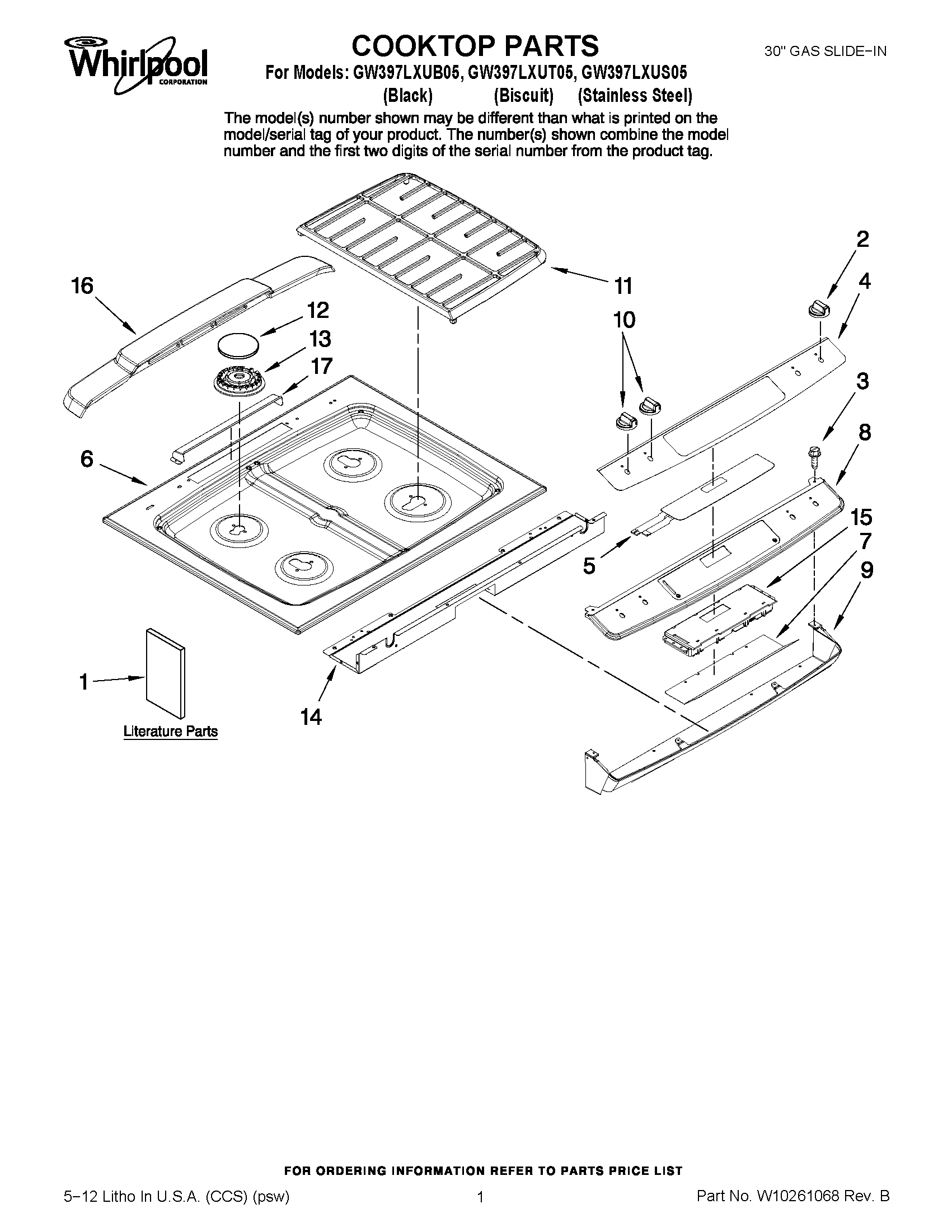

GW397LXUT05 01 – COOKTOP PARTS

Products

Position	Product
1	Owners Manual
1	Installation Instructions
2	Knob, AccuSimmer (Black)
2	Knob, AccuSimmer (Biscuit)
3	Screw
4	OVERLAY (SS ONLY)
5	WPW10207928 Whirlpool Membrane Switch
5	WPW10207932 Whirlpool Membrane Switch
6	Cooktop (Black)
6	Cooktop (Biscuit)
7	Shield, Control
8	Panel, Control (S.Steel)
8	Panel, Cntl Shield (Biscuit)
8	Panel, Cntl Shield (Black)
9	PANEL,CONTROL(LWR) (BLACK)
9	PANEL,CONTROL(LWR) (BISCUIT)
10	KNOB, VALVE (BISCUIT)
10	KNOB, VALVE (BLACK)
11	GRATE, BURNER (BLACK)
11	Grate, Burner (2)
12	WPW10169975 Whirlpool Burner Cap
12	WPW10173832 Whirlpool Burner Cap
12	WPW10183368 Whirlpool Burner Cap
12	WPW10183370 Whirlpool Burner Cap
12	WP7504P298-60 Whirlpool Range Burner Cap
12	WPW10183371 Whirlpool Burner Cap
13	WPW10406243 Whirlpool Burner Head Auxiliary 6K
13	WPW10406878 Whirlpool Burner Base (16K)
13	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
14	SUPPORT, CONTROL PANEL
15	Control, (ERC)
16	Cover, Vent
16	Cover, Vent (Black)
17	Baffle, Vent Cover
