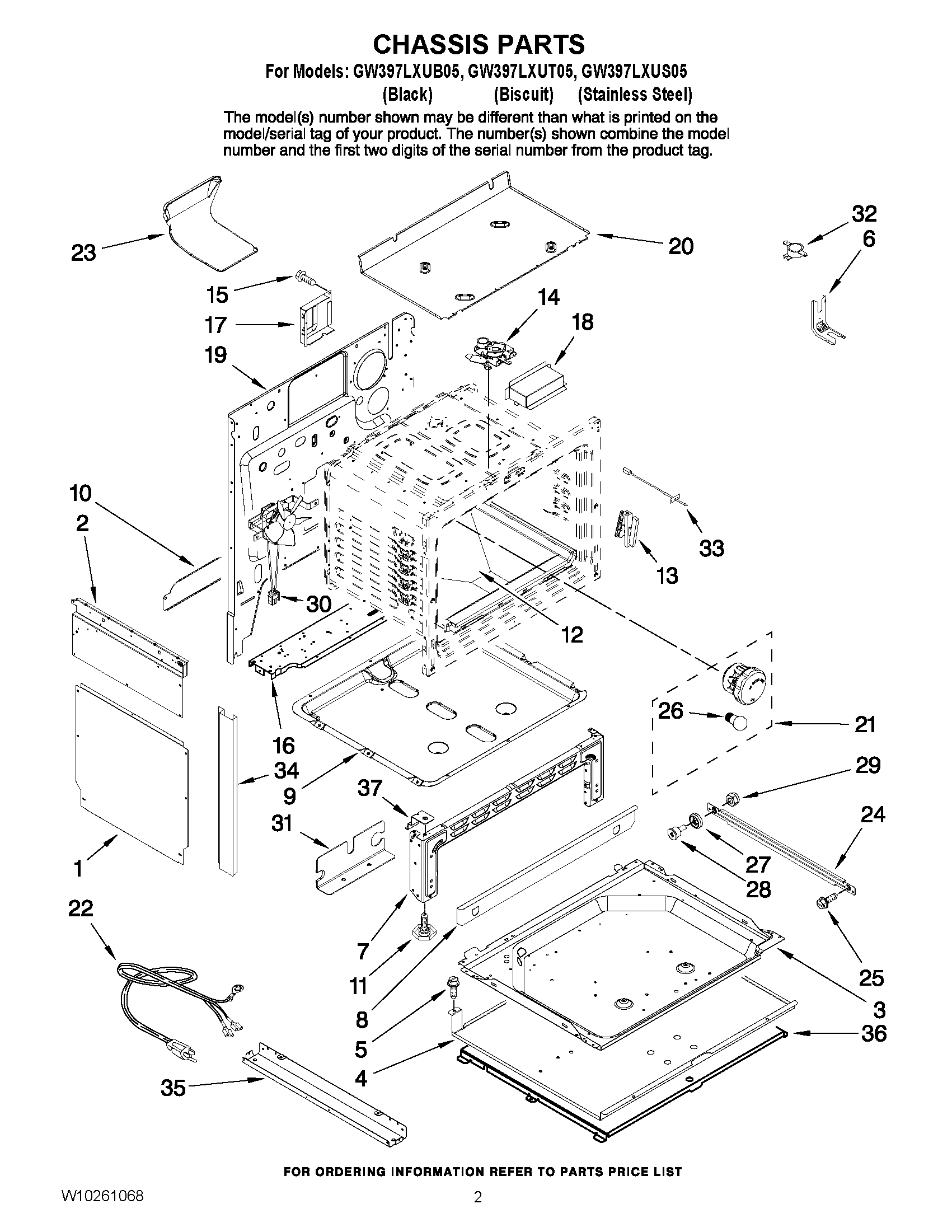

GW397LXUT05 02 – CHASSIS PARTS

Products

Position	Product
NI	Insulation, Wrap
NI	Insulation, Drawer
NI	INSULATION, OVEN BOTTOM
NI	Insulation, Back
1	Shield, Lower Side
2	Panel, Shield (Right)
2	Panel, Shield (Left)
3	RETAINER, INSUL (BOTTOM)
4	SHIELD, WARMER
5	Screw
6	BRACKET, ANTI TIP
7	Pedestal, Front
8	Baffle, Oven Front
9	Pan, Burner
10	Extension, Back
11	Leg, Leveling
12	Bottom, Oven
13	HINGE
14	Latch Assembly
15	SCREW
16	Support
17	Cover, Main Wire
18	COVER, DOOR LATCH
19	Main Back
20	BOTTOM, BURNER BOX
21	Light Assembly
22	INSULATOR, CORD
23	Box, Assy Vent
24	RUNNER, DRAWER
25	SCREW
26	BULB, LIGHT
27	Roller, Drawer
28	Shaft, Roller
29	Nut, Lock
30	Fan, Cooling
31	BRACKET,PWR SUPPLY
32	SWITCH, HI-LIMIT
33	SENSOR, OVEN
34	Trim, Side
34	TRIM, SIDE (BISCUIT(2))
35	Pedestal, Bottom
36	SHIELD, HEAT POUCH
37	SUPPORT,OVEN BTM
