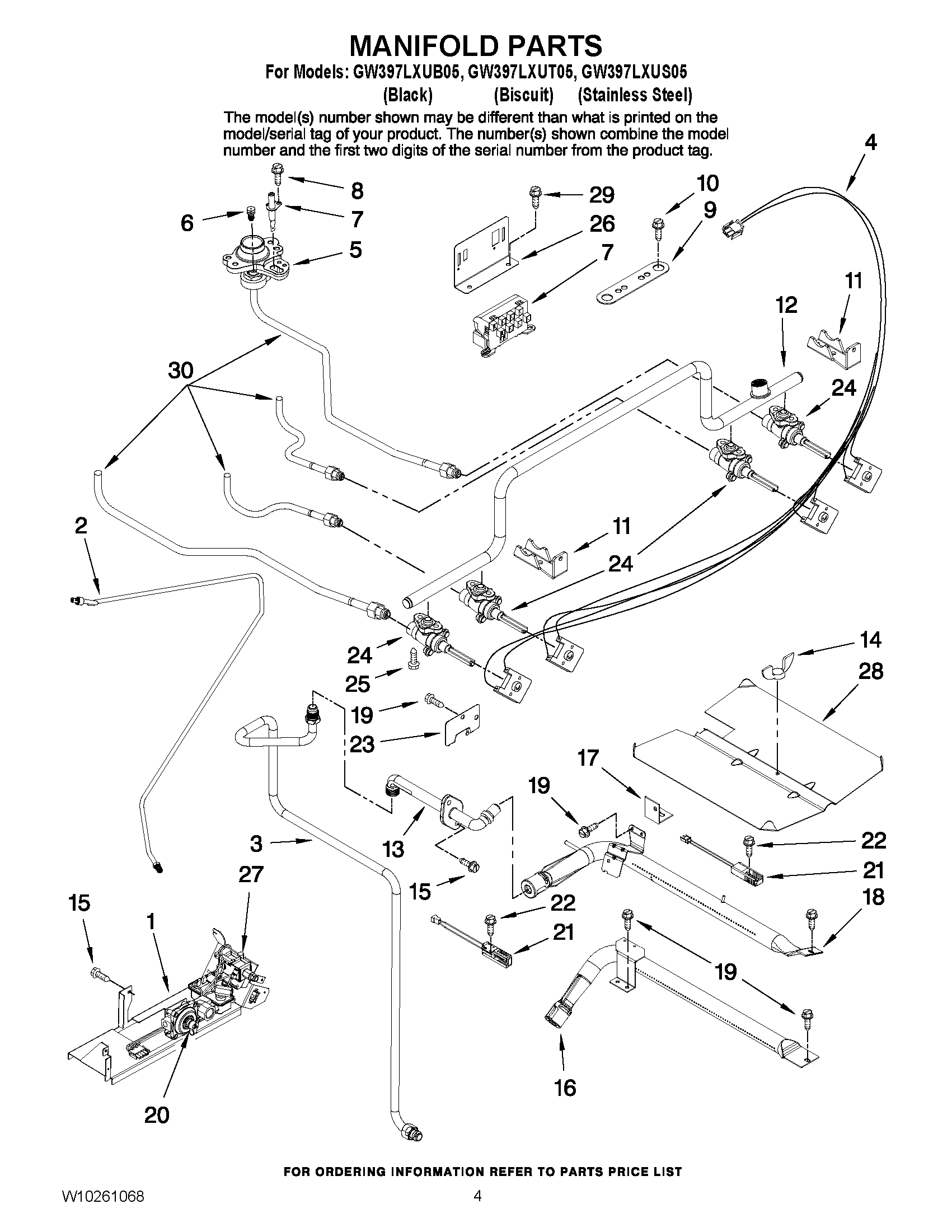

GW397LXUT05 03 – MANIFOLD PARTS

Products

Position	Product
NI	Spuds, LP Gas (Kit of 4)
1	Cover, Bnr Valve
2	Tubing, Gas Supply
3	Tube, Broil
4	W10173467 Whirlpool Wire Harness
6	HOLDER, ORIFICE (LF,RR-9.2K)
6	HOLDER, ORIFICE (LEFT FRONT, 16K)
6	HOLDER, ORIFICE (LR & RR, 5K)
7	Spark Module
8	WP74009958 Whirlpool Spark Electrode Assembly
9	WP8273062 Whirlpool Screw
10	Retainer, Base (4)
12	Bracket, Valve (4)
13	Pipe, Manifold
14	FITTING, BROILER
15	NUT, WING
16	Screw
17	Burner, Bake
18	SUPPORT, BAKE BURNER
19	BURNER, BROILER
20	SCREW
21	Valve/Regulator
21	IGNITER (BAKE)
22	SCREW
23	COVER, IGNITOR WIRE
24	W10836481 Whirlpool Burner Valve
24	Valve, Burner (LF, RF, RR) (3)
25	SCREW
26	SUPPORT, SPARK MODULE
27	Valve, Safety
28	BAFFLE, BURNER BROIL
28	BAFFLE, BURNER BAKE
29	Screw
30	Tube, Burner (RF)
30	Tube, Burner (LF)
30	Tube, Burner (RR)
30	Tube, Burner (LR)
