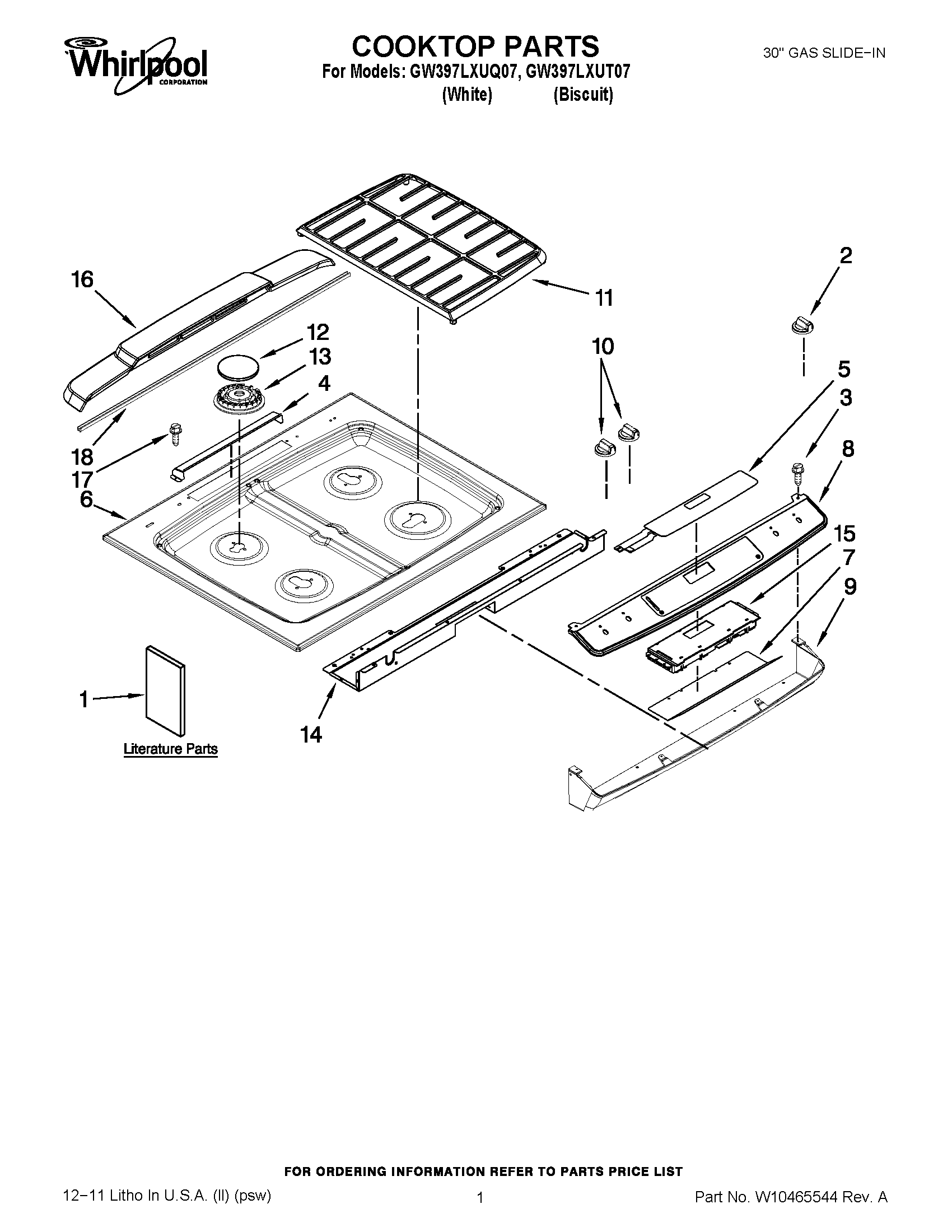

GW397LXUT07 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1DIAGRAM, WIRING (FRENCH)
1DIAGRAM, WIRING (ENGLISH)
1Installation Instructions
1Owners Manual
1Safer Cooking Tips (French)
2Knob, AccuSimmer (Biscuit)
2KNOB, (ACCUSIMMER)
3Screw
4Baffle, Vent Cover
5WPW10207930 Whirlpool Membrane Switch
5WPW10207932 Whirlpool Membrane Switch
6COOKTOP (WHITE)
6COOKTOP (BISCUIT)
7Shield, Control
8Panel, Cntl Shield
8Panel, Cntl Shield (Biscuit)
9PANEL,CONTROL(LWR) (BISCUIT)
9PANEL,CONTROL(LWR) (WHITE)
10Knob, Valve (3)
10KNOB, VALVE (BISCUIT)
11Grate, Burner (2)
12WPW10244448 Whirlpool Burner Cap
13WPW10406243 Whirlpool Burner Head Auxiliary 6K
13WPW10406878 Whirlpool Burner Base (16K)
13WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
14SUPPORT, CONTROL PANEL
15Control, (ERC)
16Cover, Vent
17Screw
18GASKET
