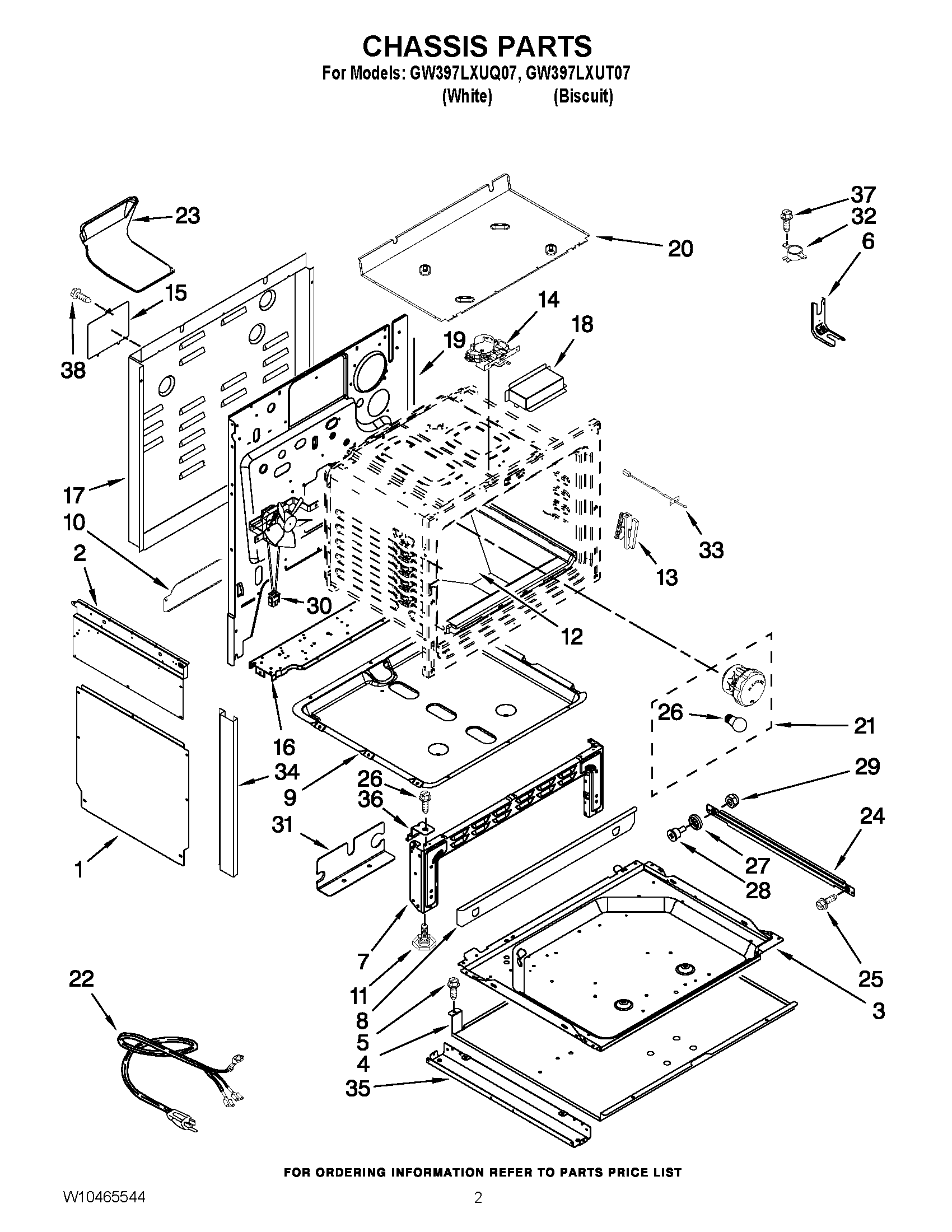

GW397LXUT07 02 – CHASSIS PARTS

GW397LXUT07 02 – CHASSIS PARTS

Written by

in

GW397LXUT07 02 – CHASSIS PARTS

Products

Position	Product
NI	Insulation, Wrap
NI	INSULATION, BOTTOM PLATE
NI	Insulation, Back
NI	INSULATION, OVEN BOTTOM
1	Shield, Lower Side
2	Panel, Shield (Right)
2	Panel, Shield (Left)
3	RETAINER, INSUL (BOTTOM)
4	SHIELD, WARMER
5	SCREW
6	BRACKET, ANTI TIP
7	W10271711 Whirlpool Support Bracket
8	Baffle, Oven Front
9	Pan, Burner
10	Extension, Back
11	Leg, Leveling
12	Bottom, Oven
13	HINGE
14	WPW10274035 Whirlpool Door Latch
15	COVER, TERMINAL
16	Support
17	Cover, Main Wire
18	COVER, DOOR LATCH
19	Main Back
20	BOTTOM, BURNER BOX
21	Light Assembly
22	INSULATOR, CORD
23	Box, Assy Vent
25	RUNNER, DRAWER
26	BULB, LIGHT
27	ROLLER, DRAWER
28	Shaft, Roller
29	Nut, Lock
30	WPW10586440 Whirlpool Blower Fan
31	BRACKET,PWR SUPPLY
32	SWITCH, HI-LIMIT
33	SENSOR, OVEN
34	Trim, Side
34	TRIM, SIDE (BISCUIT(2))
35	Pedestal, Bottom
36	SUPPORT,OVEN BTM
37	SCREW
38	SCREW, HINGE
