GW397LXUT07 04 – DOOR PARTS

GW397LXUT07 04 – DOOR PARTS

Written by

in

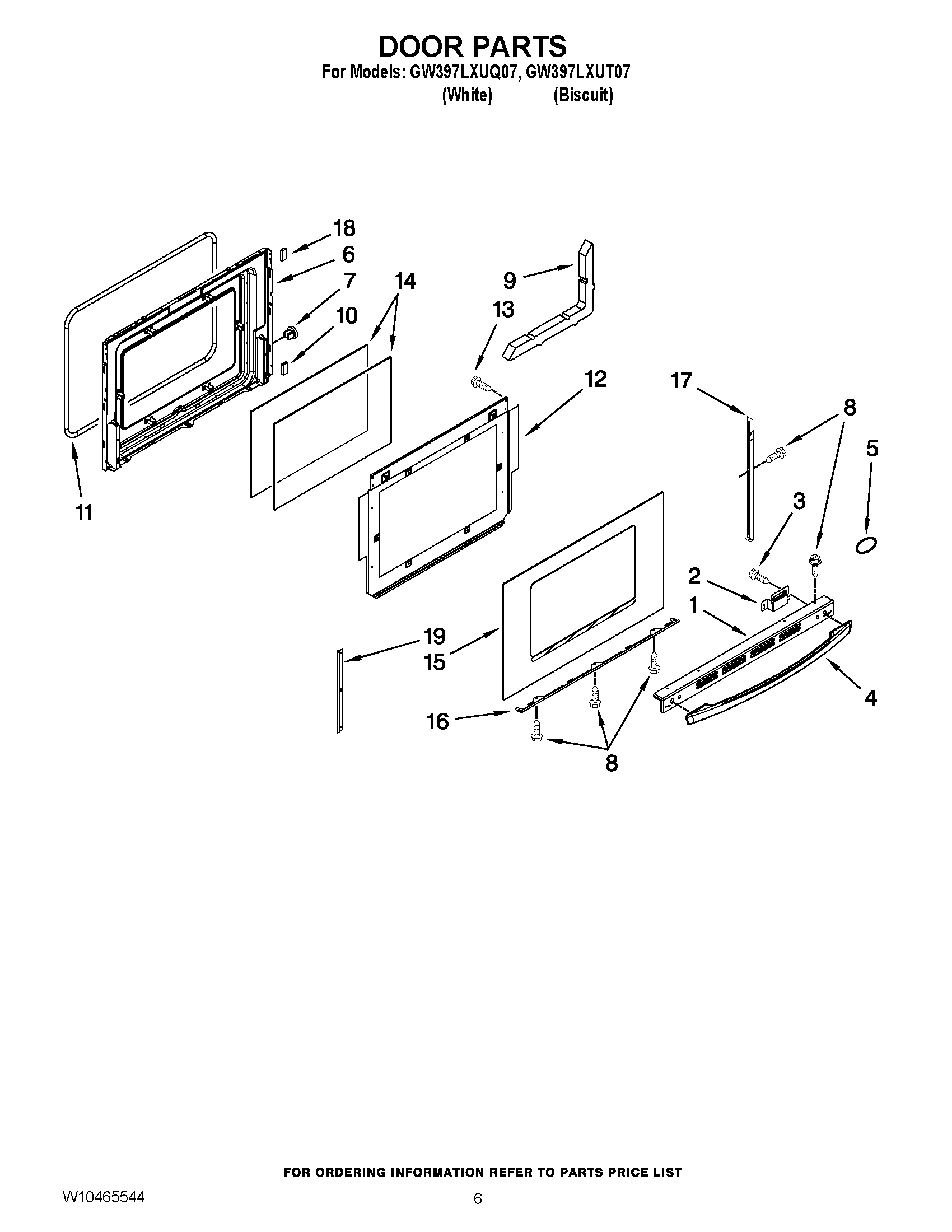

GW397LXUT07 04 – DOOR PARTS

Products

PositionProduct
1Trim, Door Top (Biscuit)
1Trim, Door Top
2Bracket, Handle (Right)
2Bracket, Handle (Left)
3SCREW, HANDLE
4WPL W10118432
4WPW10118430 Whirlpool Door Handle
5NAMEPLATE
6Lining, Door
7NUT, SNAP
8Screw, Trim (Biscuit)
8SCREW (WHITE)
9Insulation, Door
10Spacer, Rubber
11GASKT-DOOR OVEN
12Baffel, Retainer
13W11396735 Whirlpool Screw
14GLASS, INNER
15PANEL, OUTER DOOR (BISCUIT (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS))
15PANEL, OUTER DOOR
16Trim, Door Bottom
16Trim, Door Bottom (Biscuit)
17TRIM, DOOR SIDE (BLACK, LEFT)
17TRIM, DOOR SIDE (BLACK, RIGHT)
17Trim, Door Side (Biscuit, Right)
17Trim, Door Side (Biscuit, Left)
18Spacer, Rubber
19Bracket, Glass
