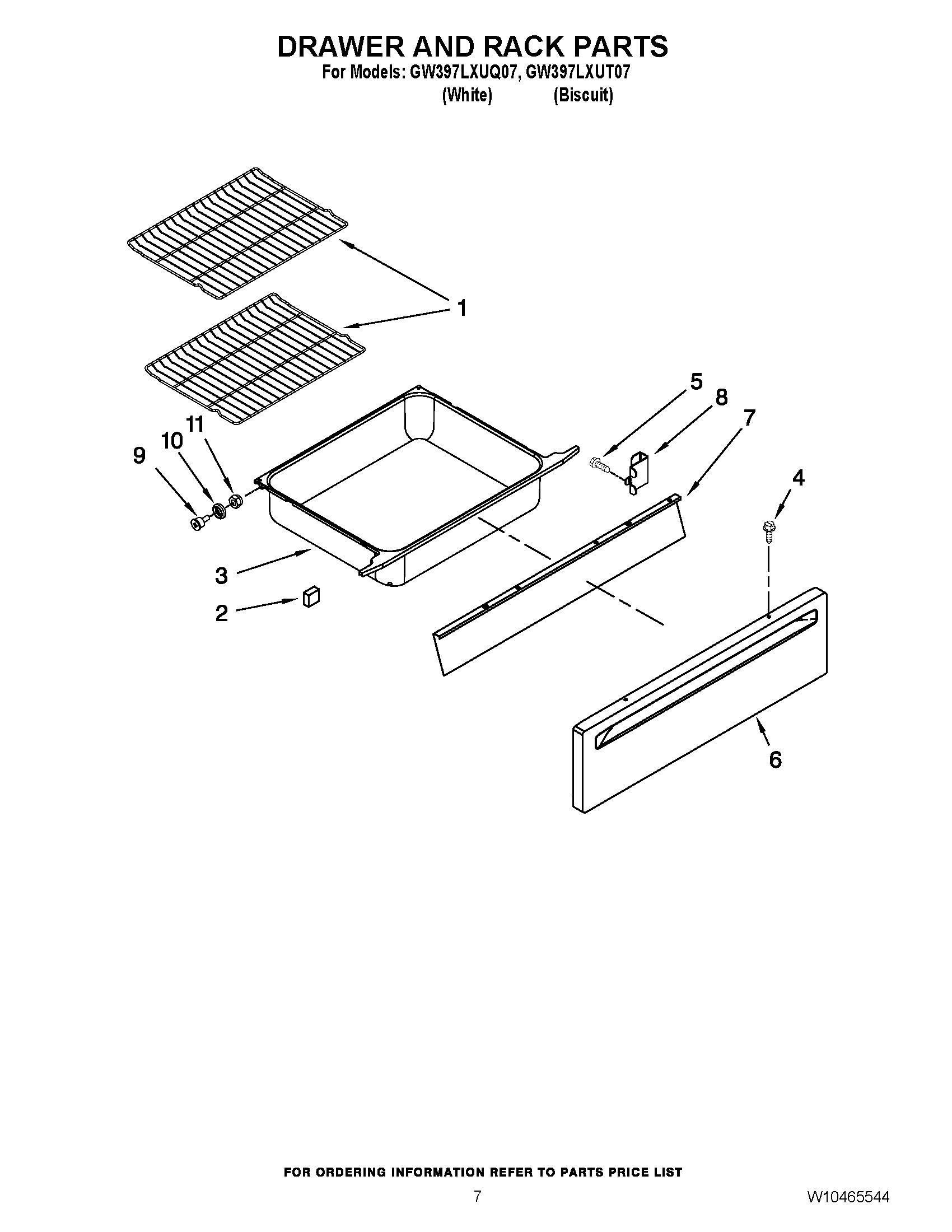

GW397LXUT07 05 – DRAWER AND RACK PARTS

GW397LXUT07 05 – DRAWER AND RACK PARTS

Written by

in

GW397LXUT07 05 – DRAWER AND RACK PARTS

Products

Position	Product
1	RACK, OVEN
2	Spacer, Rubber
3	Drawer, Storage
4	SCREW (WHITE)
4	Screw, Trim (Biscuit)
5	Screw
6	PANEL, DRAWER
6	PANEL, DRAWER (BISCUIT)
7	Lining, Drawer
8	Bracket, Drawer
9	Shaft, Roller
10	ROLLER, DRAWER
11	Nut
