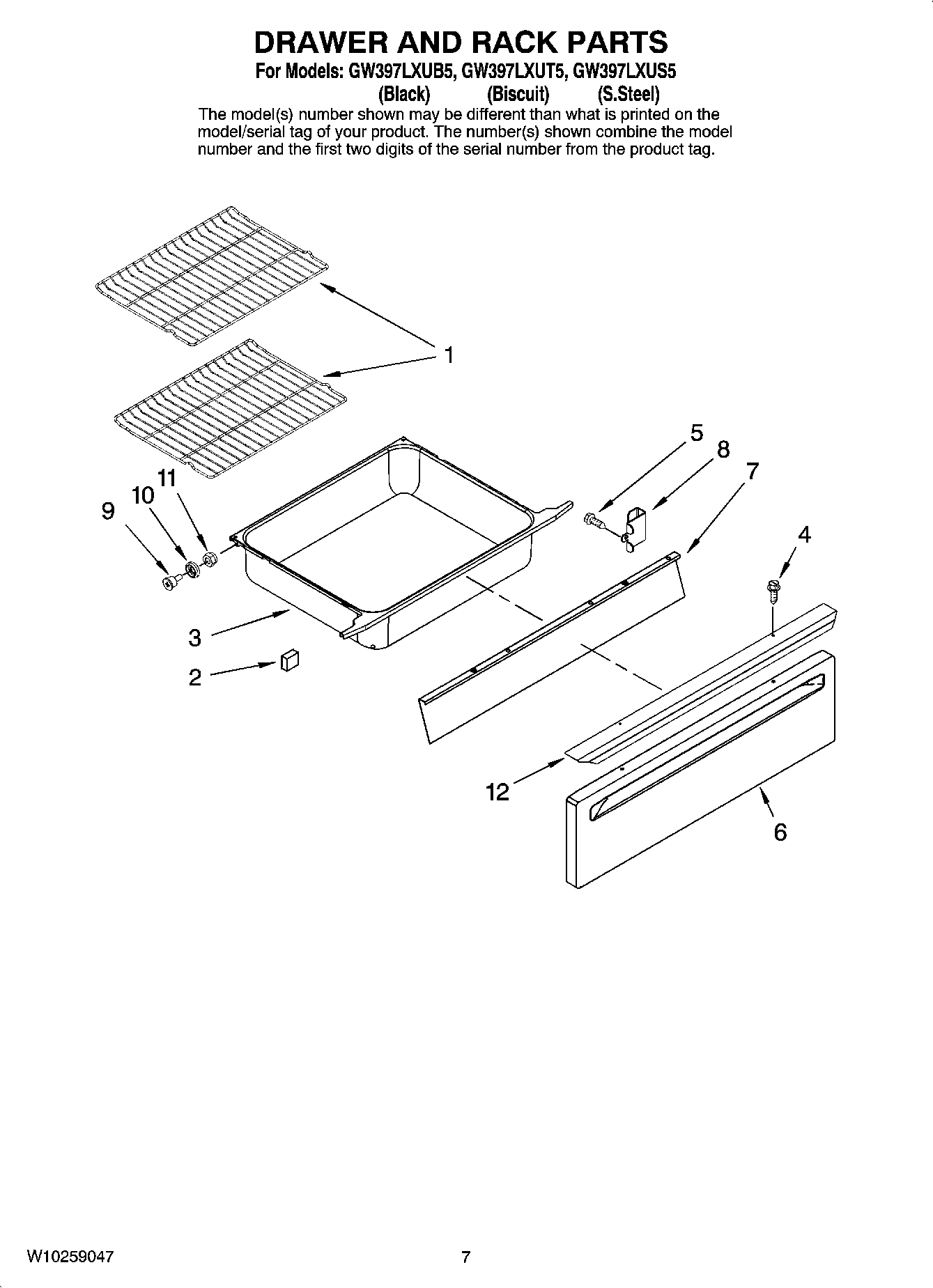

GW397LXUT5 05 – DRAWER AND RACK PARTS

Written by

Products

Position	Product
1	RACK, OVEN
2	Spacer, Rubber
3	Drawer, Storage
4	Screw
4	SCREW (BLACK)
4	Screw, Trim (Biscuit)
5	Screw
6	PANEL, DRAWER (BISCUIT)
6	Panel, Drawer (Black)
6	PANEL,DRAWER FRONT (STAINLESS)
7	Lining, Drawer
8	Bracket, Drawer
9	Roller, Drawer
10	Shaft, Roller
11	Nut
12	HANDLE, DRAWER STAINLESS MODEL
