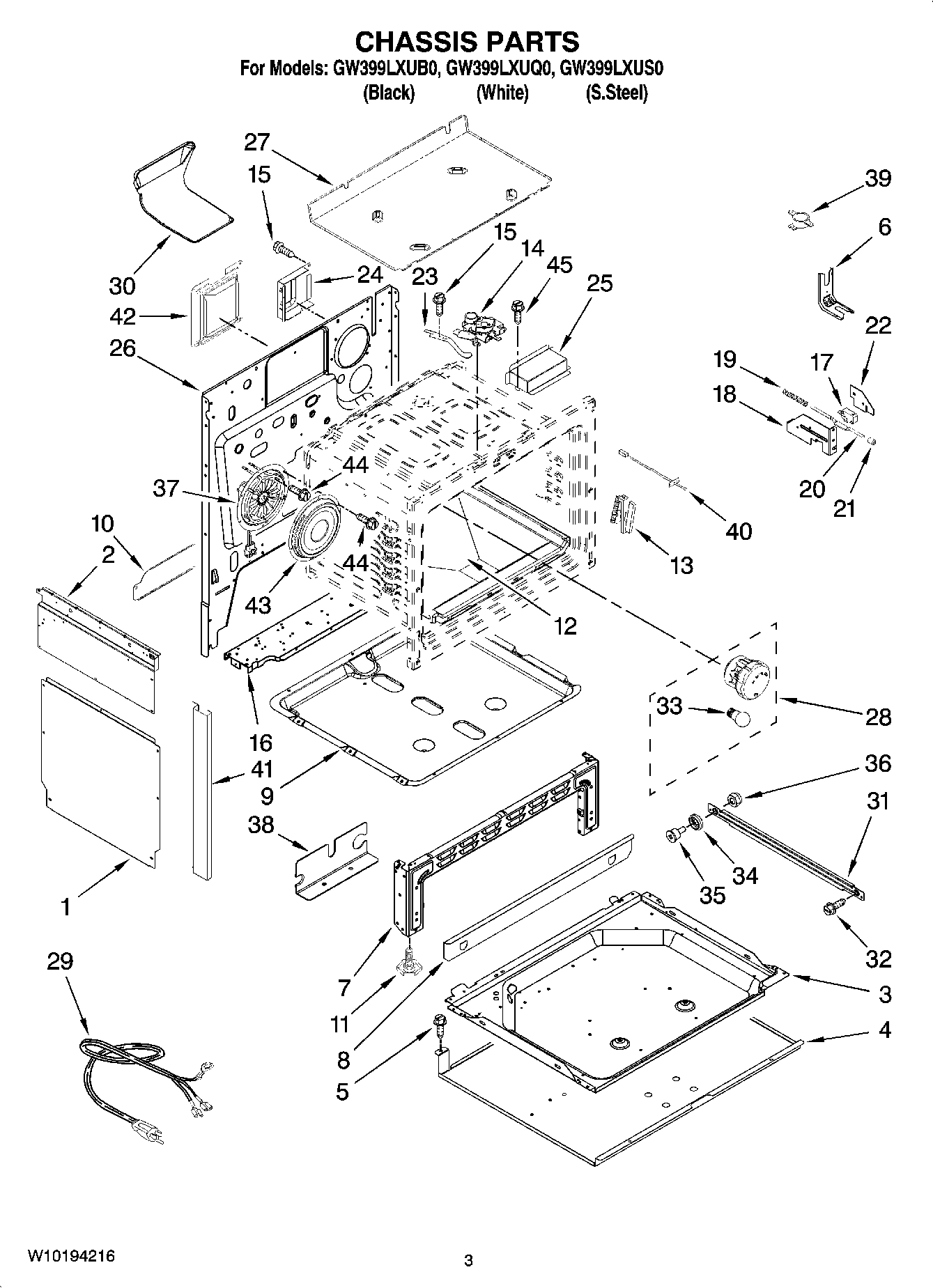

GW399LXUB0 03 – CHASSIS PARTS

Products

Position	Product
	Insulation
	Insulation, Drawer
	Insulation, Back
	Insulation, Control Shield
	Insulation, Wrap
	Insulation, Oven Bottom
1	Shield, Lower Side
2	Panel, Shield (Left)
2	2618F206-51 Whirlpool Panel
3	Retainer, Bottom
4	Shield, Warmer
5	SCREW
6	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
7	Pedestal, Front
8	Baffle, Oven Front
9	Pan, Burner
10	Extension, Back
11	WP74010805 Whirlpool Screw
12	WP2205F054-19 Whirlpool Oven Bottom
13	74011142 Whirlpool Stove Range Oven Door Hinge and Spring
14	74010819 Whirlpool Latch Assembly
15	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
16	Support
17	WP74008263 Whirlpool Door Switch
18	Bracket, Switch
19	Spring, Switch
20	Rod, Door Switch
21	Bumper, Rod
22	Insulator, Switch
23	Lever, Latch
24	Cover, Access
25	Cover, Door Lock
26	Main Back
27	Bottom,Burner Box
28	WP7407P182-60 Whirlpool Lamp
29	Cord, Power
30	Box, Assy Vent
31	Runner, Drawer (2)
32	SCREW
33	BULB, LIGHT
34	WP74004078 Whirlpool Door Roller
35	Shaft, Roller (2)
36	74005230 Whirlpool Oven Lock Nut (8-32)
37	Fan, Convection
38	Bracket,Pwr Supply
39	7450P030-60 Whirlpool Limit Switch
40	12001655 Whirlpool Oven Sensor
41	WP3608F138-71 Whirlpool Side Trim Assembly
41	WP3608F138-70 Whirlpool Side Trim
42	3804F300-51 Whirlpool Retainer
43	COVER,CONV.FAN
44	WP7101P434-60 Whirlpool Screw
45	WP90767 Whirlpool Screw
