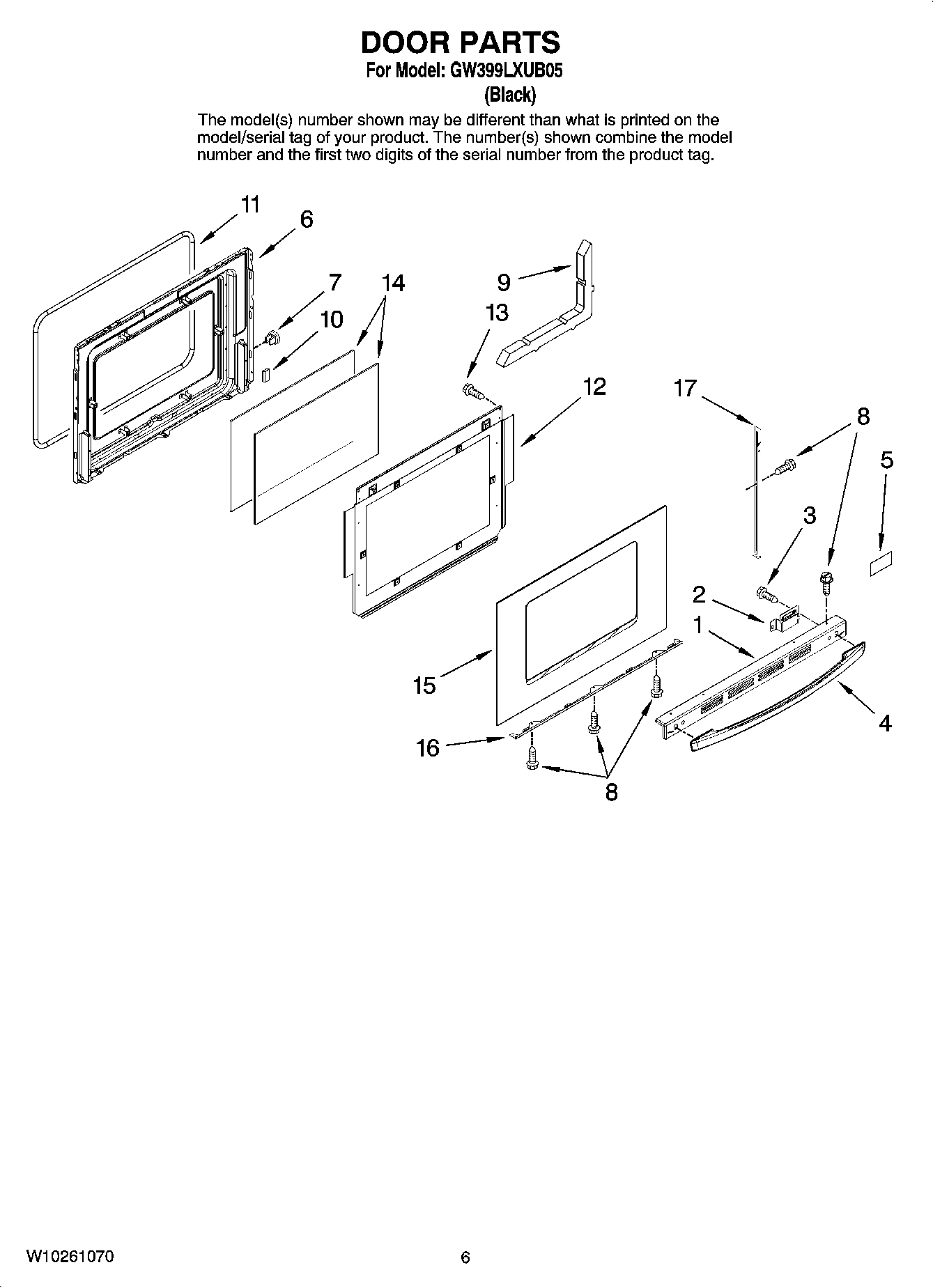

GW399LXUB05 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
2	Bracket, Handle (Left)
2	Bracket, Handle (Right)
3	Screw
4	W10118431 Whirlpool Door Handle
5	Name Plate
6	Lining, Door
7	NUT, SNAP
8	SCREW (BLACK)
9	Insulation, Door
10	Spacer, Rubber
11	GASKT-DOOR OVEN
12	Baffle, Retainer
13	Screw
14	GLASS, INNER
14	GLASS, DOOR (S.STEEL MDL ONLY)
15	Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (Black)
16	Trim, Door Bottom
17	Trim, Door Side (Right)
17	Trim, Door Side (Left)
