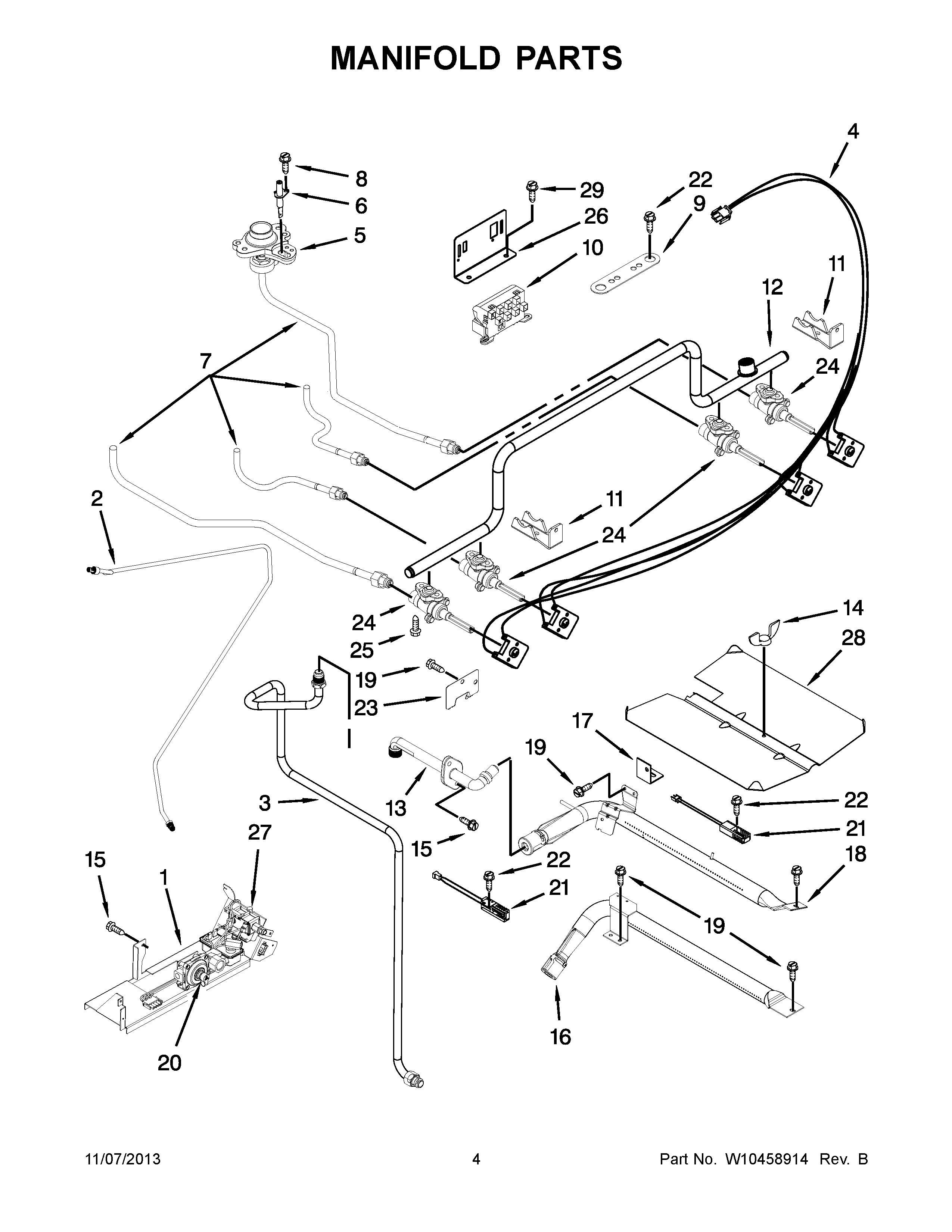

GW399LXUB06 03 – MANIFOLD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	Spuds, LP Gas (Kit of 4)
1	COVER, BNR VALVE
2	Tubing, Gas Supply
3	Tube, Broil
4	Tube, Broil
5	HOLDER, ORIFICE (RF, 12K)
5	HOLDER, ORIFICE (LF,RR-9.2K)
5	HOLDER, ORIFICE (LR & RR, 5K)
5	HOLDER, ORIFICE (LEFT FRONT, 16K)
6	WPW10110378 Whirlpool Surface Igniter
7	Tube, Burner (RR)
7	Tube, Burner (RF)
7	Tube, Burner (LR)
7	Tube, Burner (LF)
8	SCREW
9	Retainer, Base (4)
10	Spark Module
11	Bracket, Valve (4)
12	Pipe, Manifold
13	FITTING, BROILER
14	NUT, WING
15	W10185612 Whirlpool Screw
16	Burner, Bake
17	SUPPORT, BAKE BURNER
18	BURNER, BROILER
19	SCREW
20	Valve/Regulator
21	IGNITER (BAKE)
22	SCREW
23	COVER, IGNITOR WIRE
24	WPW10290838 Whirlpool Burner Valve
24	W10836481 Whirlpool Burner Valve
25	SCREW
26	SUPPORT, SPARK MODULE
27	Valve, Safety
28	BAFFLE, BURNER BROIL
28	BAFFLE, BURNER BAKE
29	SCREW (BLACK)
