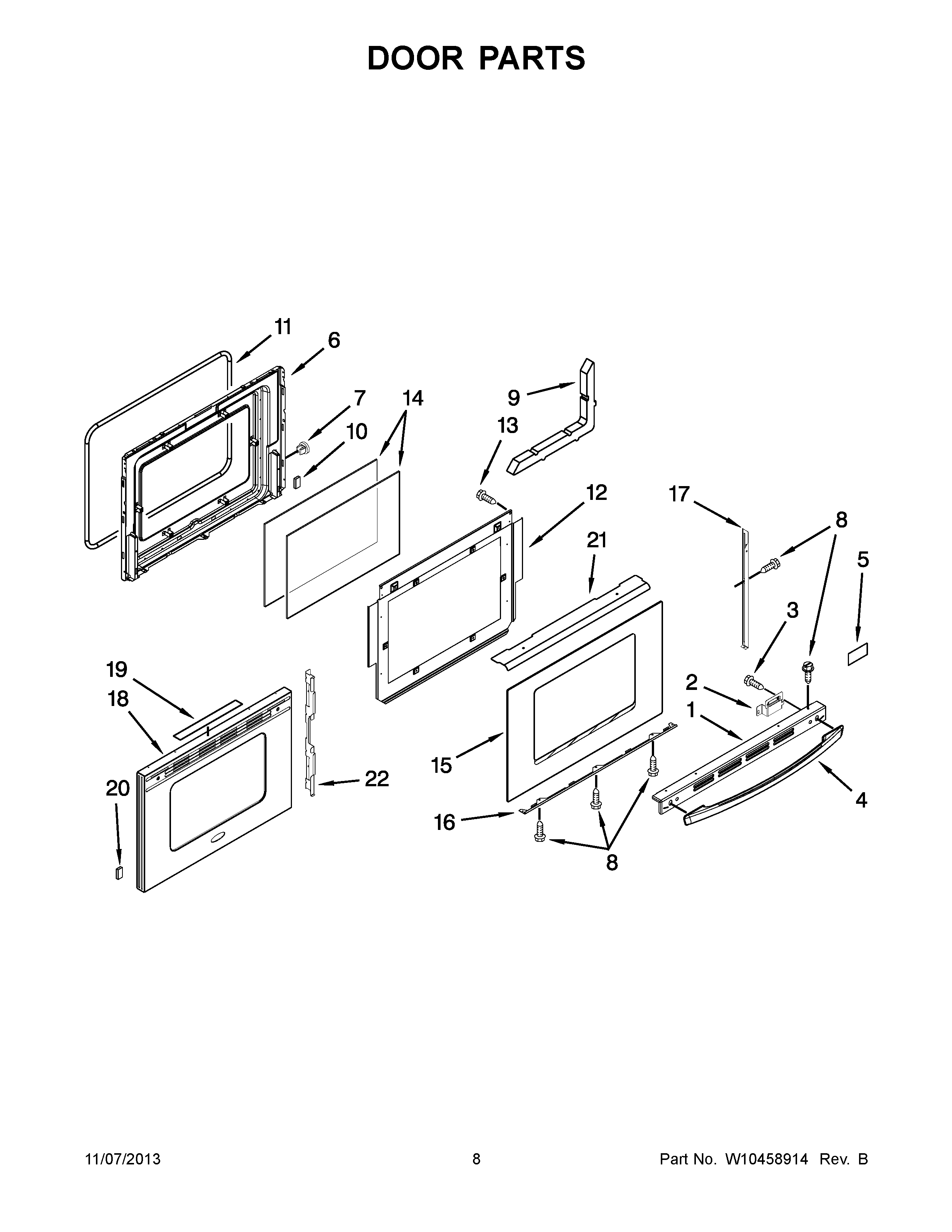

GW399LXUB06 05 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
2	Bracket, Handle (Right)
2	Bracket, Handle (Left)
3	Screw
4	WPW10144883 Whirlpool Door Handle
4	W10118431 Whirlpool Door Handle
5	W11178521 Whirlpool Dishwasher Nameplate
6	Lining, Door
7	NUT, SNAP
8	SCREW, PANEL (STAINLESS)
8	SCREW (BLACK)
9	Insulation, Door
10	Spacer, Rubber
11	GASKT-DOOR OVEN
12	Baffel, Retainer
13	SCREW
14	GLASS, INNER
15	PANEL, OUTER DOOR (BLACK)
16	Trim, Door Bottom
17	Trim, Door Side (Left)
17	Trim, Door Side (Right)
18	PANEL, OVEN DOOR (STAINLESS)
19	Insulation, Foil
20	Clip, Glass (2)
21	Shield, Door
22	Retainer, Glass
