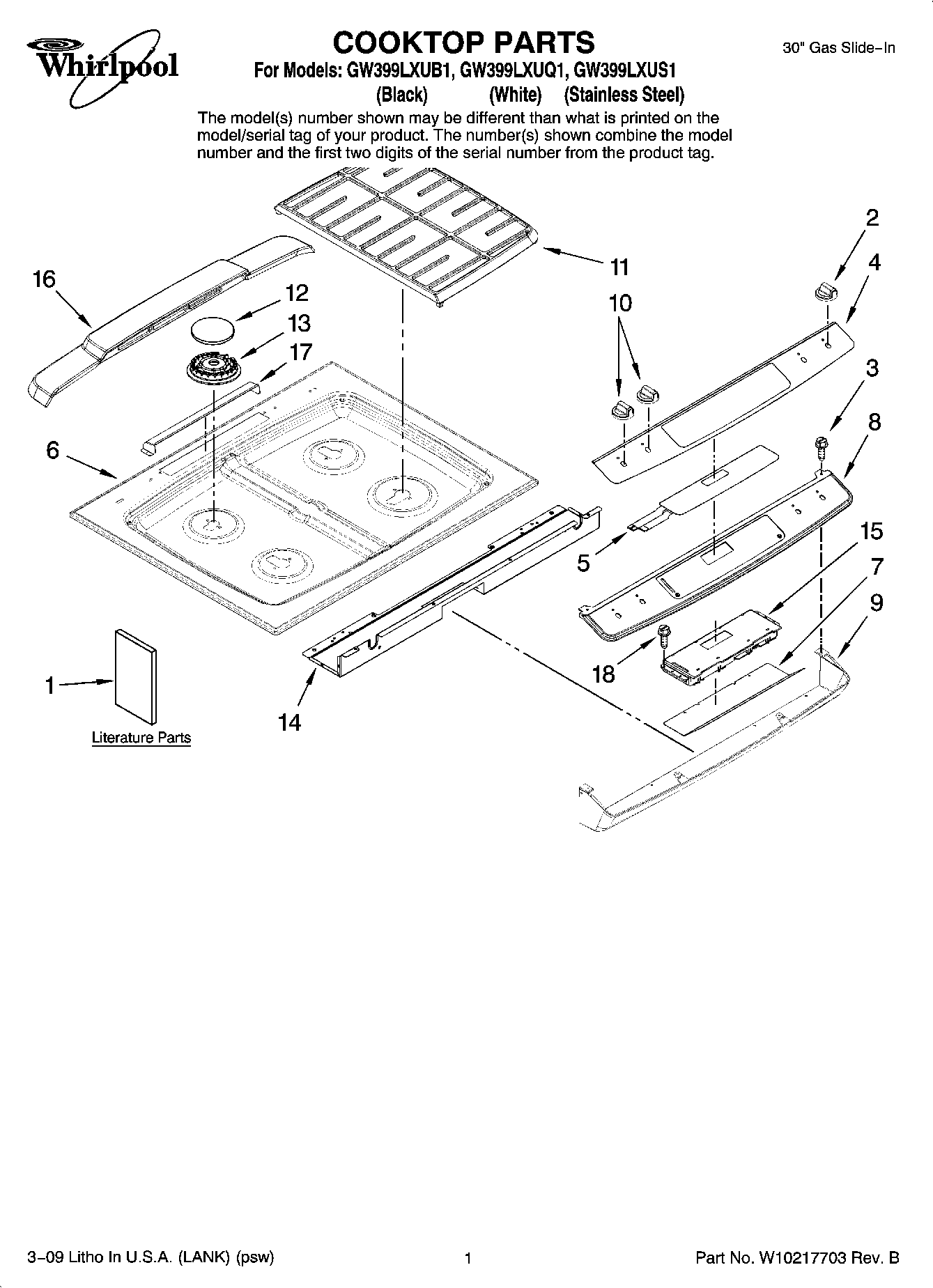

GW399LXUB1 01 – COOKTOP PARTS

GW399LXUB1 01 – COOKTOP PARTS

Written by

in

GW399LXUB1 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1Installation Instructions
1Owners Manual
2W10177201 Whirlpool Knob
2W10177198 Whirlpool Knob
374003640 Whirlpool Oven Screw
4OVERLAY (SS ONLY)
5Switch, Membrane (Black)
5SWITCH, MEMBRANE (WHITE)
6Cooktop (Black)
6Cooktop (White)
7Shield, Control
8Panel, Control (Black)
8Panel, Control (S.Steel)
8Panel, Control
9Panel, Control (LWR) (Black)
9Panel, Control (LWR) (White)
10WP7733P526-60 Whirlpool Knob
10W10177197 Whirlpool Knob
11Grate, Burner (2) (Gray)
11Grate, Burner (2) (Black)
12Cap, Burner (RF) (Gray)
127504P294-60 Whirlpool Burner Cap
127504P295-60 Whirlpool Burner Cap
12WP7504P298-60 Whirlpool Range Burner Cap
12WP7504P299-60 Whirlpool Burner Cap
12WP7504P300-60 Whirlpool Burner Cap
13WPW10406878 Whirlpool Burner Base (16K)
13WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
13WPW10406243 Whirlpool Burner Head Auxiliary 6K
14Support, Control Panel
15Control, (ERC)
16Cover, Vent (Black)
16Cover, Vent (Gray)
17Baffle, Vent Cover
18WP59002061 Whirlpool Microwave Screw
