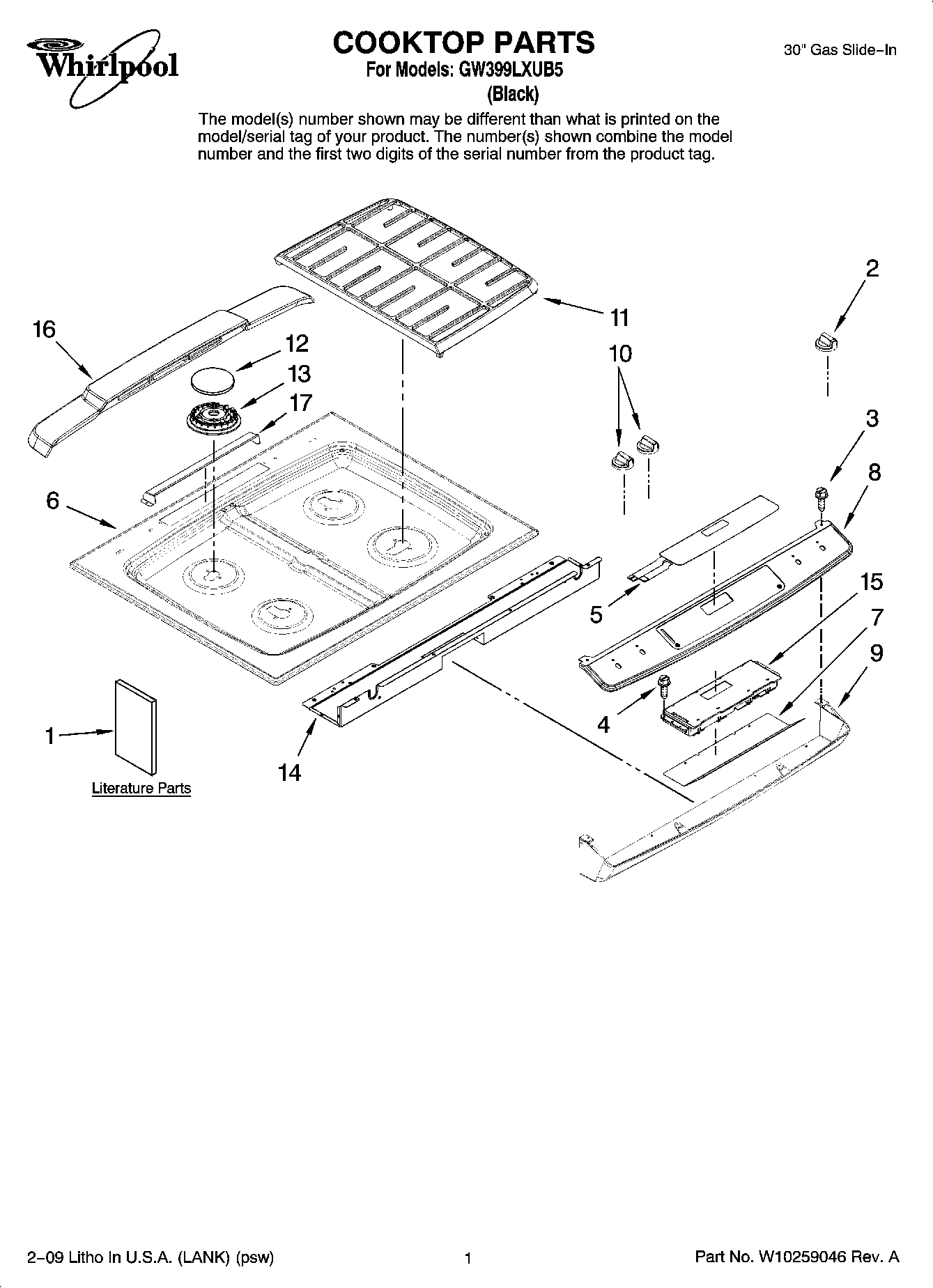

GW399LXUB5 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	Installation Instructions
1	Owners Manual
1	Safer Cooking Tips (French)
2	Knob, AccuSimmer (Black)
3	Screw
4	Screw
5	WPW10207933 Whirlpool Membrane Switch
6	Cooktop (Black)
7	Shield, Control
8	Panel, Control (Black)
9	PANEL,CONTROL(LWR) (BLACK)
10	KNOB, VALVE (BLACK)
11	GRATE, BURNER (BLACK)
12	WPW10183371 Whirlpool Burner Cap
12	WPW10183370 Whirlpool Burner Cap
12	WPW10183368 Whirlpool Burner Cap
13	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
13	Base, Burner (5K LR) (1)
13	WPW10406878 Whirlpool Burner Base (16K)
14	SUPPORT, CONTROL PANEL
15	Control, (ERC)
16	Cover, Vent (Black)
17	Baffle, Vent Cover
