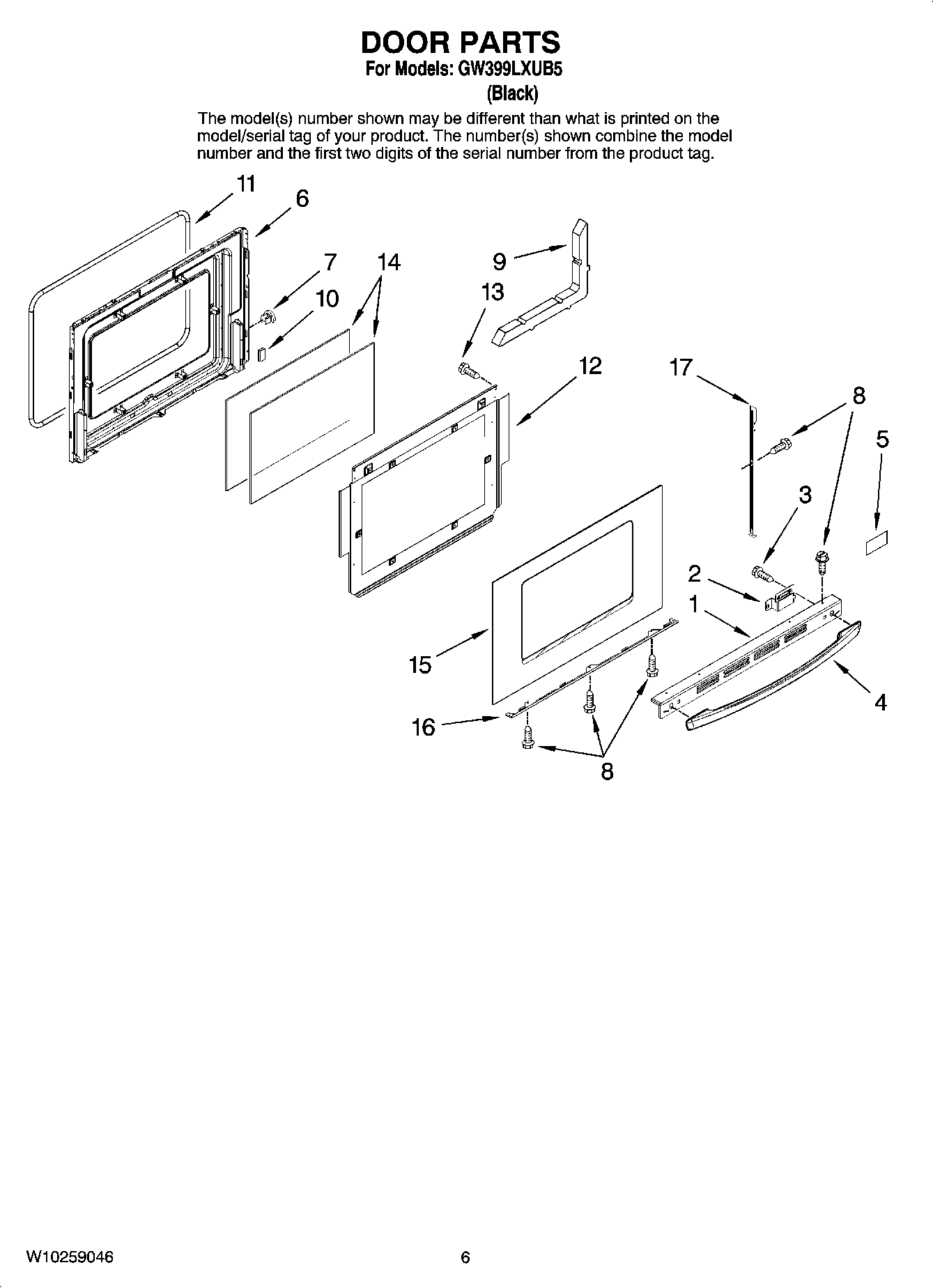

GW399LXUB5 04 – DOOR PARTS

Products

PositionProduct
1Trim, Door Top
2Bracket, Handle (Left)
2Bracket, Handle (Right)
3Screw
4W10118431 Whirlpool Door Handle
5Name Plate
6Lining, Door
7NUT, SNAP
8SCREW (BLACK)
9Insulation, Door
10Spacer, Rubber
11GASKT-DOOR OVEN
12Baffle, Retainer
13Screw
14GLASS, INNER
14GLASS, DOOR (S.STEEL MDL ONLY)
15Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (Black)
16Trim, Door Bottom
17Trim, Door Side (Right)
17Trim, Door Side (Left)
