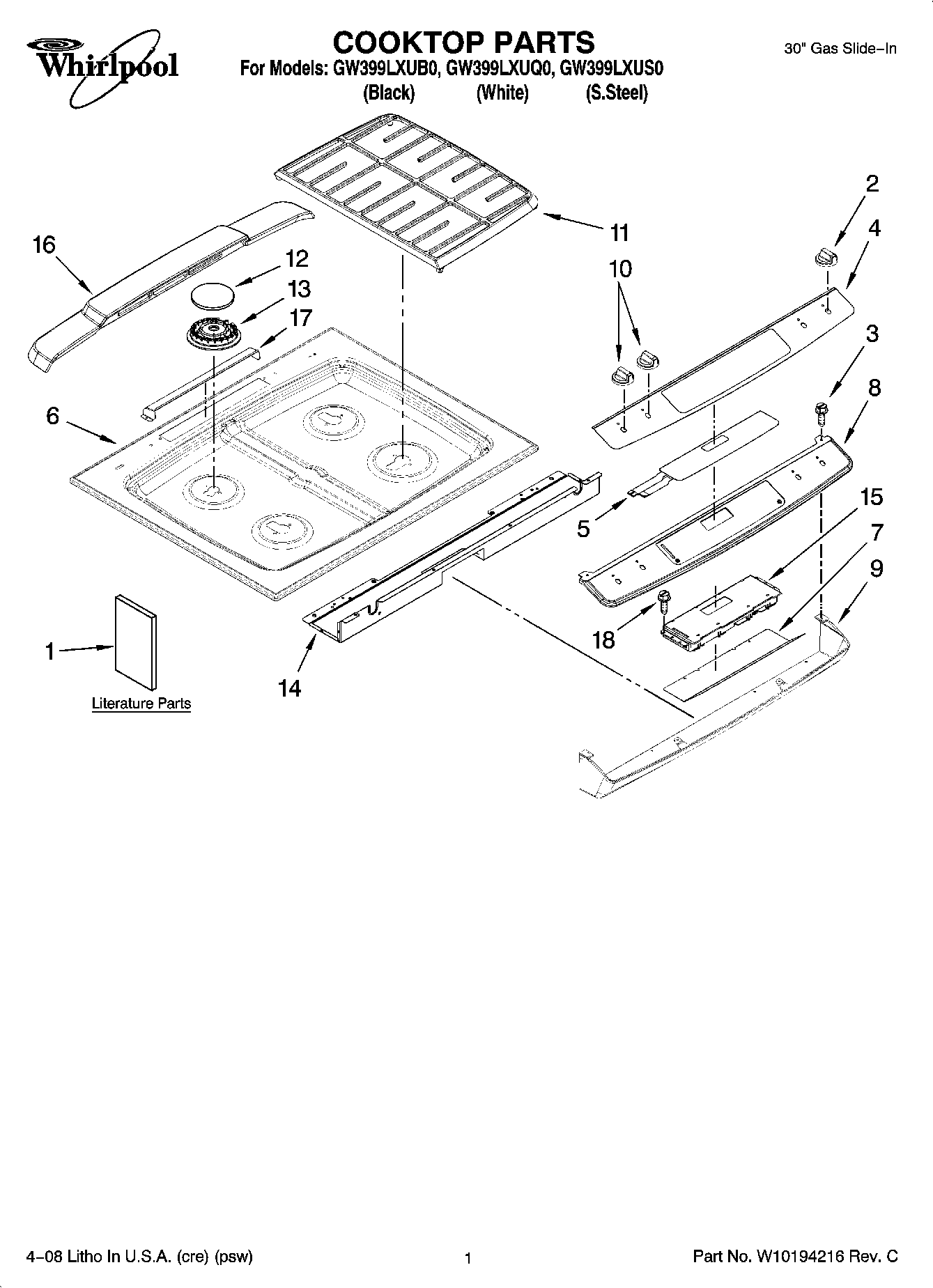

GW399LXUQ0 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions
1Owners Manual
2W10177201 Whirlpool Knob
2W10177198 Whirlpool Knob
374003640 Whirlpool Oven Screw
4Overlay (S.Steel Mdl Only)
5Membrane, Switch (White Mdl)
5Membrane, Switch (Black & SS Mdls)
6Cooktop (Black)
6Cooktop (White)
7Shield, Control
8Panel, Control (Black)
8Panel, Control
8Panel, Control (S.Steel)
9Panel, Control (LWR) (Black)
9Panel, Control (LWR) (White)
10W10177197 Whirlpool Knob
10WP7733P526-60 Whirlpool Knob
11Grate, Burner (2) (Gray)
11Grate, Burner (2) (Black)
12WP7504P300-60 Whirlpool Burner Cap
12WP7504P299-60 Whirlpool Burner Cap
127504P294-60 Whirlpool Burner Cap
127504P295-60 Whirlpool Burner Cap
12Cap, Burner (RF) (Gray)
12WP7504P298-60 Whirlpool Range Burner Cap
13WPW10406243 Whirlpool Burner Head Auxiliary 6K
13WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
13WPW10406878 Whirlpool Burner Base (16K)
14Support, Cntl Pnl
15Control, (ERC)
16Cover, Vent (Black)
16Cover, Vent (Gray)
17Baffle, Vent Cover
18WP59002061 Whirlpool Microwave Screw
