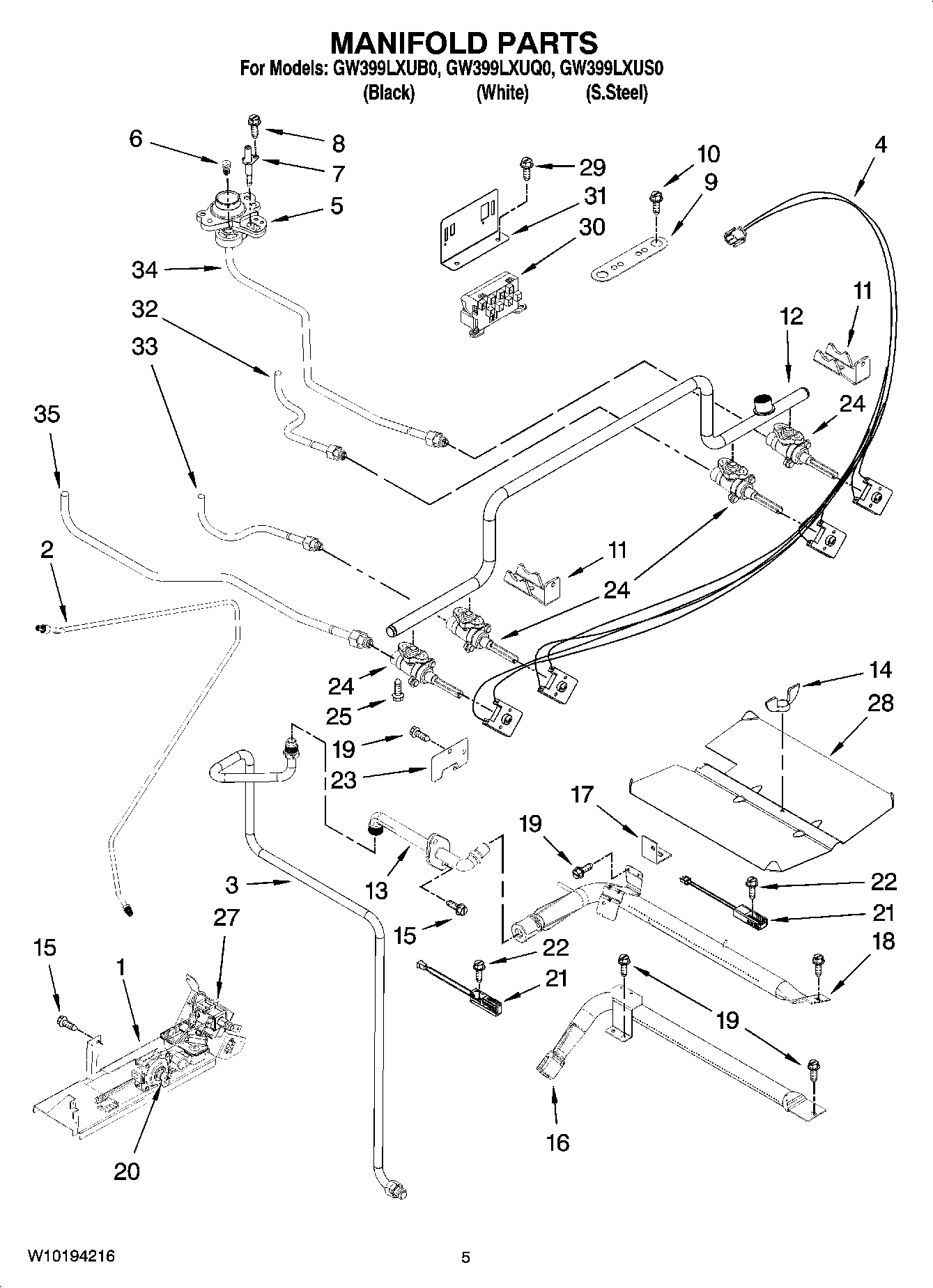

GW399LXUQ0 04 – MANIFOLD PARTS

Products

Position	Product
	Following Parts Not Illustrated
	Spuds, LP Gas (Kit of 4)
1	Cover, Bnr Valve
2	Tubing, Gas Supply
3	Tube, Broil
4	Harness, Valve Includes Switches
5	WPW10407680 Whirlpool Orifice Holder
5	WPW10407681 Whirlpool Orifice Holder
5	Orifice, Holder (9.2K,RR)
5	74010961 Whirlpool Oven Holder
6	W10156836 Whirlpool Orifice
6	Orifice (LR)
6	W10156136 Whirlpool Orifice
7	WP74009958 Whirlpool Spark Electrode Assembly
8	WP8273062 Whirlpool Screw
9	Retainer, Base (4)
10	SCREW
11	Bracket, Valve (4)
12	W10177097 Whirlpool Dishwasher Manifold
13	WP74010901 Whirlpool Broil Fitting Assembly
14	NUT, WING
15	Screw
16	Burner, Bake
17	Support, Bake Bnr
18	Burner, Broil
19	WP7101P434-60 Whirlpool Screw
20	WP74006035 Whirlpool Regulator
21	WP7432P136-60 Whirlpool Oven Igniter
21	74007498 Whirlpool Range Flat Igniter
22	Screw
23	COVER, IGNITOR WIRE
24	W10836481 Whirlpool Burner Valve
24	WPW10290838 Whirlpool Burner Valve
25	SCREW
27	WP7501P232-60 Whirlpool Valve
28	Baffle, Bake (Broil)
28	Baffle, Bake (Bake)
29	SCREW
30	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
31	Support, Spark Mod
32	TUBE-BRNR
33	Tube, Burner (LF)
34	Tube, Burner (RR)
35	Tube, Burner (LR)
