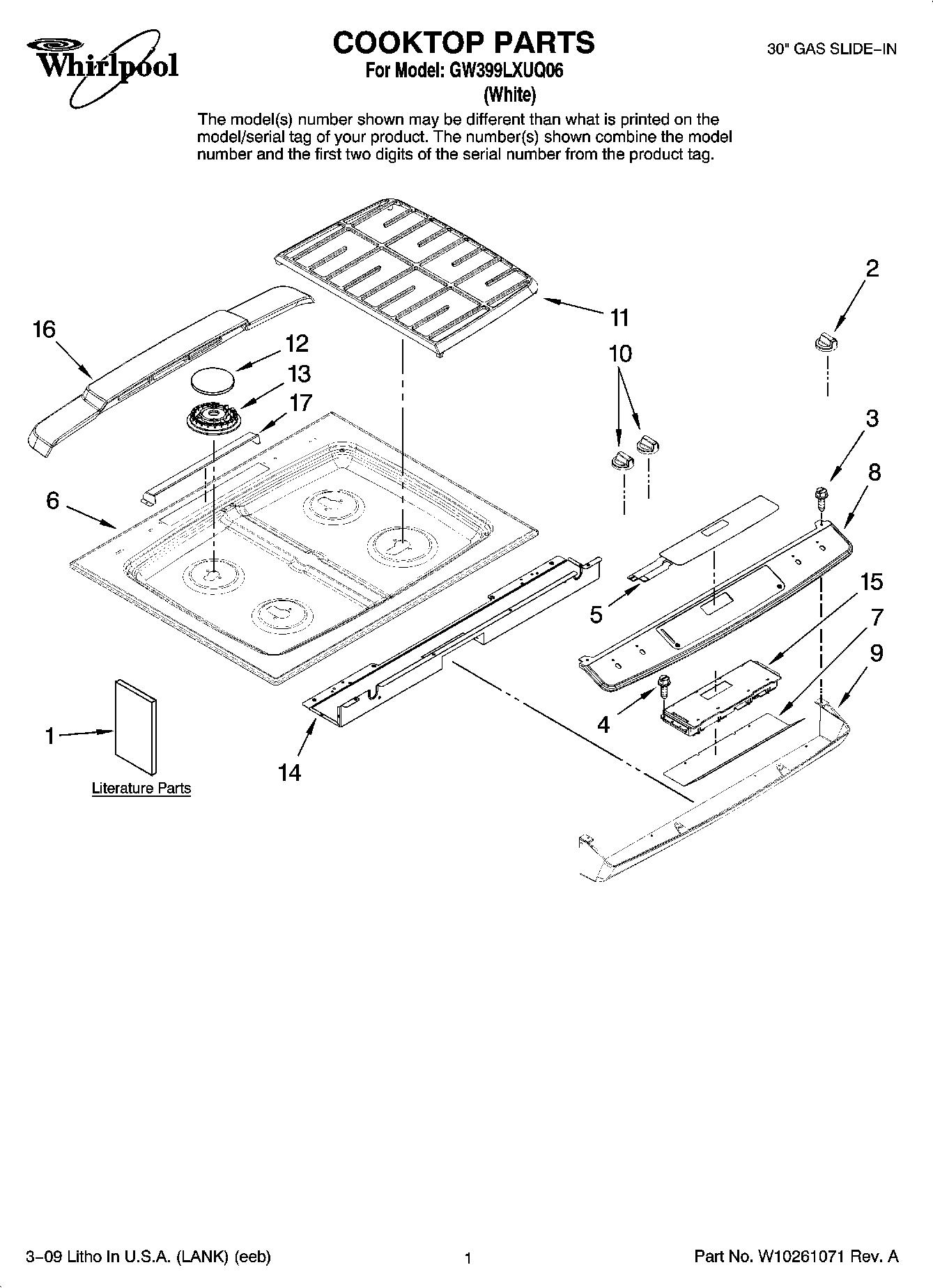

GW399LXUQ06 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	Installation Instructions
1	Owners Manual
2	KNOB, (ACCUSIMMER)
3	Screw
4	Screw
5	WPW10207935 Whirlpool Membrane Switch
6	Cooktop
7	Shield, Control
8	Panel, Control
9	PANEL,CONTROL(LWR) (WHITE)
10	Knob, Valve (3)
11	Grate, Burner (2)
12	W10169973 Whirlpool Burner Cap
12	WPW10173832 Whirlpool Burner Cap
12	WPW10169975 Whirlpool Burner Cap
13	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
13	WPW10406878 Whirlpool Burner Base (16K)
13	Base, Burner (5K LR) (1)
14	SUPPORT, CONTROL PANEL
15	Control, (ERC)
16	Cover, Vent
17	Baffle, Vent Cover
