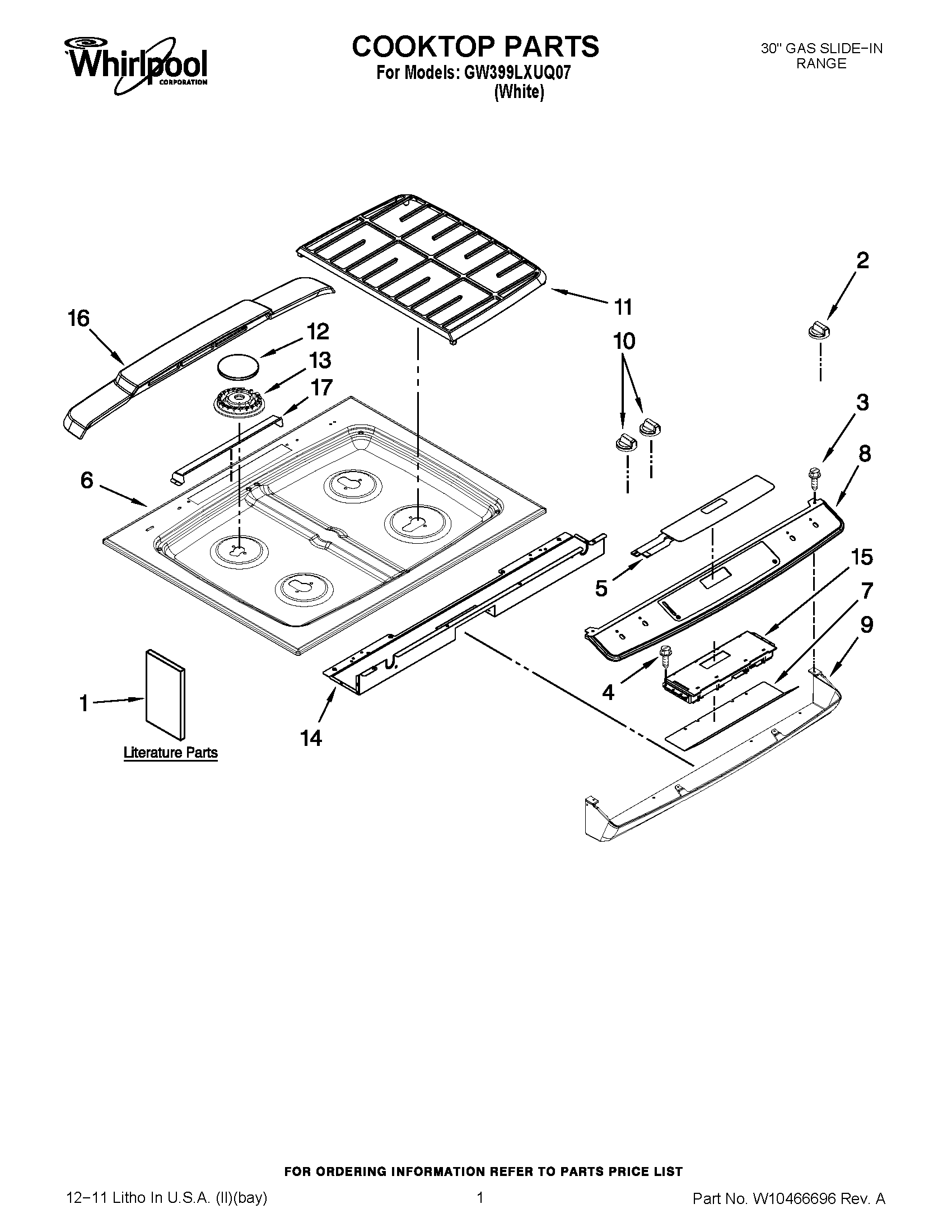

GW399LXUQ07 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1DIAGRAM, WIRING (FRENCH)
1DIAGRAM, WIRING (ENGLISH)
1Installation Instructions
1Owners Manual
2KNOB, (ACCUSIMMER)
3Screw
4Screw
5WPW10207935 Whirlpool Membrane Switch
6COOKTOP
7Shield, Control
8Panel, Cntl Shield
9PANEL,CONTROL(LWR) (WHITE)
10Knob, Valve (3)
11Grate, Burner (2)
12WPW10169975 Whirlpool Burner Cap
13WPW10406878 Whirlpool Burner Base (16K)
13WPW10406243 Whirlpool Burner Head Auxiliary 6K
13WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
14SUPPORT, CONTROL PANEL
15Control, (ERC)
16Cover, Vent
17Baffle, Vent Cover
