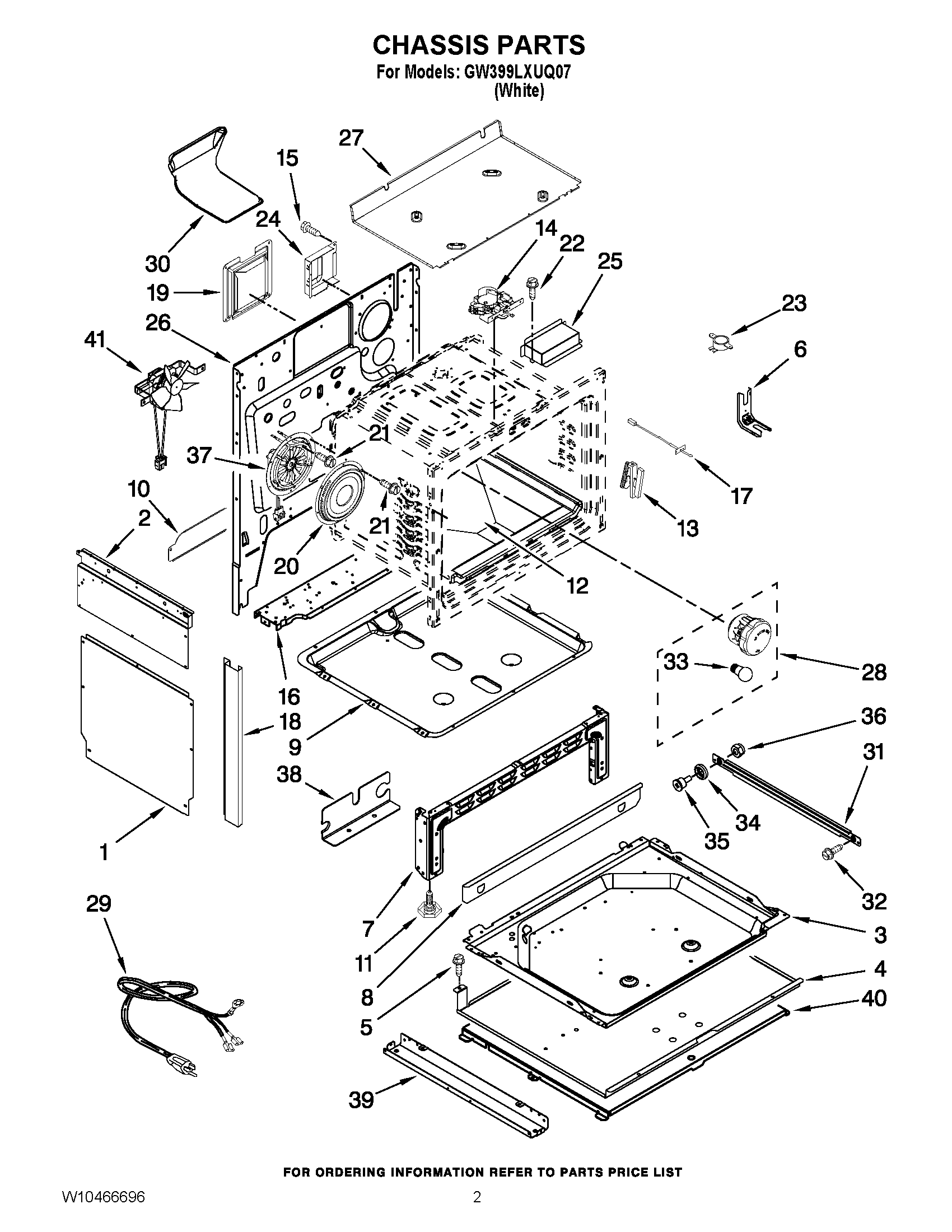

GW399LXUQ07 02 – CHASSIS PARTS

Products

Position	Product
NI	Insulation, Back
NI	Insulation, Wrap
NI	INSULATION, OVEN BOTTOM
1	Shield, Lower Side
2	Panel, Shield (Right)
2	Panel, Shield (Left)
3	RETAINER, INSUL (BOTTOM)
4	SHIELD, WARMER
5	Screw
6	BRACKET, ANTI TIP
7	W10271711 Whirlpool Support Bracket
8	Baffle, Oven Front
9	Pan, Burner
10	Extension, Back
11	Leg, Leveling
12	Bottom, Oven
13	HINGE
14	WPW10274035 Whirlpool Door Latch
15	SCREW
16	Support
17	SENSOR, OVEN
18	Trim, Side
19	RETAINER, INSUL.
20	COVER,CONV.FAN
21	SCREW
22	SCREW
23	SWITCH, HI-LIMIT
24	Cover, Main Wire
25	COVER, DOOR LATCH
26	Main Back
27	BOTTOM, BURNER BOX
28	Light Assembly
29	INSULATOR, CORD
30	Box, Assy Vent
31	RUNNER, DRAWER
32	SCREW
33	BULB, LIGHT
34	ROLLER, DRAWER
35	Shaft, Roller
36	Nut, Lock
37	FAN, CONVECTION
38	BRACKET,PWR SUPPLY
39	Pedestal, Bottom
40	SHIELD, HEAT POUCH
41	WPW10586440 Whirlpool Blower Fan
