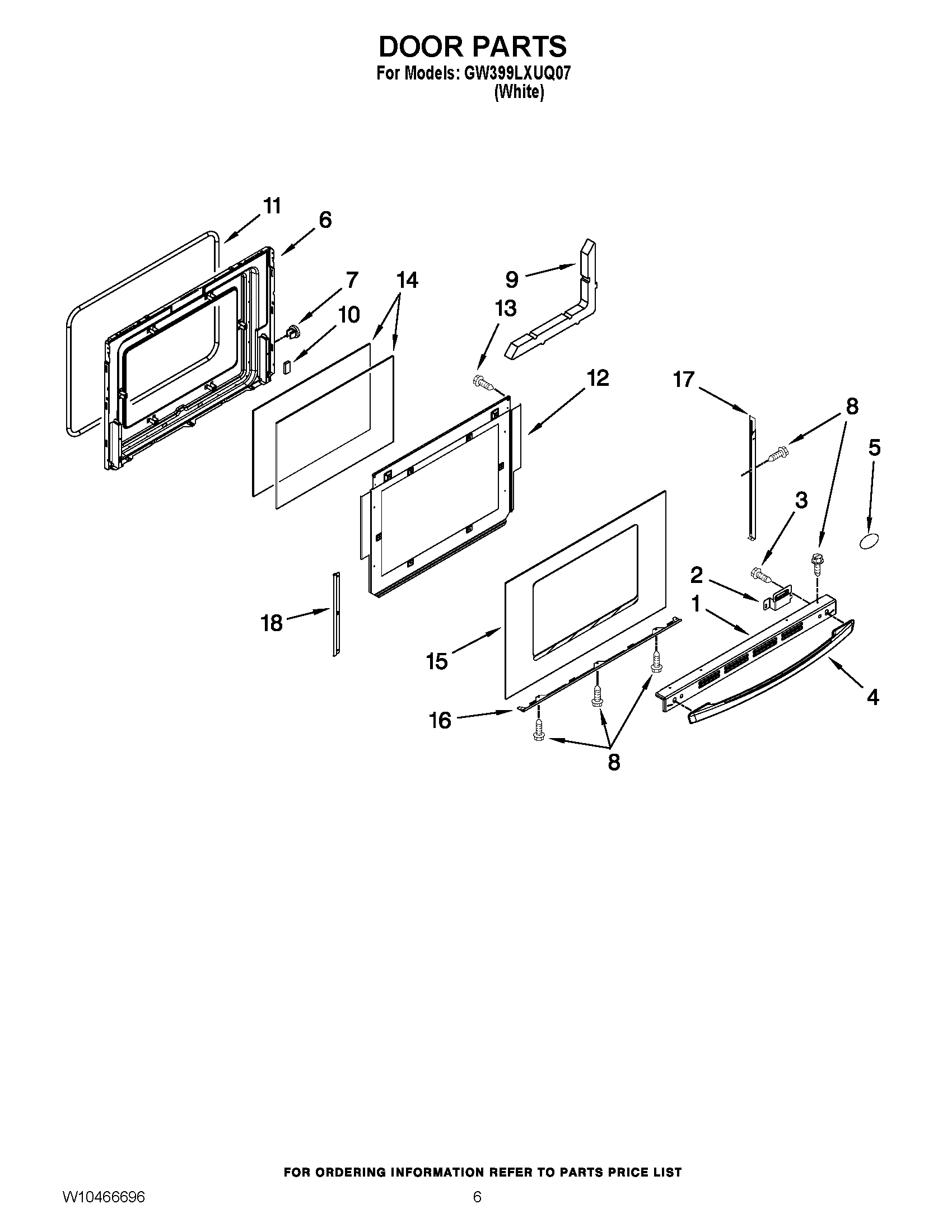

GW399LXUQ07 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
2	Bracket, Handle (Left)
2	Bracket, Handle (Right)
3	Screw
4	WPW10118430 Whirlpool Door Handle
5	NAMEPLATE
6	Lining, Door
7	NUT, SNAP
8	SCREW (WHITE)
9	Insulation, Door
10	Spacer, Rubber
11	GASKT-DOOR OVEN
12	Baffel, Retainer
13	SCREW
14	GLASS, INNER
15	PANEL, OUTER DOOR
16	Trim, Door Bottom
17	TRIM, DOOR SIDE (BLACK, RIGHT)
17	TRIM, DOOR SIDE (BLACK, LEFT)
18	Bracket, Glass
