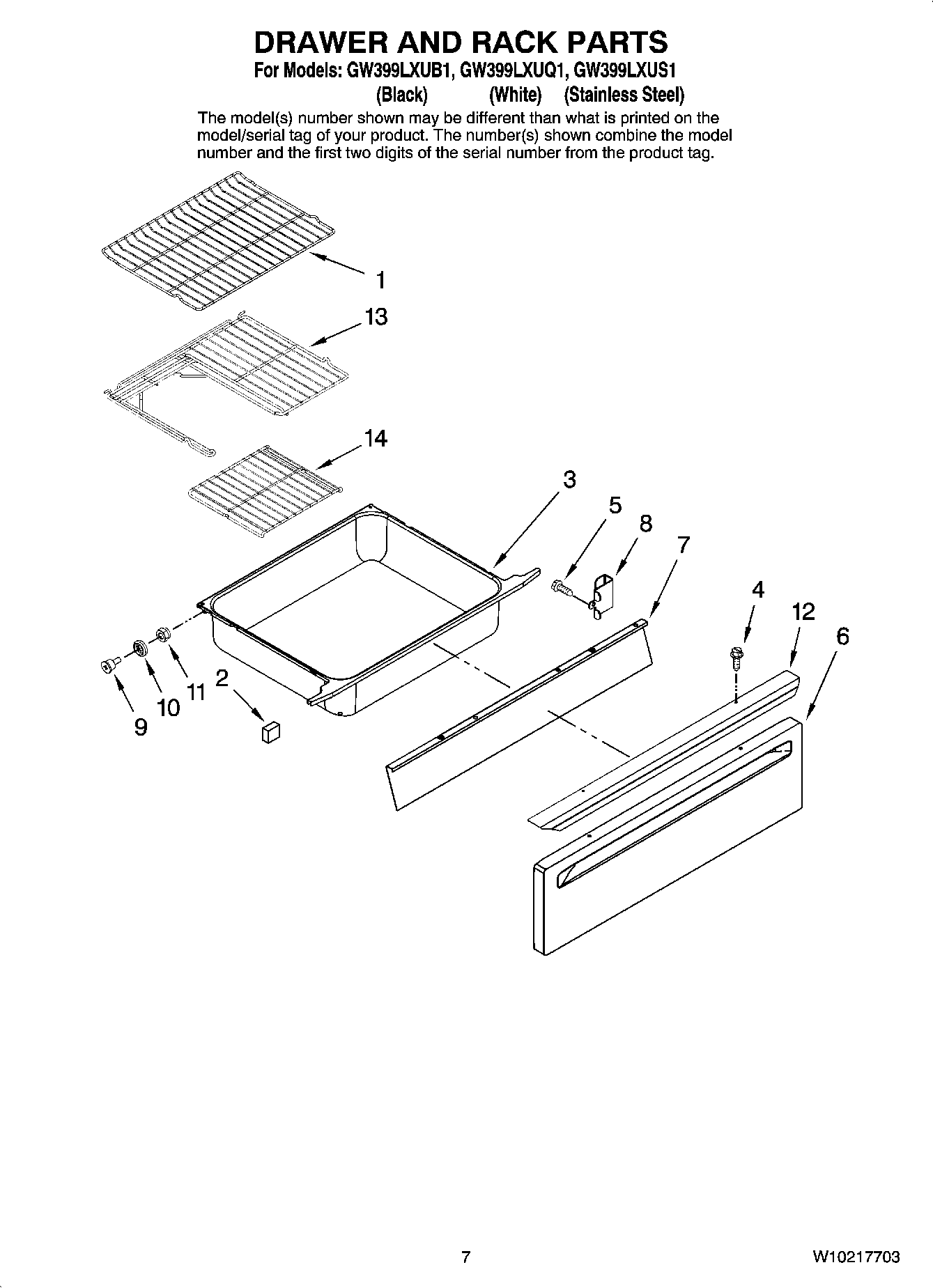

GW399LXUQ1 05 – DRAWER AND RACK PARTS

Products

Position	Product
1	Rack, Oven (2)
2	WP74005546 Whirlpool RU Spacer
3	Drawer, Storage
4	Screw, Panel (S.Steel)
4	W10828565 Whirlpool Screw
4	WP98008544 Whirlpool Screw Assembly
5	SCREW
6	PANEL,DRAWER FRONT (STAINLESS)
6	Panel, Drawer (Black)
6	Panel, Drawer (White)
7	Lining, Drawer
8	Bracket, Drawer
9	WP74004078 Whirlpool Door Roller
10	Shaft, Roller (2)
11	Nut
12	WPW10144883 Whirlpool Door Handle
13	WPW10273862 Whirlpool Oven Rack
14	Insert, Rack
