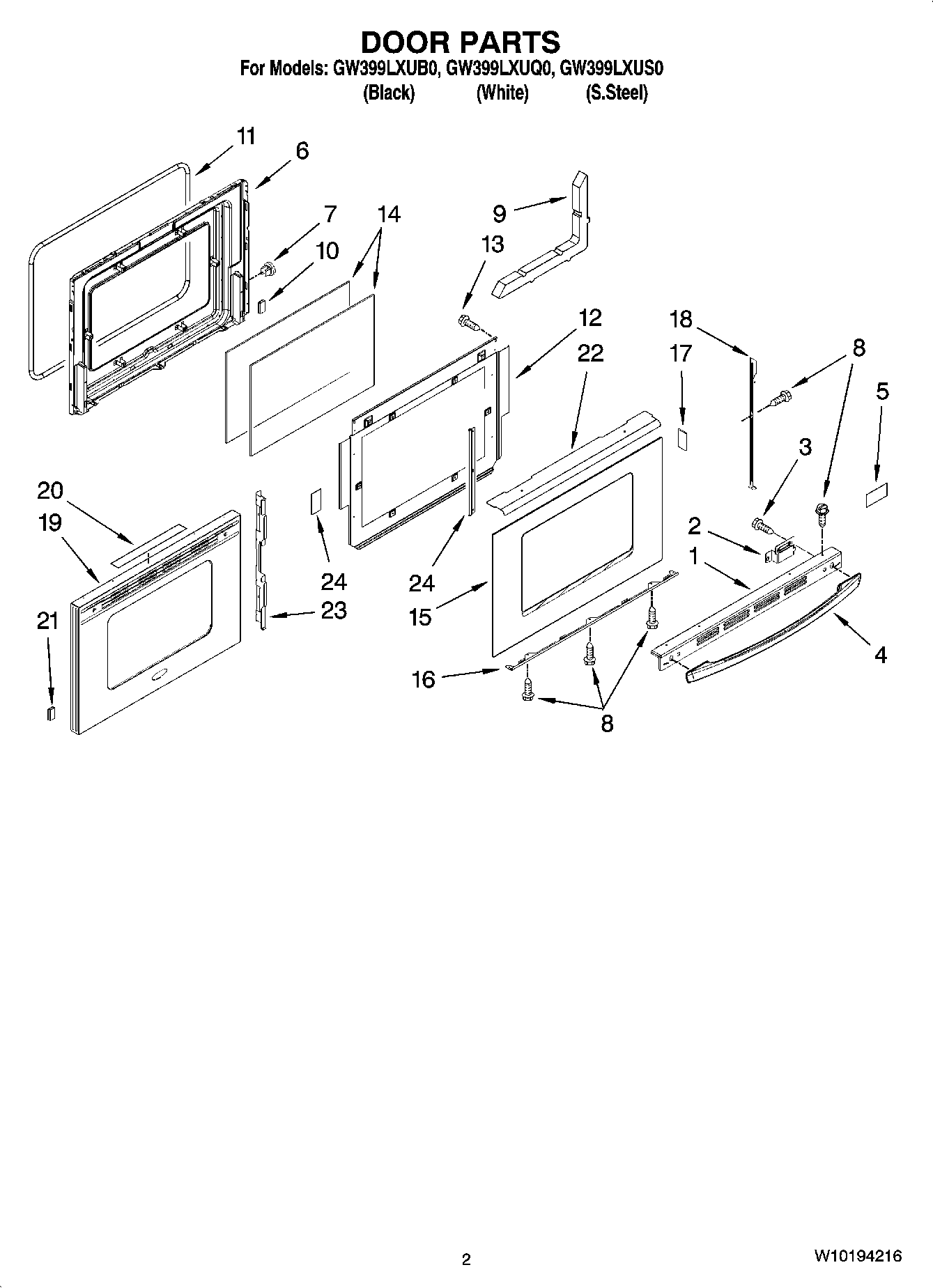

GW399LXUS0 02 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top (Black)
1	WP3608F141-71 Whirlpool Door Trim
2	3801F832-45 Whirlpool Bracket
2	3801F831-45 Whirlpool Bracket Assembly
3	WP74006515 Whirlpool Washer Screw
4	W10118431 Whirlpool Door Handle
4	WPW10144883 Whirlpool Door Handle
4	WPW10118430 Whirlpool Door Handle
5	Name Plate
6	Liner, Door
7	WP74001574 Whirlpool Snap Nut
8	W10828565 Whirlpool Screw
8	WP98008544 Whirlpool Screw Assembly
9	Insulation, Door
9	WP74010043 Whirlpool Insulation
10	WP74005546 Whirlpool RU Spacer
11	WP74009029 Whirlpool Door Gasket
11	Seal, Door
12	3601F373-51 Whirlpool Baffle
13	SCREW
14	74003645 Whirlpool Range Oven Door Inner Glass
14	Glass, Coated
15	Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (Black)
15	Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (White)
16	Trim, Door Bottom (Black)
16	WP3807F708-71 Whirlpool Support
17	Tape, Protective
17	Tape, White
17	WPL 74003664
18	WP3608F117-70 Whirlpool Door Trim
18	WP3608F116-71 Whirlpool Door Trim
18	WP3608F117-71 Whirlpool Door Trim
18	WP3608F116-70 Whirlpool Door Trim
19	GLASS, DOOR (S.STEEL) (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS))
20	74011048 Whirlpool Oven Insulation
21	Clip, Glass (2)
22	Shield, Door
23	Retainer, Glass
24	3801F886-51 Whirlpool Mounting Bracket
