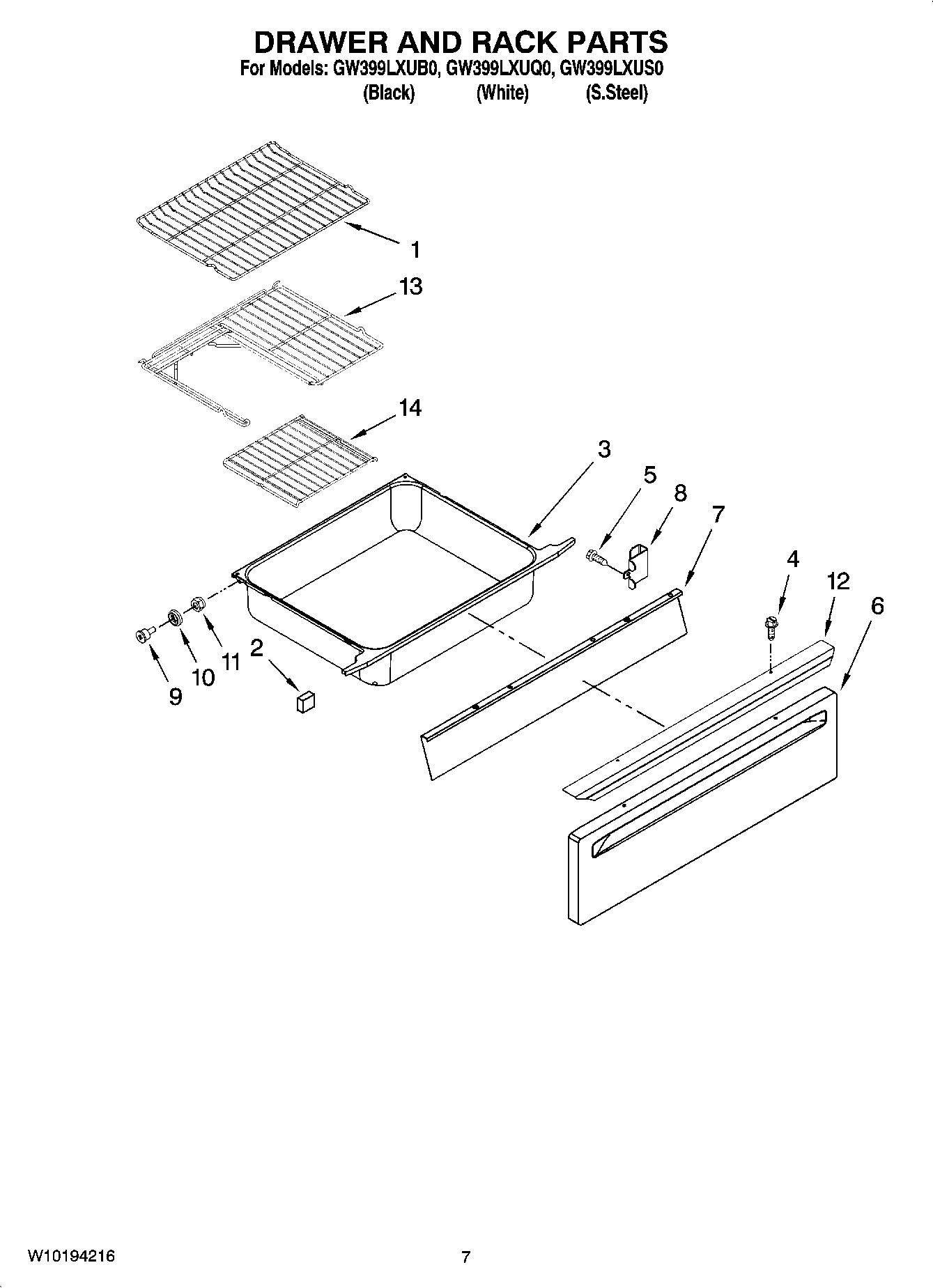

GW399LXUS0 05 – DRAWER AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI151720A
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	8212471 Whirlpool Oven Paint
	Grease
	W10173467 Whirlpool Wire Harness
	WIRING HARNESS PARTS, SCREW, GROUND
	WPL 74010849
	WPL ARI151715A
	W10160396 Whirlpool Wire Harness
	W10160395 Whirlpool Wire Harness
	WPL ARI151716A
	WPL ARI151717A
	WPL ARI151718A
	WPL ARI151719A
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	511873 Whirlpool Refrigerator Paint
	799344 Whirlpool Refrigerator Paint
	Enamel, Black (1 Qt. Uncut)
	WPL 799832
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	WPW10208653 Whirlpool Insulation
	242831 Whirlpool Oven Wire
	350942 Whirlpool Spray Paint
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	FOIL, ALUMINUM OVEN (18“ X 25 )
1	Rack, Oven (2)
2	WP74005546 Whirlpool RU Spacer
3	Drawer, Storage
4	Screw, Panel (S.Steel)
4	WP98008544 Whirlpool Screw Assembly
4	W10828565 Whirlpool Screw
5	SCREW
6	Panel, Drawer (White)
6	Panel, Drawer (S.Steel)
6	Panel, Drawer (Black)
7	Lining, Drawer
8	Bracket, Drawer
9	WP74004078 Whirlpool Door Roller
10	Shaft, Roller (2)
11	Nut
12	Handle (S.Steel Mdl Only)
13	WPW10273862 Whirlpool Oven Rack
14	Insert, Rack
