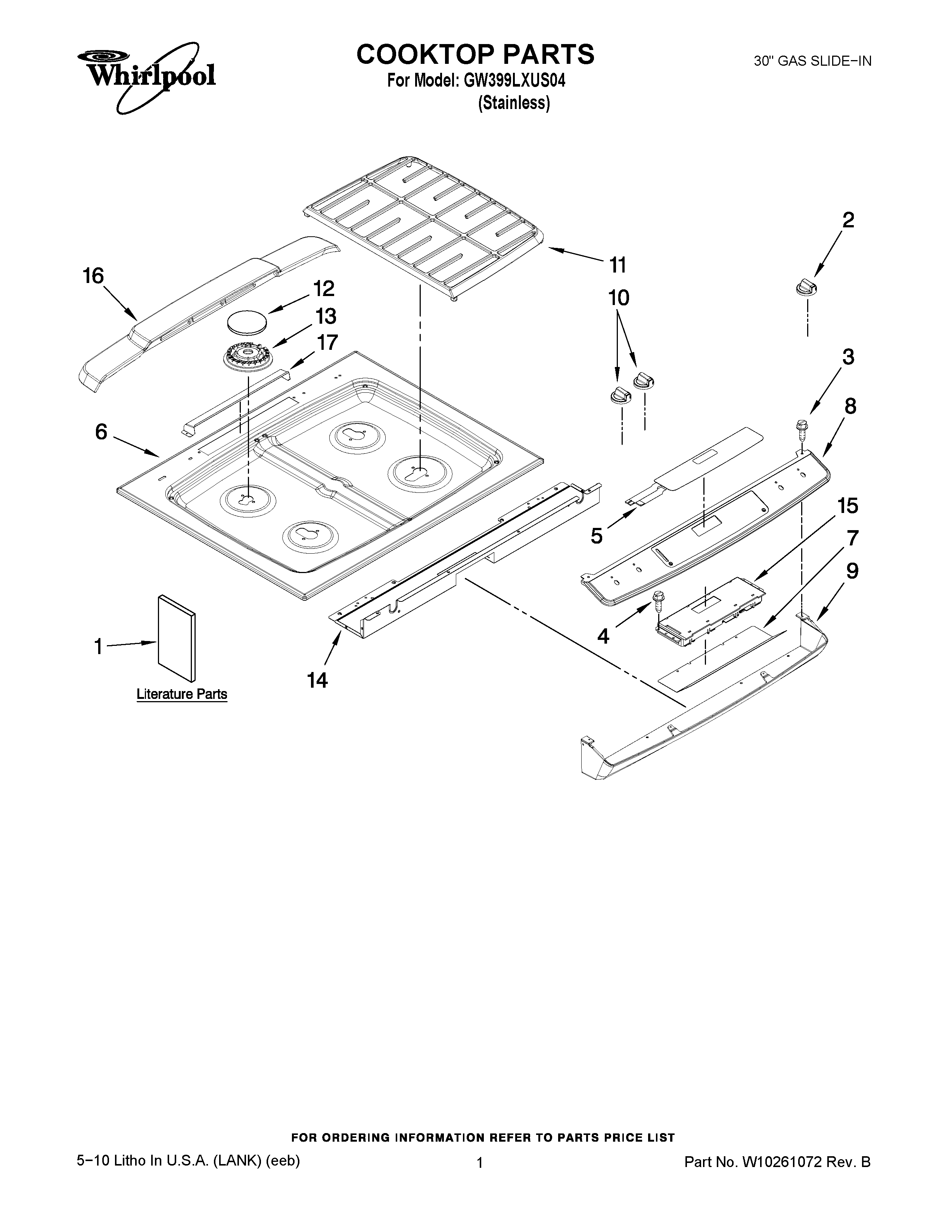

GW399LXUS04 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	Tech Sheet (French)
1	Tech Sheet (English)
1	OWNER S MANUAL (ENGLISH/FRENCH)
1	Instructions Installation
1	Anti-Tip Template (English/French)
1	Safer Cooking Tips (French)
1	Anti-Tip Template (English/Spanish)
2	Knob, AccuSimmer (Black)
3	Screw
4	Screw
5	WPW10207933 Whirlpool Membrane Switch
6	Cooktop (Black)
7	Shield, Control
8	PANEL, CONTROL
9	PANEL,CONTROL(LWR) (BLACK)
10	KNOB, VALVE (BLACK)
11	GRATE, BURNER (BLACK)
12	WPW10183371 Whirlpool Burner Cap
12	WPW10183370 Whirlpool Burner Cap
12	WPW10183369 Whirlpool Burner Cap
12	WPW10183368 Whirlpool Burner Cap
13	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
13	WPW10406878 Whirlpool Burner Base (16K)
13	WPW10406243 Whirlpool Burner Head Auxiliary 6K
14	SUPPORT, CONTROL PANEL
15	Control, (ERC)
16	Cover, Vent (Black)
17	Baffle, Vent Cover
