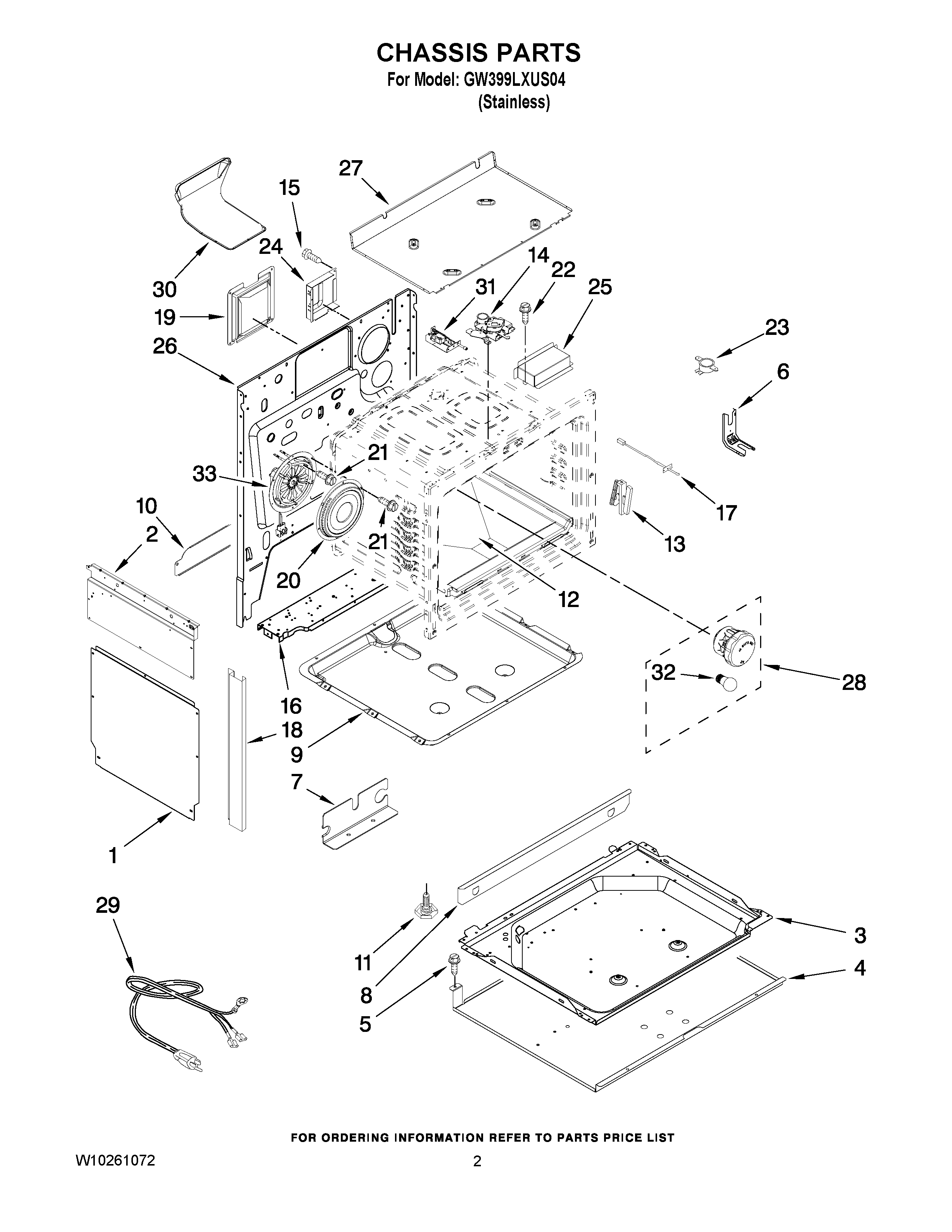

GW399LXUS04 02 – CHASSIS PARTSadmin2025-04-26T12:05:04+00:00GW399LXUS04 02 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, FLUE |
| NI | Insulation, Back |
| NI | Insulation, Wrap |
| NI | INSULATION, OVEN BOTTOM |
| NI | INSULATION, BOTTOM PLATE |
| 1 | Shield, Lower Side |
| 2 | Panel, Shield (Right) |
| 2 | Panel, Shield (Left) |
| 3 | RETAINER, INSUL (BOTTOM) |
| 4 | SHIELD, WARMER |
| 5 | Screw |
| 6 | BRACKET, ANTI TIP |
| 7 | BRACKET,PWR SUPPLY |
| 8 | Baffle, Oven Front |
| 9 | Pan, Burner |
| 10 | Extension, Back |
| 11 | Leg, Leveling |
| 12 | Bottom, Oven |
| 13 | HINGE |
| 14 | Latch Assembly |
| 15 | SCREW |
| 16 | Support |
| 17 | SENSOR, OVEN |
| 18 | Trim, Side |
| 19 | RETAINER, INSUL. |
| 20 | COVER,CONV.FAN |
| 21 | SCREW |
| 22 | SCREW |
| 23 | SWITCH, HI-LIMIT |
| 24 | Cover, Main Wire |
| 25 | COVER, DOOR LATCH |
| 26 | Main Back |
| 27 | BOTTOM, BURNER BOX |
| 28 | Light Assembly |
| 29 | INSULATOR, CORD |
| 30 | Box, Assy Vent |
| 31 | LIGHT SWITCH ASM. |
| 32 | BULB, LIGHT |
| 33 | FAN, CONVECTION |
