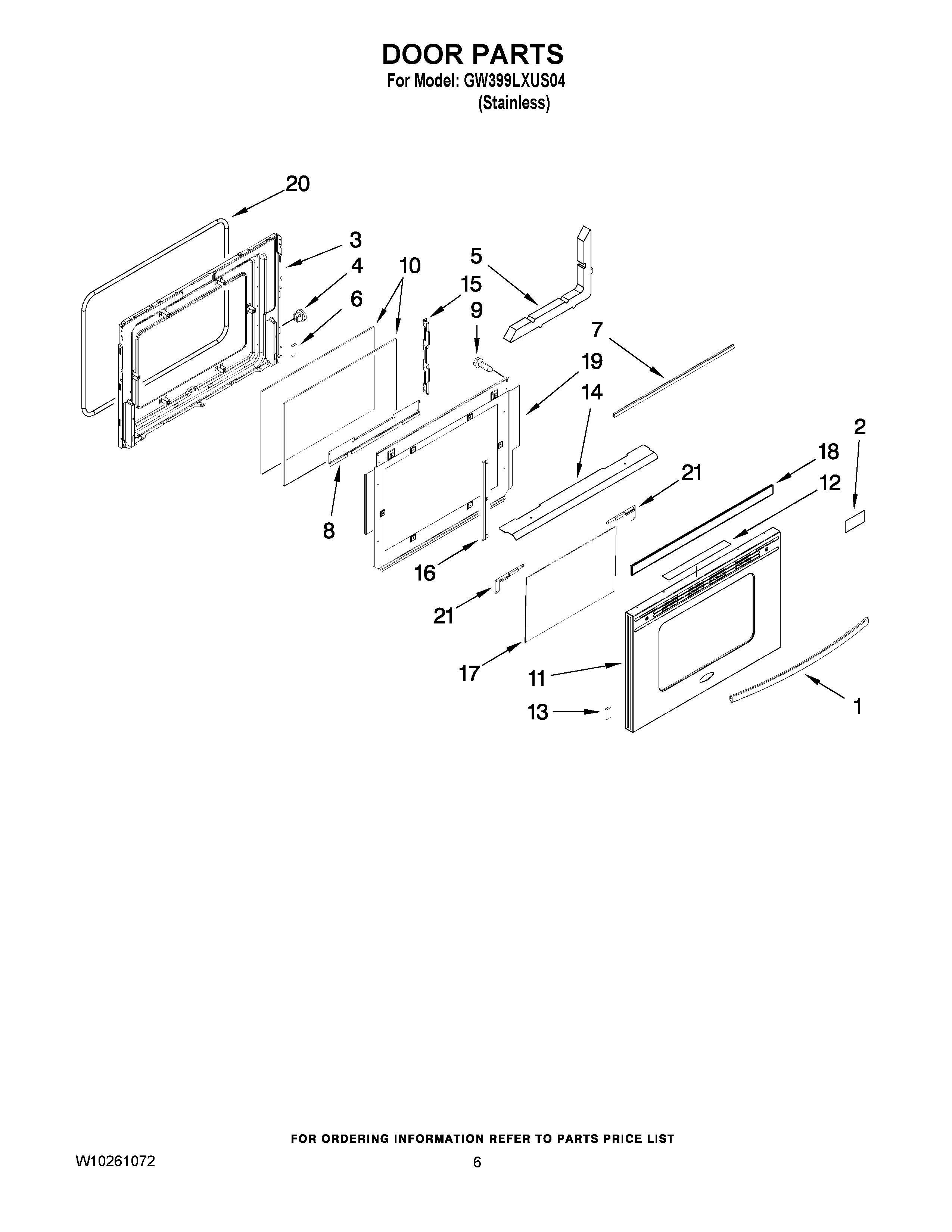

GW399LXUS04 04 – DOOR PARTS

Products

Position	Product
1	WPW10144883 Whirlpool Door Handle
2	NAMEPLATE
3	Lining, Door
4	NUT, SNAP
5	Insulation, Door
6	Spacer, Rubber
7	GASKET
8	RETAINER, GLASS (SIDE)
9	SCREW
10	GLASS, INNER
11	PANEL, OUTER DOOR (STAINLESS (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS))
12	Insulation, Foil
13	Clip, Glass (2)
14	Shield, Door
15	Retainer, Glass
16	Bracket, Glass
17	GLASS, DOOR (S.STEEL MDL ONLY)
17	GLASS. OUTER DOOR (S.STEEL MDL ONLY)
18	Insulation, Door
19	Baffel, Retainer
20	GASKT-DOOR OVEN
21	RETAINER, GLASS (RIGHT)
21	RETAINER, GLASS (LEFT)
