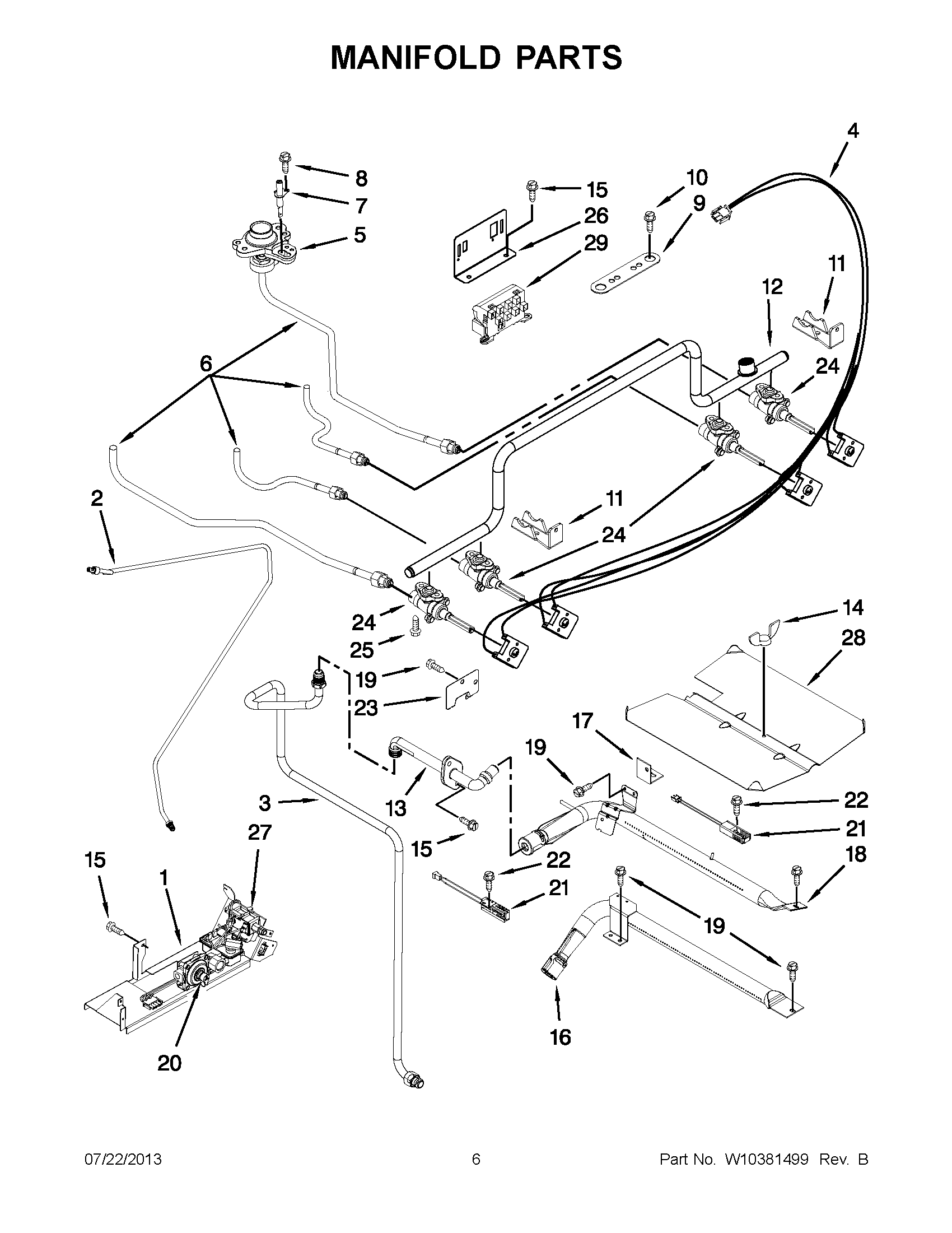

GW399LXUS05 03 – MANIFOLD PARTS

Products

Position	Product
NI	Spuds, LP Gas (Kit of 4)
NI	CABINET (NOT A SERVICEABLE PART)
1	COVER, BNR VALVE
2	Tubing, Gas Supply
3	Tube, Broil
4	Tube, Broil
5	HOLDER, ORIFICE (RF, 12K)
5	HOLDER, ORIFICE (LEFT FRONT, 16K)
5	HOLDER, ORIFICE (LR & RR, 5K)
5	HOLDER, ORIFICE (LF,RR-9.2K)
6	Tube, Burner (RR)
6	Tube, Burner (RF)
6	Tube, Burner (LF)
6	Tube, Burner (LR)
7	WPW10110378 Whirlpool Surface Igniter
8	WP8273062 Whirlpool Screw
9	Retainer, Base (4)
11	Bracket, Valve (4)
12	Pipe, Manifold
13	FITTING, BROILER
14	NUT, WING
15	SCREW
16	Burner, Bake
17	SUPPORT, BAKE BURNER
18	BURNER, BROILER
19	SCREW
20	Valve/Regulator
21	IGNITER (BAKE)
22	SCREW
23	COVER, IGNITOR WIRE
24	W10836481 Whirlpool Burner Valve
24	Valve, Burner (LF, RF, RR) (3)
25	SCREW
26	SUPPORT, SPARK MODULE
27	Valve, Safety
28	BAFFLE, BURNER BAKE
28	BAFFLE, BURNER BROIL
29	Spark Module
