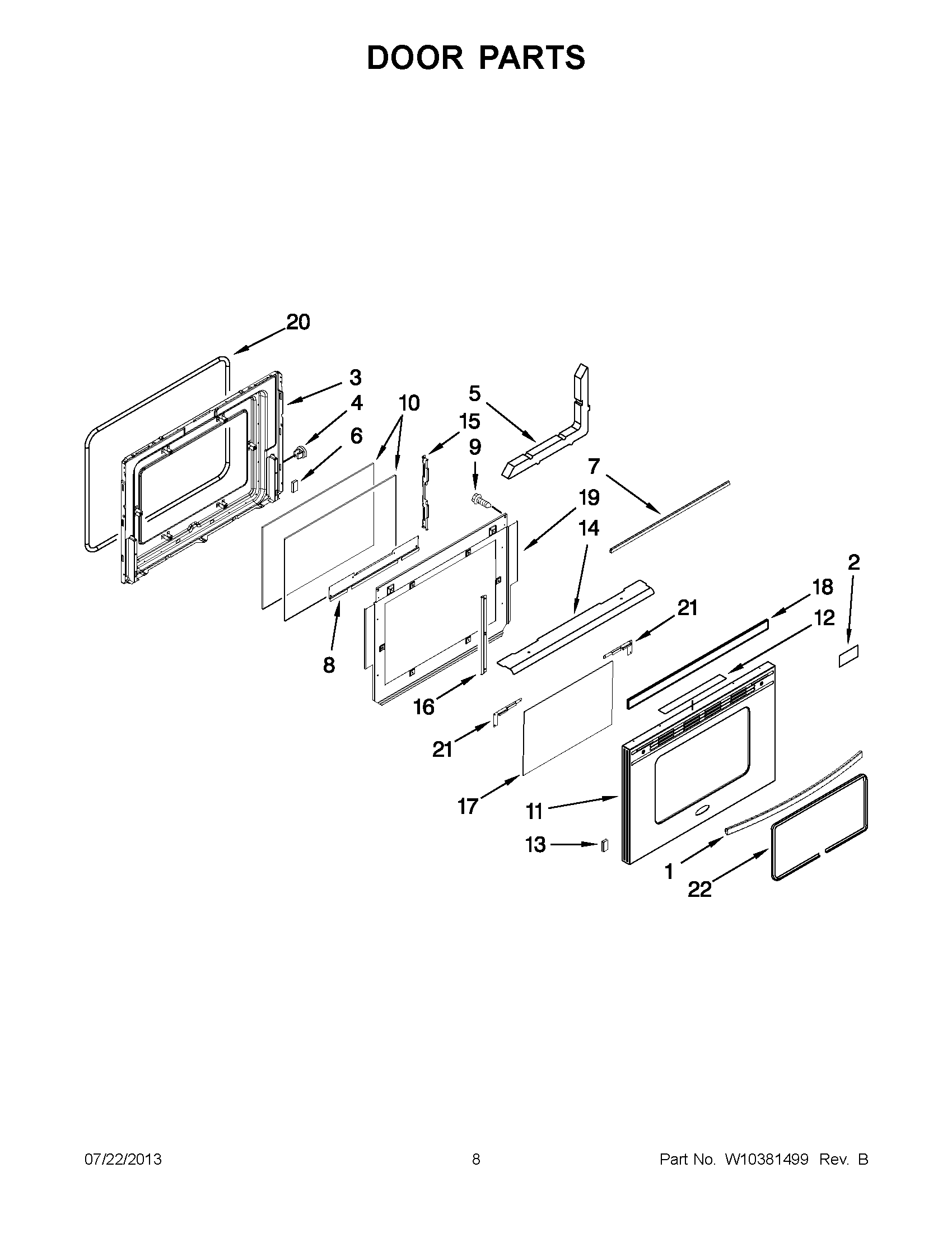

GW399LXUS05 04 – DOOR PARTSadmin2025-04-26T12:06:11+00:00GW399LXUS05 04 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WPW10144883 Whirlpool Door Handle |
| 2 | NAMEPLATE |
| 3 | Lining, Door |
| 4 | NUT, SNAP |
| 5 | Insulation, Door |
| 6 | Spacer, Rubber |
| 7 | GASKET |
| 8 | RETAINER, GLASS (SIDE) |
| 9 | SCREW |
| 10 | GLASS, INNER |
| 11 | PANEL, OUTER DOOR (STAINLESS (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS)) |
| 12 | Insulation, Foil |
| 13 | Clip, Glass (2) |
| 14 | Shield, Door |
| 15 | Retainer, Glass |
| 16 | Bracket, Glass |
| 17 | GLASS. OUTER DOOR (S.STEEL MDL ONLY) |
| 17 | GLASS, DOOR (S.STEEL MDL ONLY) |
| 18 | Insulation, Door |
| 19 | Baffel, Retainer |
| 20 | GASKT-DOOR OVEN |
| 21 | RETAINER, GLASS (RIGHT) |
| 21 | RETAINER, GLASS (LEFT) |
| 22 | Gasket, Window |
