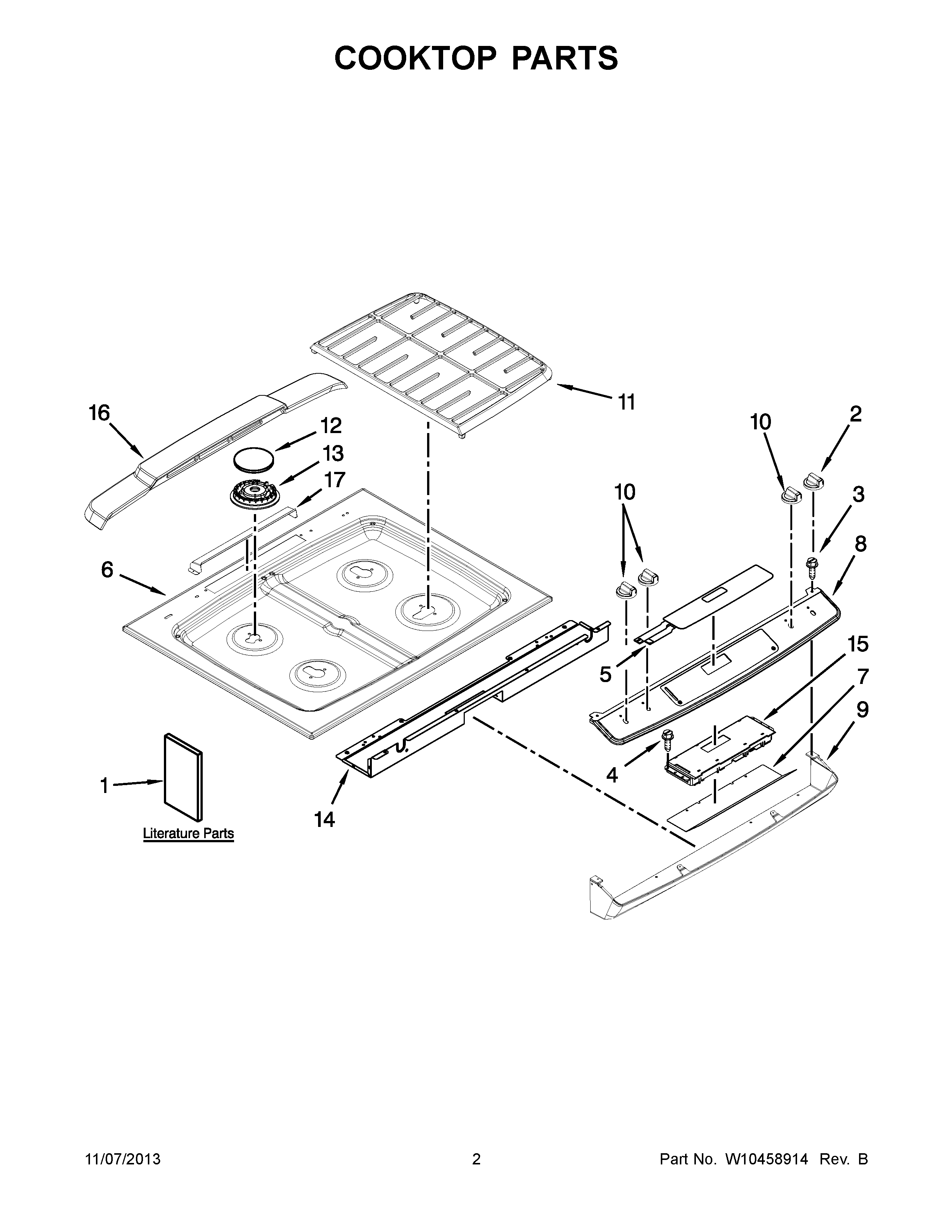

GW399LXUS06 02 – COOKTOP PARTS

GW399LXUS06 02 – COOKTOP PARTS

Written by

in

GW399LXUS06 02 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Installation Instructions
1Owners Manual
1Safer Cooking Tips (French)
2Knob, AccuSimmer (Black)
3Screw
4Screw
5WPW10207933 Whirlpool Membrane Switch
6TOP (BLACK)
7Shield, Control
8Panel, Cntl Shield (Black)
8PANEL, CONTROL
9PANEL,CONTROL(LWR) (BLACK)
10KNOB, VALVE (BLACK)
11GRATE, BURNER (BLACK)
12WPW10244447 Whirlpool Burner Cap
13WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
13WPW10406878 Whirlpool Burner Base (16K)
13WPW10406243 Whirlpool Burner Head Auxiliary 6K
14SUPPORT, CONTROL PANEL
15Control, (ERC)
16Cover, Vent (Black)
17Baffle, Vent Cover
