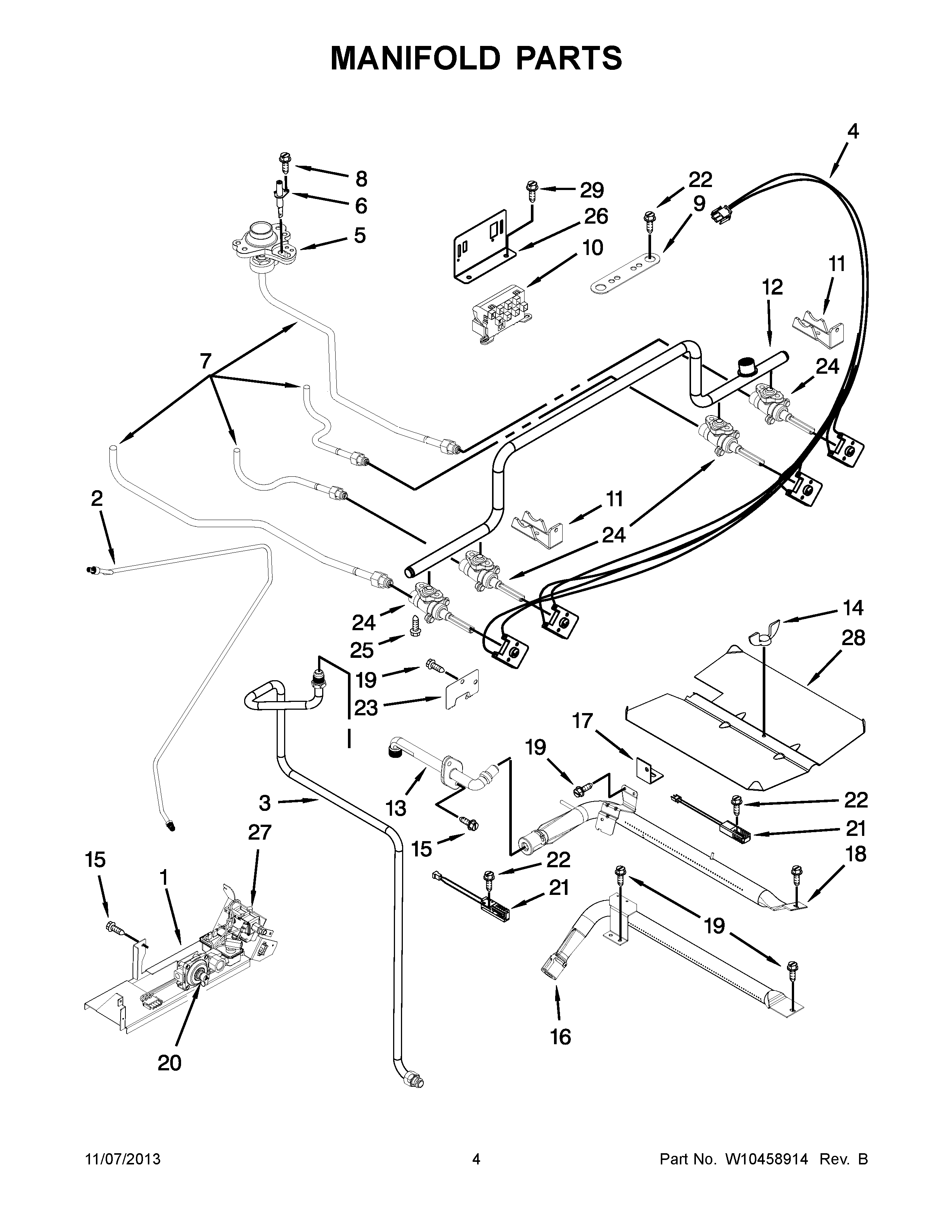

GW399LXUS06 03 – MANIFOLD PARTSadmin2025-04-26T12:04:22+00:00GW399LXUS06 03 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | CABINET (NOT A SERVICEABLE PART) |
| NI | Spuds, LP Gas (Kit of 4) |
| 1 | COVER, BNR VALVE |
| 2 | Tubing, Gas Supply |
| 3 | Tube, Broil |
| 4 | Tube, Broil |
| 5 | HOLDER, ORIFICE (RF, 12K) |
| 5 | HOLDER, ORIFICE (LF,RR-9.2K) |
| 5 | HOLDER, ORIFICE (LR & RR, 5K) |
| 5 | HOLDER, ORIFICE (LEFT FRONT, 16K) |
| 6 | WPW10110378 Whirlpool Surface Igniter |
| 7 | Tube, Burner (RR) |
| 7 | Tube, Burner (RF) |
| 7 | Tube, Burner (LR) |
| 7 | Tube, Burner (LF) |
| 8 | SCREW |
| 9 | Retainer, Base (4) |
| 10 | Spark Module |
| 11 | Bracket, Valve (4) |
| 12 | Pipe, Manifold |
| 13 | FITTING, BROILER |
| 14 | NUT, WING |
| 15 | W10185612 Whirlpool Screw |
| 16 | Burner, Bake |
| 17 | SUPPORT, BAKE BURNER |
| 18 | BURNER, BROILER |
| 19 | SCREW |
| 20 | Valve/Regulator |
| 21 | IGNITER (BAKE) |
| 22 | SCREW |
| 23 | COVER, IGNITOR WIRE |
| 24 | WPW10290838 Whirlpool Burner Valve |
| 24 | W10836481 Whirlpool Burner Valve |
| 25 | SCREW |
| 26 | SUPPORT, SPARK MODULE |
| 27 | Valve, Safety |
| 28 | BAFFLE, BURNER BROIL |
| 28 | BAFFLE, BURNER BAKE |
| 29 | SCREW (BLACK) |
