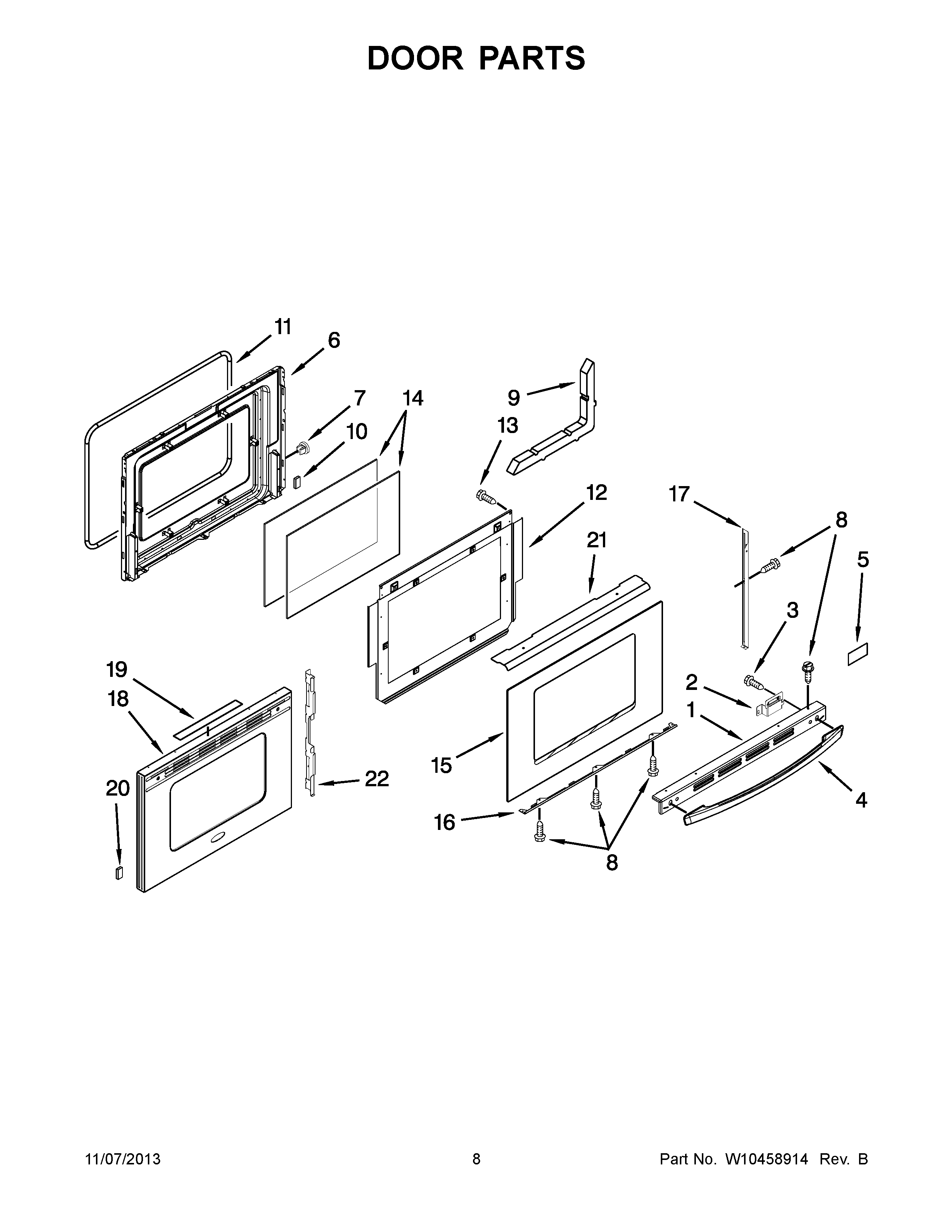

GW399LXUS06 05 – DOOR PARTS

Products

PositionProduct
1Trim, Door Top
2Bracket, Handle (Right)
2Bracket, Handle (Left)
3Screw
4WPW10144883 Whirlpool Door Handle
4W10118431 Whirlpool Door Handle
5W11178521 Whirlpool Dishwasher Nameplate
6Lining, Door
7NUT, SNAP
8SCREW, PANEL (STAINLESS)
8SCREW (BLACK)
9Insulation, Door
10Spacer, Rubber
11GASKT-DOOR OVEN
12Baffel, Retainer
13SCREW
14GLASS, INNER
15PANEL, OUTER DOOR (BLACK)
16Trim, Door Bottom
17Trim, Door Side (Left)
17Trim, Door Side (Right)
18PANEL, OVEN DOOR (STAINLESS)
19Insulation, Foil
20Clip, Glass (2)
21Shield, Door
22Retainer, Glass
