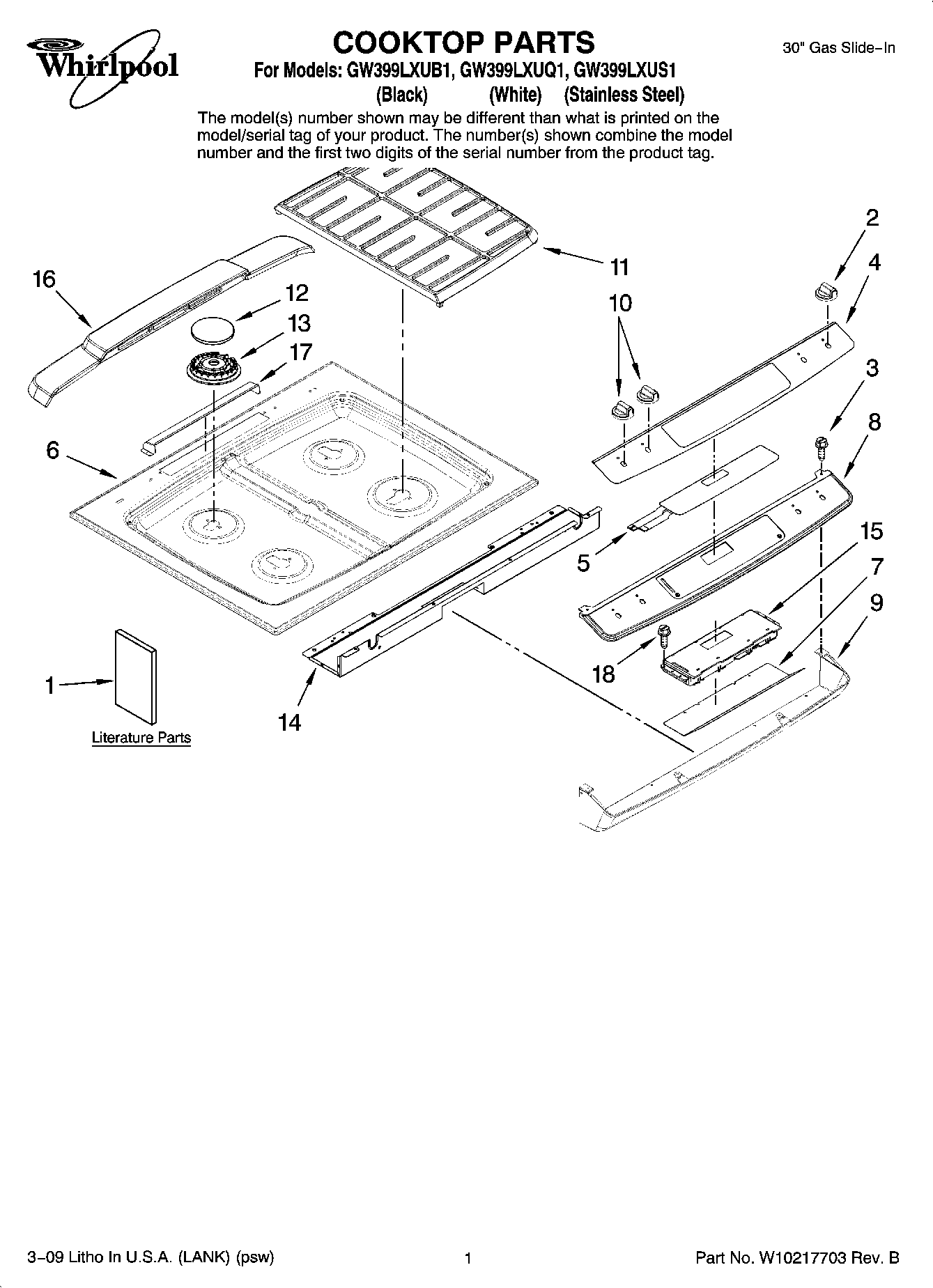

GW399LXUS1 01 – COOKTOP PARTSadmin2025-04-26T12:05:41+00:00GW399LXUS1 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | SAFER COOKING TIPS (ENGLISH |
| 1 | Safer Cooking Tips (French) |
| 1 | Installation Instructions |
| 1 | Owners Manual |
| 2 | W10177201 Whirlpool Knob |
| 2 | W10177198 Whirlpool Knob |
| 3 | 74003640 Whirlpool Oven Screw |
| 4 | OVERLAY (SS ONLY) |
| 5 | Switch, Membrane (Black) |
| 5 | SWITCH, MEMBRANE (WHITE) |
| 6 | Cooktop (Black) |
| 6 | Cooktop (White) |
| 7 | Shield, Control |
| 8 | Panel, Control (Black) |
| 8 | Panel, Control (S.Steel) |
| 8 | Panel, Control |
| 9 | Panel, Control (LWR) (Black) |
| 9 | Panel, Control (LWR) (White) |
| 10 | WP7733P526-60 Whirlpool Knob |
| 10 | W10177197 Whirlpool Knob |
| 11 | Grate, Burner (2) (Gray) |
| 11 | Grate, Burner (2) (Black) |
| 12 | Cap, Burner (RF) (Gray) |
| 12 | 7504P294-60 Whirlpool Burner Cap |
| 12 | 7504P295-60 Whirlpool Burner Cap |
| 12 | WP7504P298-60 Whirlpool Range Burner Cap |
| 12 | WP7504P299-60 Whirlpool Burner Cap |
| 12 | WP7504P300-60 Whirlpool Burner Cap |
| 13 | WPW10406878 Whirlpool Burner Base (16K) |
| 13 | WPW10406797 Whirlpool Range Burner Base (12K & 9.2K) |
| 13 | WPW10406243 Whirlpool Burner Head Auxiliary 6K |
| 14 | Support, Control Panel |
| 15 | Control, (ERC) |
| 16 | Cover, Vent (Black) |
| 16 | Cover, Vent (Gray) |
| 17 | Baffle, Vent Cover |
| 18 | WP59002061 Whirlpool Microwave Screw |
