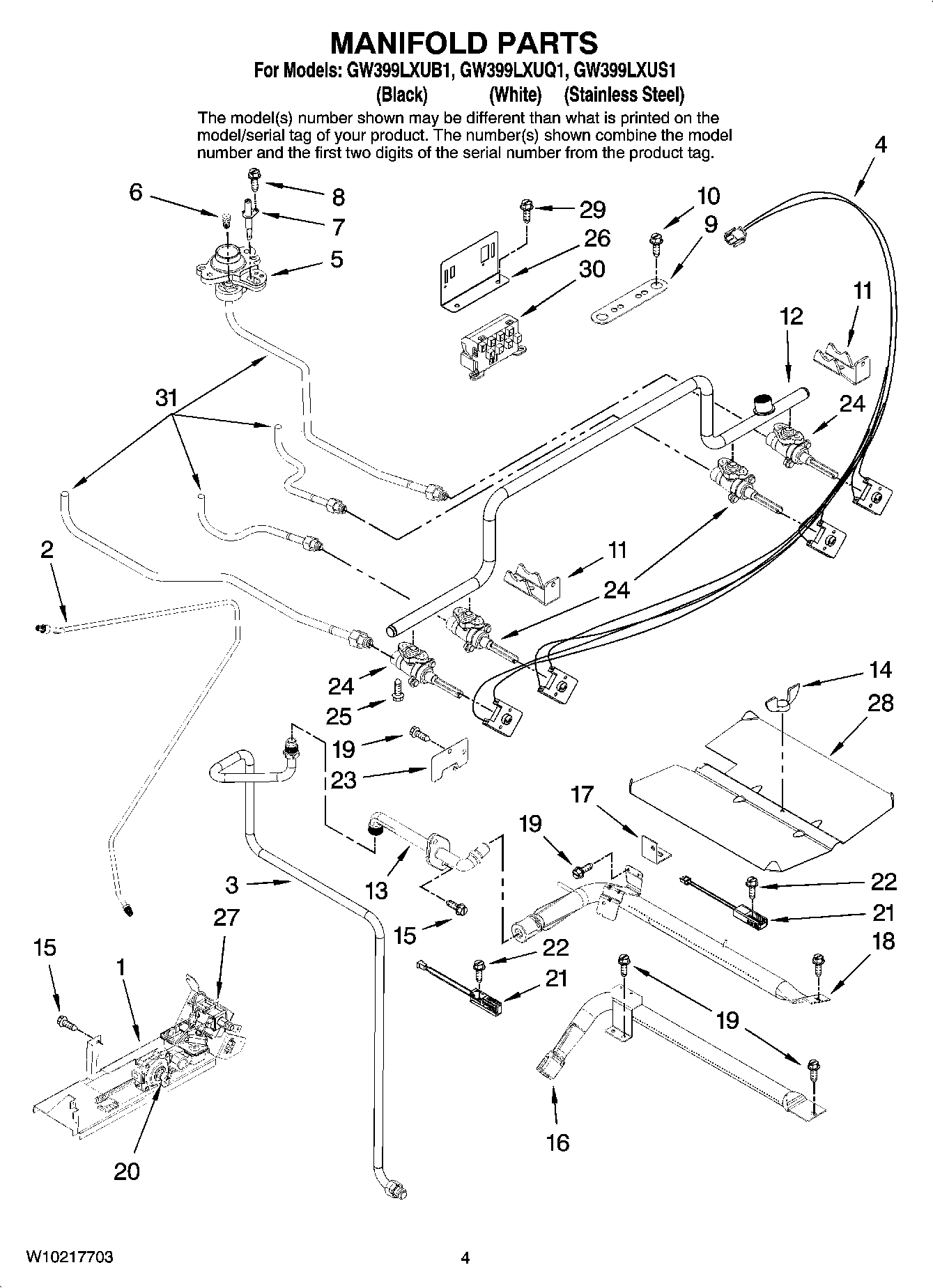

GW399LXUS1 03 – MANIFOLD PARTSadmin2025-04-26T12:06:17+00:00GW399LXUS1 03 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| Following Parts Not Illustrated |
| Spuds, LP Gas (Kit of 4) |
| 1 | Cover, Bnr Valve |
| 2 | Tubing, Gas Supply |
| 3 | Tube, Broil |
| 4 | Harness, Valve Includes Switches |
| 5 | 74010961 Whirlpool Oven Holder |
| 5 | WPW10407681 Whirlpool Orifice Holder |
| 5 | WPW10407680 Whirlpool Orifice Holder |
| 5 | Orifice, Holder (9.2K,RR) |
| 6 | W10156136 Whirlpool Orifice |
| 6 | W10156836 Whirlpool Orifice |
| 6 | Orifice (LR) |
| 7 | WP74009958 Whirlpool Spark Electrode Assembly |
| 8 | WP8273062 Whirlpool Screw |
| 9 | Retainer, Base (4) |
| 10 | SCREW |
| 11 | Bracket, Valve (4) |
| 12 | W10177097 Whirlpool Dishwasher Manifold |
| 13 | WP74010901 Whirlpool Broil Fitting Assembly |
| 14 | NUT, WING |
| 15 | Screw |
| 16 | Burner, Bake |
| 17 | Support, Bake Bnr |
| 18 | Burner, Broil |
| 19 | WP7101P434-60 Whirlpool Screw |
| 20 | WP74006035 Whirlpool Regulator |
| 21 | 74007498 Whirlpool Range Flat Igniter |
| 22 | Screw |
| 23 | COVER, IGNITOR WIRE |
| 24 | WPW10290838 Whirlpool Burner Valve |
| 24 | W10836481 Whirlpool Burner Valve |
| 25 | SCREW |
| 26 | SUPPORT, SPARK MODULE |
| 27 | WP7501P232-60 Whirlpool Valve |
| 28 | Baffle, Bake (Bake) |
| 28 | Baffle, Bake (Broil) |
| 29 | SCREW |
| 30 | 8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module |
| 31 | Tube, Burner (LR) |
| 31 | TUBE-BRNR |
| 31 | Tube, Burner (RR) |
| 31 | Tube, Burner (LF) |
